Brembo Caliper Bolts - Camaro5 Chevy Camaro Forum / Camaro ZL1, SS and V6 Forums

Zeus95 · 07-30-2015, 07:44 AM

Took my Calipers apart to have them Powder Coated. Stripped the head off one of the 4 Star Headed bolts. OOPPSS !! Then I find out my dust boots are all torn up and burnt. So I ordered new boots and seals. But I can't find a replacement bolt. Called GM and they say the 4 bolts come with the caliper as a kit. can anyone help ? Thanks all !

Synner · 07-30-2015, 08:28 AM

GM was dropped on their head as a child.
4 ea 11570788 front
4 ea 11515781 rear

Zeus95 · 07-30-2015, 10:16 AM

Quote:

Originally Posted by Synner

GM was dropped on their head as a child.
4 ea 11570788 front
4 ea 11515781 rear

thank you !!!

Zeus95 · 07-30-2015, 10:20 AM

I just looked it up, that's not the one I need :(

JusticePete · 07-30-2015, 10:57 AM

Quote:

Originally Posted by Zeus95

I just looked it up, that's not the one I need :(

Are you asking for a banjo bolt part number for the brake line?

bannonm · 07-30-2015, 02:27 PM

Quote:

Originally Posted by JusticePete

Are you asking for a banjo bolt part number for the brake line?

He's looking for the bolts that hold the caliper halves together. He split them for powder coating.

Zeus95 · 07-30-2015, 02:31 PM

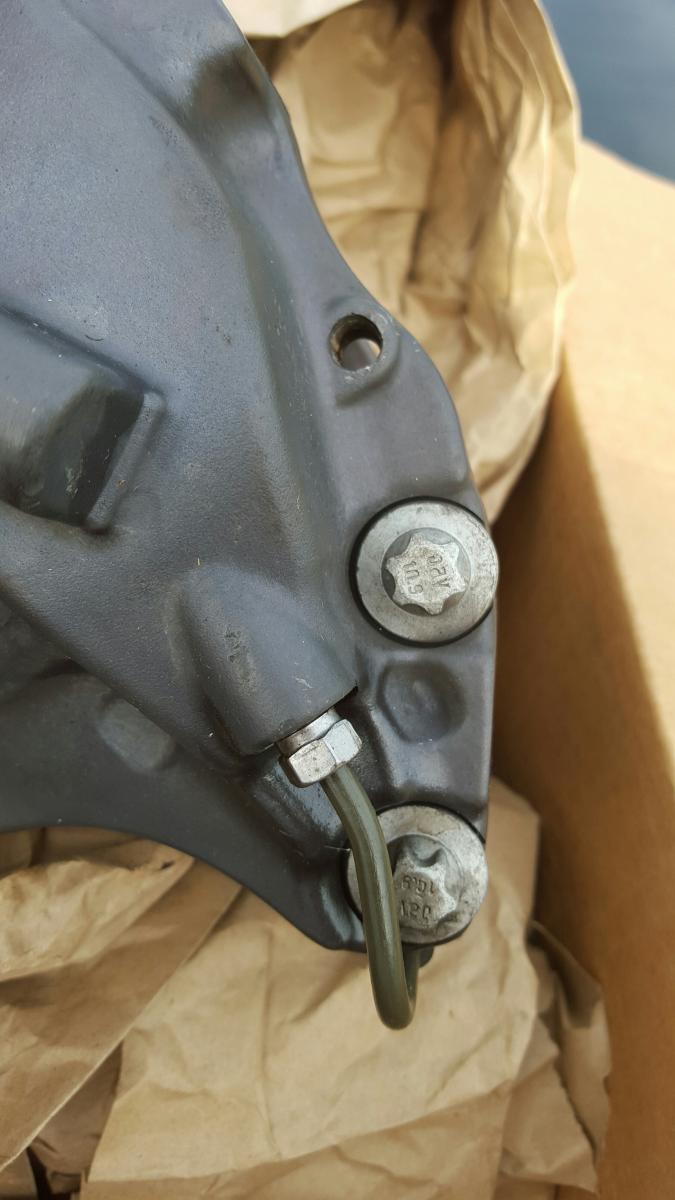

Not sure Justice Pete. Each Caliper is actually 2 pieces. they are held together by 4 bolts. They have star heads that face to the inside of the car.

Zeus95 · 07-30-2015, 02:36 PM

2nd Pic

Destructo09 · 07-30-2015, 03:21 PM

That might be a tough one to find, i'm sure GM buys the calipers from Brembo already put together so I doubt they stock those bolts separately.

Synner · 07-30-2015, 07:18 PM

Pull the bolt and measure the threads, you should be able to get a flange bolt of the same thread size/pitch. The moral of the story is you don't need to split the calipers to powdercoat them, thats why I thought you were talking about the standard mounting bolt.

Zeus95 · 07-31-2015, 07:42 AM

I guess my powder coater was being too cautious. But I did find my dust caps were all torn and burnt, so I'm glad I took them apart and found the problem.

Thanks guys !

CAP'N B · 08-01-2015, 10:54 PM

Quote:

Originally Posted by JusticePete

Are you asking for a banjo bolt part number for the brake line?

I'm doing the CTSV brake upgrade on the front, and I broke a banjo bolt, I could use the part number., Actually I need the bolts by tueday or it's cancel fest

Zeus95 · 08-04-2015, 07:12 AM

Quote:

Originally Posted by CAP'N B

I'm doing the CTSV brake upgrade on the front, and I broke a banjo bolt, I could use the part number., Actually I need the bolts by tueday or it's cancel fest

I'm still looking, I'm gonna have to measure and see if I can find a replacement. can't believe that won't/Don't sell these separate.

2011WhiteSS · 10-27-2015, 03:19 PM

Update?
Did you find any of these bolts?

Sent from my iPhone using Tapatalk

07-30-2015, 07:44 AM	#1
Zeus95 Drives: IOM 2010 - 2SS/RS Join Date: Nov 2008 Location: Oak Forest - ILL Posts: 1,124 View My Garage	Brembo Caliper Bolts Took my Calipers apart to have them Powder Coated. Stripped the head off one of the 4 Star Headed bolts. OOPPSS !! Then I find out my dust boots are all torn up and burnt. So I ordered new boots and seals. But I can't find a replacement bolt. Called GM and they say the 4 bolts come with the caliper as a kit. can anyone help ? Thanks all ! __________________ 2010 2SS/RS IOM Upgrades: Fastlane CAI / SLP II Loudmouth axle back / V Max Ported TB / Kook's Step Long Tube Headers / High flow cats / Straightline Tune / BMR front & rear sway bars / Hotchkin End Links / Hurst Short Throw. LG ZR28 Wheels 1 of 2 sets made. Pfadt trailing arms / Diff Bushings & Sub Frame bushings / 1LE Axle & Hubs.

07-30-2015, 10:20 AM	#4
Zeus95 Drives: IOM 2010 - 2SS/RS Join Date: Nov 2008 Location: Oak Forest - ILL Posts: 1,124 View My Garage	I just looked it up, that's not the one I need :( __________________ 2010 2SS/RS IOM Upgrades: Fastlane CAI / SLP II Loudmouth axle back / V Max Ported TB / Kook's Step Long Tube Headers / High flow cats / Straightline Tune / BMR front & rear sway bars / Hotchkin End Links / Hurst Short Throw. LG ZR28 Wheels 1 of 2 sets made. Pfadt trailing arms / Diff Bushings & Sub Frame bushings / 1LE Axle & Hubs.

07-30-2015, 02:31 PM	#7
Zeus95 Drives: IOM 2010 - 2SS/RS Join Date: Nov 2008 Location: Oak Forest - ILL Posts: 1,124 View My Garage	Not sure Justice Pete. Each Caliper is actually 2 pieces. they are held together by 4 bolts. They have star heads that face to the inside of the car. Attached Images __________________ 2010 2SS/RS IOM Upgrades: Fastlane CAI / SLP II Loudmouth axle back / V Max Ported TB / Kook's Step Long Tube Headers / High flow cats / Straightline Tune / BMR front & rear sway bars / Hotchkin End Links / Hurst Short Throw. LG ZR28 Wheels 1 of 2 sets made. Pfadt trailing arms / Diff Bushings & Sub Frame bushings / 1LE Axle & Hubs.

07-30-2015, 02:36 PM	#8
Zeus95 Drives: IOM 2010 - 2SS/RS Join Date: Nov 2008 Location: Oak Forest - ILL Posts: 1,124 View My Garage	2nd Pic Attached Images __________________ 2010 2SS/RS IOM Upgrades: Fastlane CAI / SLP II Loudmouth axle back / V Max Ported TB / Kook's Step Long Tube Headers / High flow cats / Straightline Tune / BMR front & rear sway bars / Hotchkin End Links / Hurst Short Throw. LG ZR28 Wheels 1 of 2 sets made. Pfadt trailing arms / Diff Bushings & Sub Frame bushings / 1LE Axle & Hubs.

07-30-2015, 03:21 PM	#9
Destructo09 Drives: 2010 CGM Camaro 2SS/LS3 Join Date: Oct 2013 Location: Raleigh-Durham Posts: 1,409	That might be a tough one to find, i'm sure GM buys the calipers from Brembo already put together so I doubt they stock those bolts separately. __________________ 2010 2SS BMR 1" Springs Koni Orange struts/shocks 1LE rear sway bar SRP Racing Pedals Hurst Billet short shifter Square tire/wheel setup Elite Engineering Catch Can Stainless Power longtubes/highflow cats K&N Typhoon CAI RPM Motorsports of Garner, NC dyno tune (421 RWHP)

07-30-2015, 08:28 AM	#2
Synner Drives: cars Join Date: May 2011 Location: Oversneeze Posts: 4,542	GM was dropped on their head as a child. 4 ea 11570788 front 4 ea 11515781 rear

07-30-2015, 07:18 PM	#10
Synner Drives: cars Join Date: May 2011 Location: Oversneeze Posts: 4,542	Pull the bolt and measure the threads, you should be able to get a flange bolt of the same thread size/pitch. The moral of the story is you don't need to split the calipers to powdercoat them, thats why I thought you were talking about the standard mounting bolt.

07-31-2015, 07:42 AM	#11
Zeus95 Drives: IOM 2010 - 2SS/RS Join Date: Nov 2008 Location: Oak Forest - ILL Posts: 1,124 View My Garage	I guess my powder coater was being too cautious. But I did find my dust caps were all torn and burnt, so I'm glad I took them apart and found the problem. Thanks guys ! __________________ 2010 2SS/RS IOM Upgrades: Fastlane CAI / SLP II Loudmouth axle back / V Max Ported TB / Kook's Step Long Tube Headers / High flow cats / Straightline Tune / BMR front & rear sway bars / Hotchkin End Links / Hurst Short Throw. LG ZR28 Wheels 1 of 2 sets made. Pfadt trailing arms / Diff Bushings & Sub Frame bushings / 1LE Axle & Hubs.

10-27-2015, 03:19 PM	#14
2011WhiteSS Drives: 2011 White 2SS Join Date: May 2011 Location: Ohio Posts: 408	Update? Did you find any of these bolts? Sent from my iPhone using Tapatalk
