Old 03-14-2023, 10:49 AM   #1
SFR7771
Drag and Drive is Life

SFR7771's Avatar

Drives: 2010 Camaro 2SS RS A6 LS3 Whipple
Join Date: Aug 2021
Location: TX
Posts: 143
AGP Twins 450's Camaro 5 SS Dual/ Triple Fuel Pump plus flex

So I have looked at a lot of DIY on fuel systems so I'm going to share my install... This is the AGP twins 450's set up from AGP turbos.

So I started by cutting a hole under my seat. Trust me, I didn't want to, but I have had the rear end out twice. I also do drag and drive, so wanted quick access to the pump. The instruction is not as clear as id like them to be and they don't send them in the box...



Bare with me ill update as i go along!!!
Step 1 cut hole...

2 Take out old pump and remove sending unit. (ring is tight you can use a large screw driver and a big hammers)

3 Install the sending unit in top two holes very small print on pump tells you (not in instructions)

4 Now install pump and install cross over tube on bottom side of pump that you removed on stock pump.

5 Reinstall ring its hard but work your way around it until it seats tight.



Now the fun begins
__________________
My build link... https://www.camaro5.com/forums/showt...4#post11077544

2010 2SS/RS/ Mods, Whipple, 1000cc injector, 102MM TB, Innovation West 10% OD pulley set up 8 rib, AGP twin 450 fuel system w flex on E85, CAI K&N, LT with OR Cats aka no catalytic converters, Coils and wires, 3" exhaust with mufflers, Oil catch can, 2015 ZL1 9.9 3.23 ratio, BMR upper Lower control arms, 15"conversion, BMR Anti Roll Bar 315/60/15 ET street slicks

1972 El Camino SS 565BBC 950HP, All TRZ suspension

Last edited by SFR7771; 03-14-2023 at 12:17 PM.
SFR7771 is offline   Reply With Quote
Old 03-14-2023, 10:57 AM   #2
SFR7771
Drag and Drive is Life

SFR7771's Avatar

Drives: 2010 Camaro 2SS RS A6 LS3 Whipple
Join Date: Aug 2021
Location: TX
Posts: 143
Name:  570E8A1C-FA73-444B-AA82-6651A9DE6EFC.jpg
Views: 560
Size:  146.7 KB

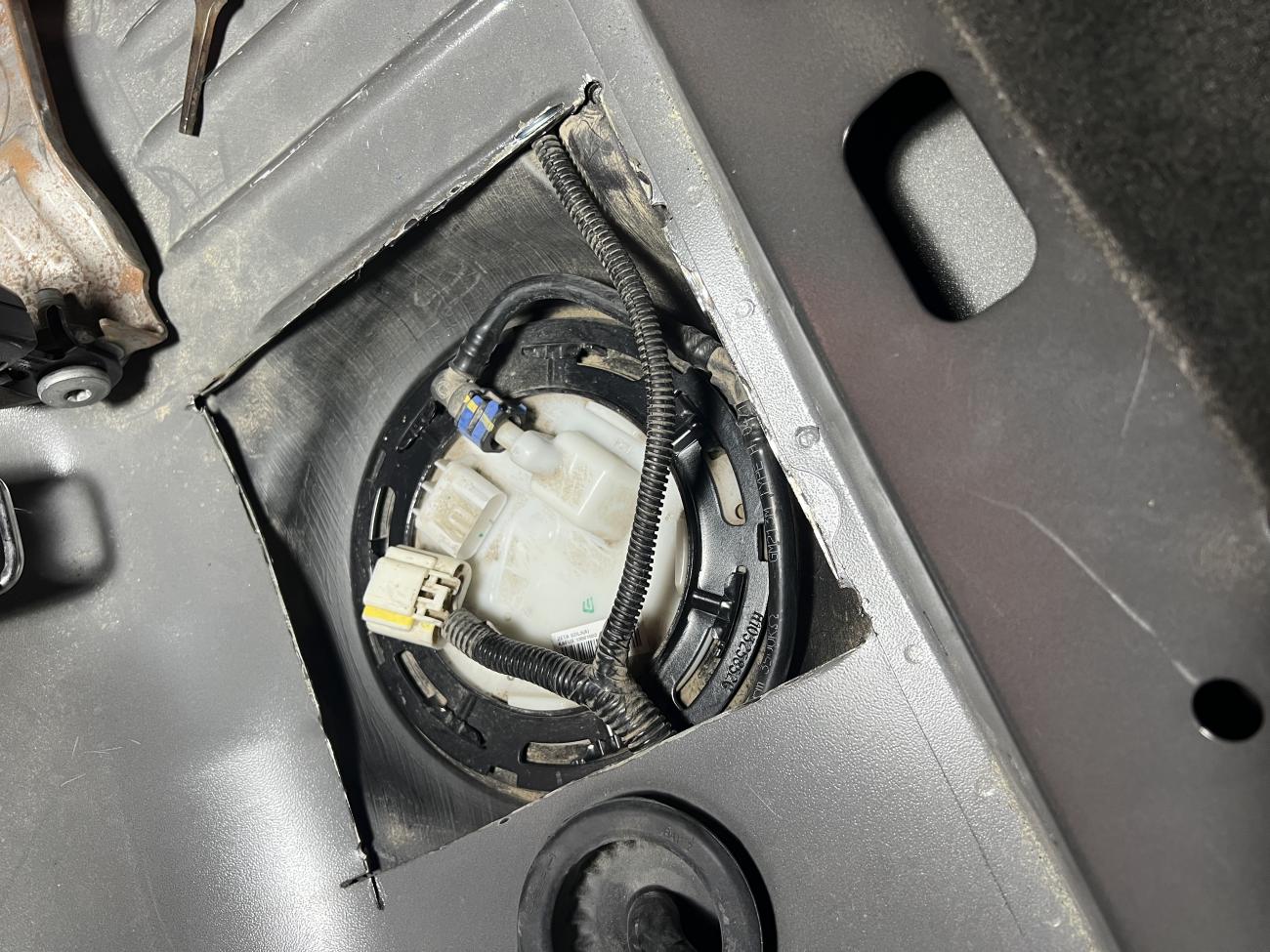

Name:  E55990DD-27BE-4724-9B74-EAB761429FD0.jpg
Views: 594
Size:  203.9 KB

Name:  71AA344B-88CF-4A05-90C5-788BD7589808.jpg
Views: 553
Size:  180.1 KB
__________________
My build link... https://www.camaro5.com/forums/showt...4#post11077544

2010 2SS/RS/ Mods, Whipple, 1000cc injector, 102MM TB, Innovation West 10% OD pulley set up 8 rib, AGP twin 450 fuel system w flex on E85, CAI K&N, LT with OR Cats aka no catalytic converters, Coils and wires, 3" exhaust with mufflers, Oil catch can, 2015 ZL1 9.9 3.23 ratio, BMR upper Lower control arms, 15"conversion, BMR Anti Roll Bar 315/60/15 ET street slicks

1972 El Camino SS 565BBC 950HP, All TRZ suspension
SFR7771 is offline   Reply With Quote
Old 03-14-2023, 12:10 PM   #3
SFR7771
Drag and Drive is Life

SFR7771's Avatar

Drives: 2010 Camaro 2SS RS A6 LS3 Whipple
Join Date: Aug 2021
Location: TX
Posts: 143
6 Now that ring is installed the return line is tight (this is the feed line from stock unit)

7 Loosen the tank bolt and bend the line up under the car it is still tight but will work.

8 Now tape up the ends of your fuel line to send it through the frame. (this get interesting you will need two people to do this part it says 5 min but more like 45min)
__________________
My build link... https://www.camaro5.com/forums/showt...4#post11077544

2010 2SS/RS/ Mods, Whipple, 1000cc injector, 102MM TB, Innovation West 10% OD pulley set up 8 rib, AGP twin 450 fuel system w flex on E85, CAI K&N, LT with OR Cats aka no catalytic converters, Coils and wires, 3" exhaust with mufflers, Oil catch can, 2015 ZL1 9.9 3.23 ratio, BMR upper Lower control arms, 15"conversion, BMR Anti Roll Bar 315/60/15 ET street slicks

1972 El Camino SS 565BBC 950HP, All TRZ suspension
SFR7771 is offline   Reply With Quote
Old 03-14-2023, 12:13 PM   #4
SFR7771
Drag and Drive is Life

SFR7771's Avatar

Drives: 2010 Camaro 2SS RS A6 LS3 Whipple
Join Date: Aug 2021
Location: TX
Posts: 143
New pump installed

Name:  4F71DEFC-E971-493D-A7ED-BA6287C866F7.jpg
Views: 588
Size:  226.3 KB
__________________
My build link... https://www.camaro5.com/forums/showt...4#post11077544

2010 2SS/RS/ Mods, Whipple, 1000cc injector, 102MM TB, Innovation West 10% OD pulley set up 8 rib, AGP twin 450 fuel system w flex on E85, CAI K&N, LT with OR Cats aka no catalytic converters, Coils and wires, 3" exhaust with mufflers, Oil catch can, 2015 ZL1 9.9 3.23 ratio, BMR upper Lower control arms, 15"conversion, BMR Anti Roll Bar 315/60/15 ET street slicks

1972 El Camino SS 565BBC 950HP, All TRZ suspension
SFR7771 is offline   Reply With Quote
Old 03-14-2023, 02:06 PM   #5
Oxtar41


Oxtar41's Avatar

Drives: 700 rwhp 2010 SS
Join Date: Sep 2010
Location: Garage..
Posts: 803
Just a safety tip: Use a brass punch instead of a screw driver or any other metal punch etc. All it takes is one spark from the screw driver slipping off the metal ring and you're gonna have a bad time. I just replaced my fuel pump o-ring as it was leaking and if I would have used a regular screw driver I for sure woulda had a bad time as much as my brass punch slipped off when tightening the lock ring down.
__________________
Oxtar41 is offline   Reply With Quote
Old 03-14-2023, 03:07 PM   #6
SFR7771
Drag and Drive is Life

SFR7771's Avatar

Drives: 2010 Camaro 2SS RS A6 LS3 Whipple
Join Date: Aug 2021
Location: TX
Posts: 143
Good point my mind was wondering the whole time more when using a die grinder to cut my hole out....



Quote:
Originally Posted by Oxtar41 View Post
Just a safety tip: Use a brass punch instead of a screw driver or any other metal punch etc. All it takes is one spark from the screw driver slipping off the metal ring and you're gonna have a bad time. I just replaced my fuel pump o-ring as it was leaking and if I would have used a regular screw driver I for sure woulda had a bad time as much as my brass punch slipped off when tightening the lock ring down.
__________________
My build link... https://www.camaro5.com/forums/showt...4#post11077544

2010 2SS/RS/ Mods, Whipple, 1000cc injector, 102MM TB, Innovation West 10% OD pulley set up 8 rib, AGP twin 450 fuel system w flex on E85, CAI K&N, LT with OR Cats aka no catalytic converters, Coils and wires, 3" exhaust with mufflers, Oil catch can, 2015 ZL1 9.9 3.23 ratio, BMR upper Lower control arms, 15"conversion, BMR Anti Roll Bar 315/60/15 ET street slicks

1972 El Camino SS 565BBC 950HP, All TRZ suspension
SFR7771 is offline   Reply With Quote
Old 03-14-2023, 05:24 PM   #7
Oxtar41


Oxtar41's Avatar

Drives: 700 rwhp 2010 SS
Join Date: Sep 2010
Location: Garage..
Posts: 803
Quote:
Originally Posted by SFR7771 View Post
Good point my mind was wondering the whole time more when using a die grinder to cut my hole out....

Same lmao, especially because the top of my tank was wet with fuel from the leaking o-ring. I sent it though, I did have a fire extinguisher in the car ready to go if needed lol
__________________
Oxtar41 is offline   Reply With Quote
Old 03-14-2023, 10:00 PM   #8
SFR7771
Drag and Drive is Life

SFR7771's Avatar

Drives: 2010 Camaro 2SS RS A6 LS3 Whipple
Join Date: Aug 2021
Location: TX
Posts: 143
Fuel line thru frame and hole by compressor this was supposed to be 5 min job! And modified return line also had to mod the frame up front…

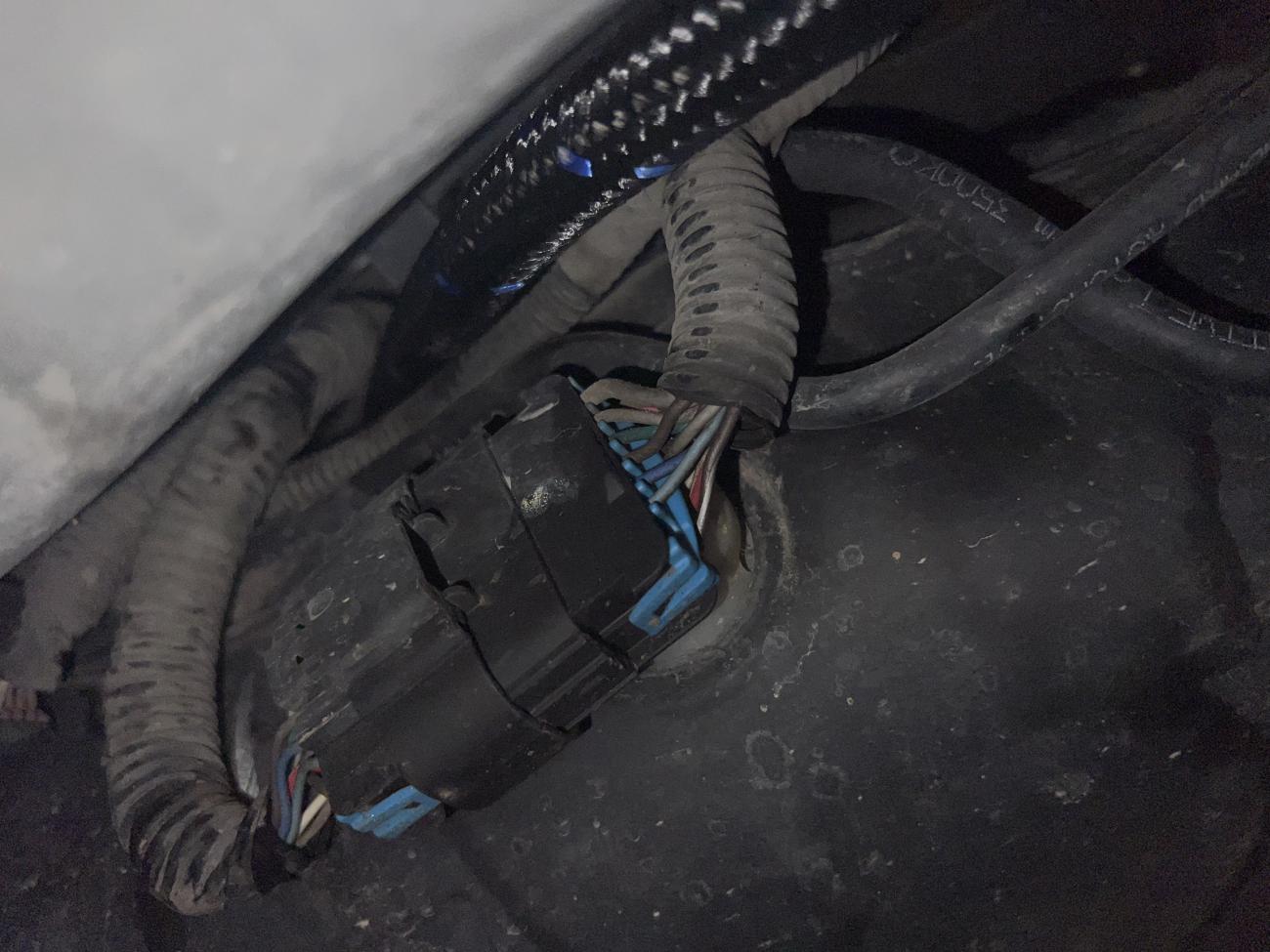

Name:  4F101501-8004-4F57-8963-1DD737CBC522.jpg
Views: 519
Size:  132.7 KB

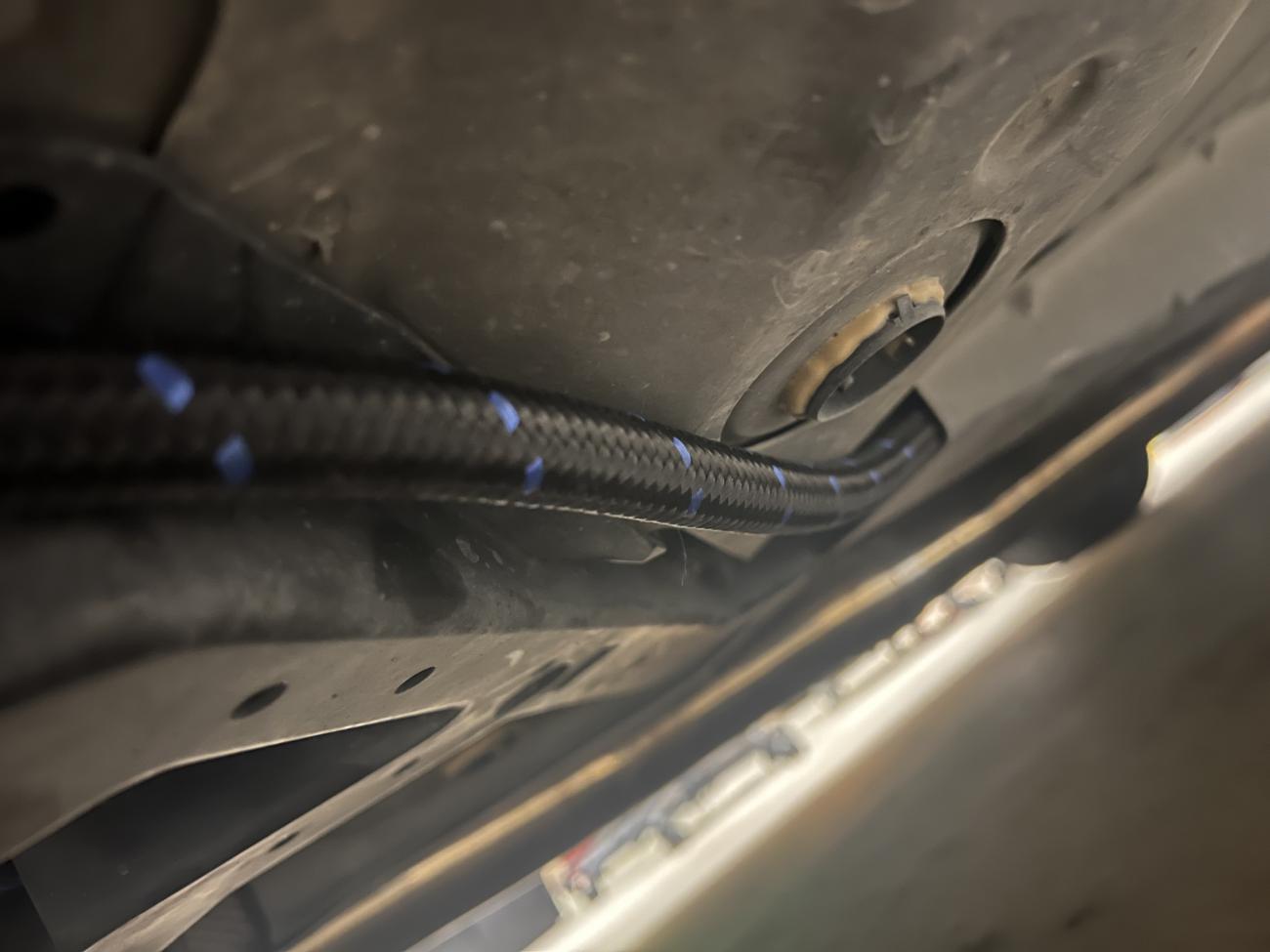

Name:  9D47EEE8-351D-49AF-BA3C-95357AB7905C.jpg
Views: 508
Size:  71.0 KB

Name:  BE259E8B-1C32-40BD-85D7-0B665531BCE0.jpg
Views: 514
Size:  129.4 KB

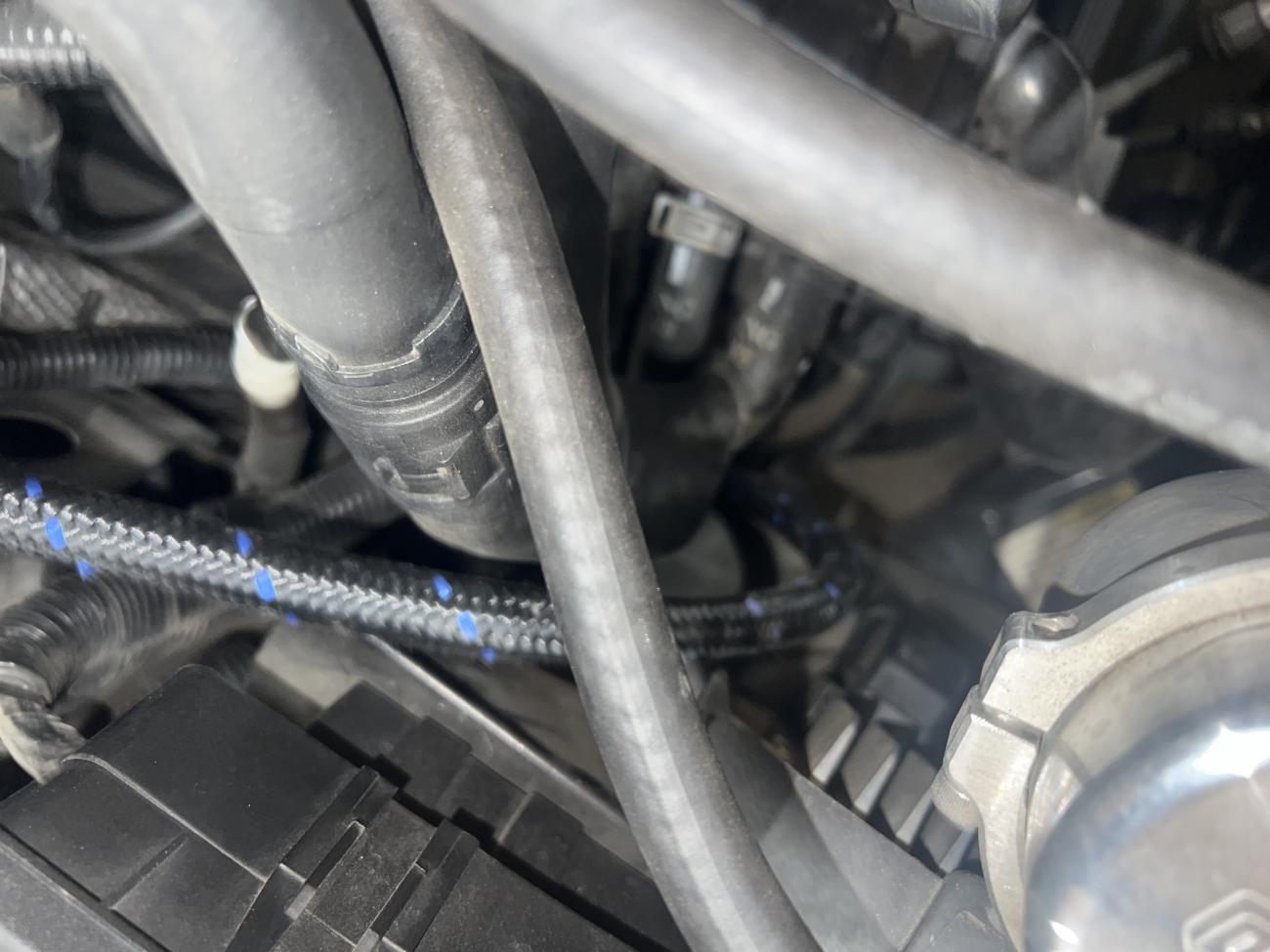

Name:  D4B33595-6730-4DC7-B509-F4DA634B5559.jpg
Views: 527
Size:  109.3 KB

Name:  4E668EE9-8E62-469A-8C4F-13F53720A8A5.jpg
Views: 520
Size:  56.8 KB
__________________
My build link... https://www.camaro5.com/forums/showt...4#post11077544

2010 2SS/RS/ Mods, Whipple, 1000cc injector, 102MM TB, Innovation West 10% OD pulley set up 8 rib, AGP twin 450 fuel system w flex on E85, CAI K&N, LT with OR Cats aka no catalytic converters, Coils and wires, 3" exhaust with mufflers, Oil catch can, 2015 ZL1 9.9 3.23 ratio, BMR upper Lower control arms, 15"conversion, BMR Anti Roll Bar 315/60/15 ET street slicks

1972 El Camino SS 565BBC 950HP, All TRZ suspension

Last edited by SFR7771; 03-14-2023 at 10:19 PM.
SFR7771 is offline   Reply With Quote
Old 03-14-2023, 10:02 PM   #9
SFR7771
Drag and Drive is Life

SFR7771's Avatar

Drives: 2010 Camaro 2SS RS A6 LS3 Whipple
Join Date: Aug 2021
Location: TX
Posts: 143
9 mount regulator and lines with gauge in engine bay. Also the flex fuel sensor is attached to the regulator. Took a little while as the bracket is really tight but that’s a good thing it holds the flex sensor tight.
__________________
My build link... https://www.camaro5.com/forums/showt...4#post11077544

2010 2SS/RS/ Mods, Whipple, 1000cc injector, 102MM TB, Innovation West 10% OD pulley set up 8 rib, AGP twin 450 fuel system w flex on E85, CAI K&N, LT with OR Cats aka no catalytic converters, Coils and wires, 3" exhaust with mufflers, Oil catch can, 2015 ZL1 9.9 3.23 ratio, BMR upper Lower control arms, 15"conversion, BMR Anti Roll Bar 315/60/15 ET street slicks

1972 El Camino SS 565BBC 950HP, All TRZ suspension

Last edited by SFR7771; 03-14-2023 at 10:19 PM.
SFR7771 is offline   Reply With Quote
Old 03-14-2023, 10:06 PM   #10
SFR7771
Drag and Drive is Life

SFR7771's Avatar

Drives: 2010 Camaro 2SS RS A6 LS3 Whipple
Join Date: Aug 2021
Location: TX
Posts: 143

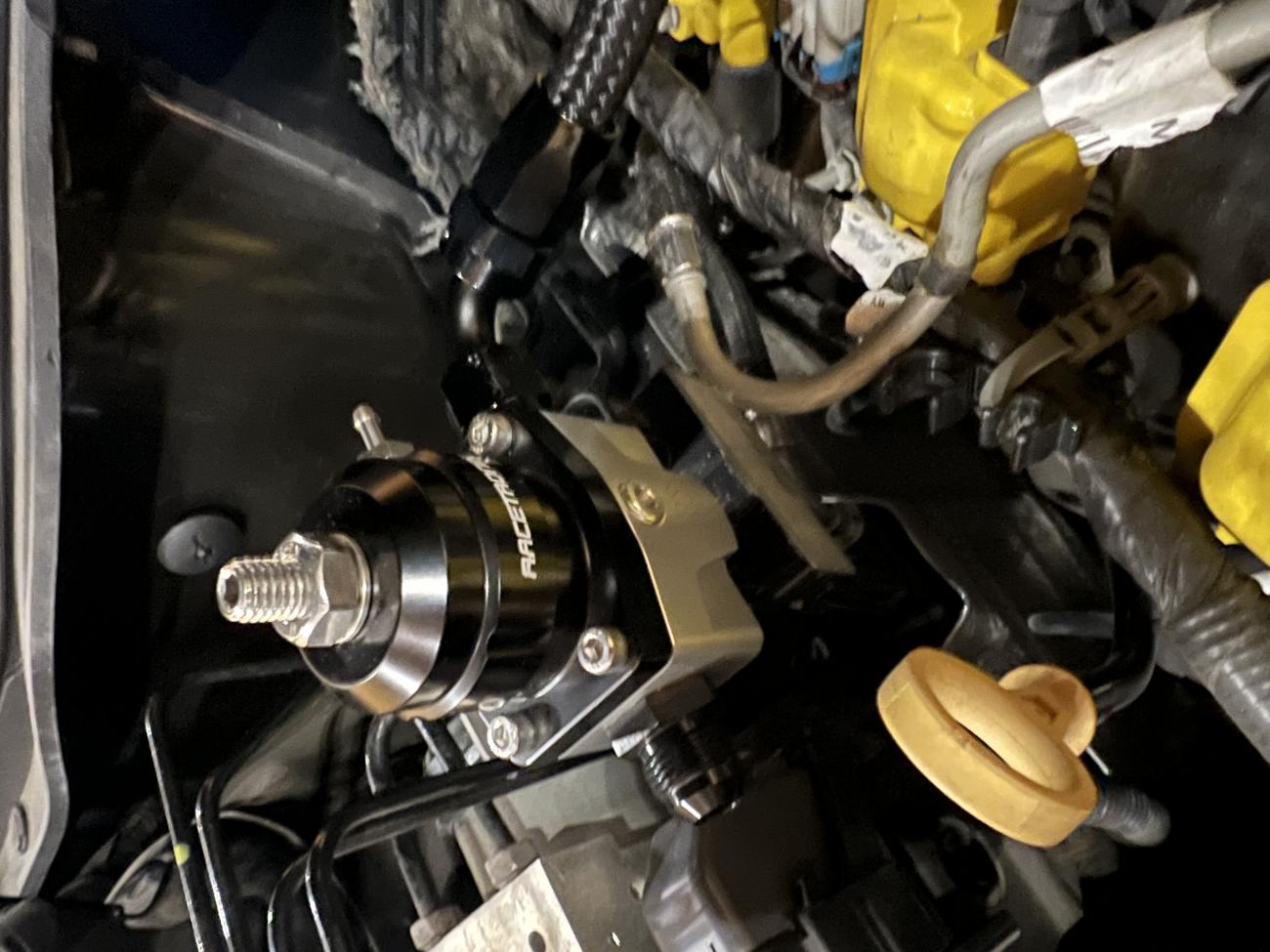

Name:  2217DB98-A1CF-4981-9A5D-3CAA84A6CDC1.jpg
Views: 521
Size:  138.8 KB

Name:  A3A543AF-D035-42BA-A0F1-56F3ACF25020.jpg
Views: 516
Size:  138.7 KB

Name:  73E65A09-5558-452B-938B-A5492FCEF0BF.jpg
Views: 529
Size:  128.1 KB

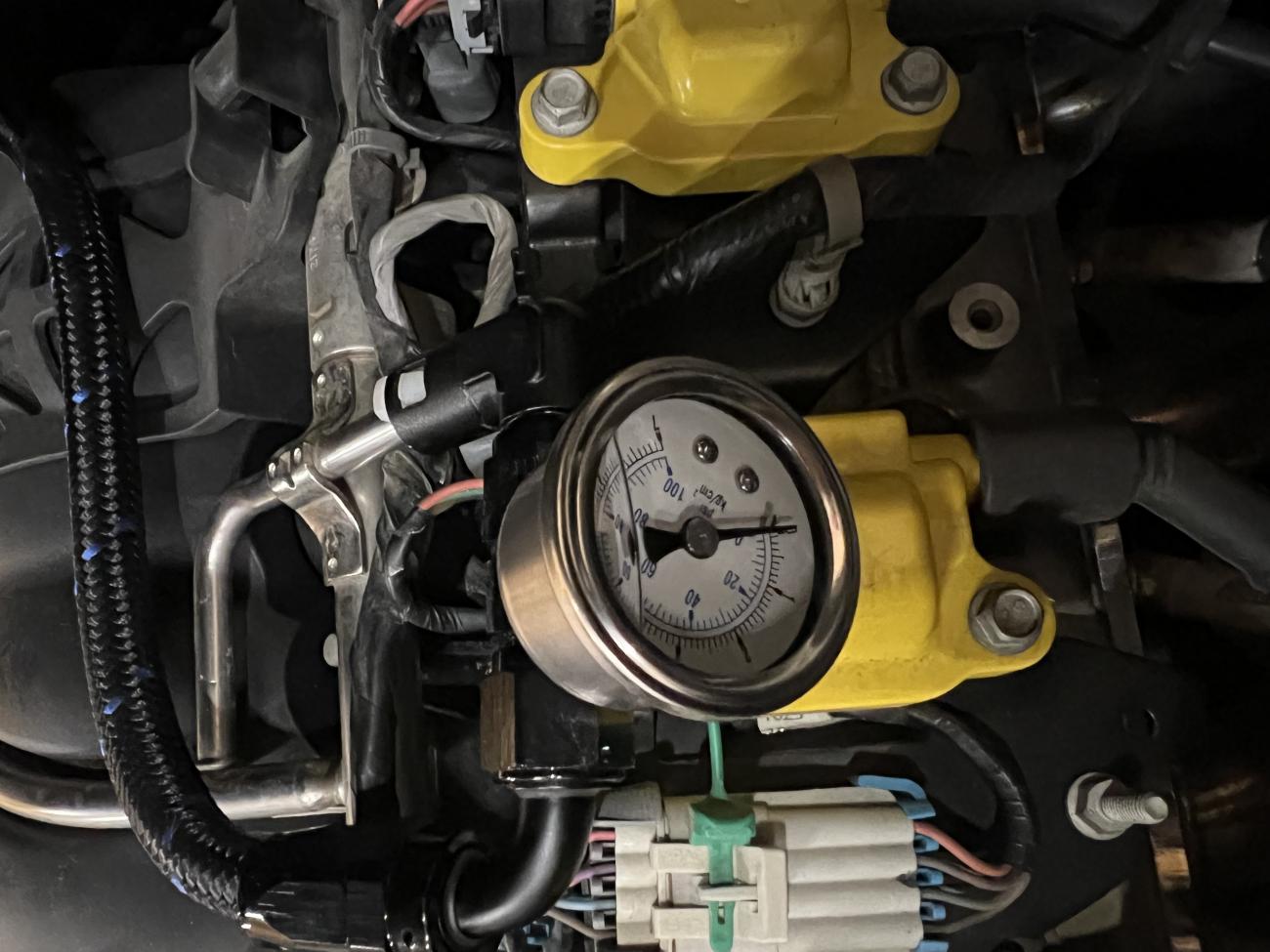

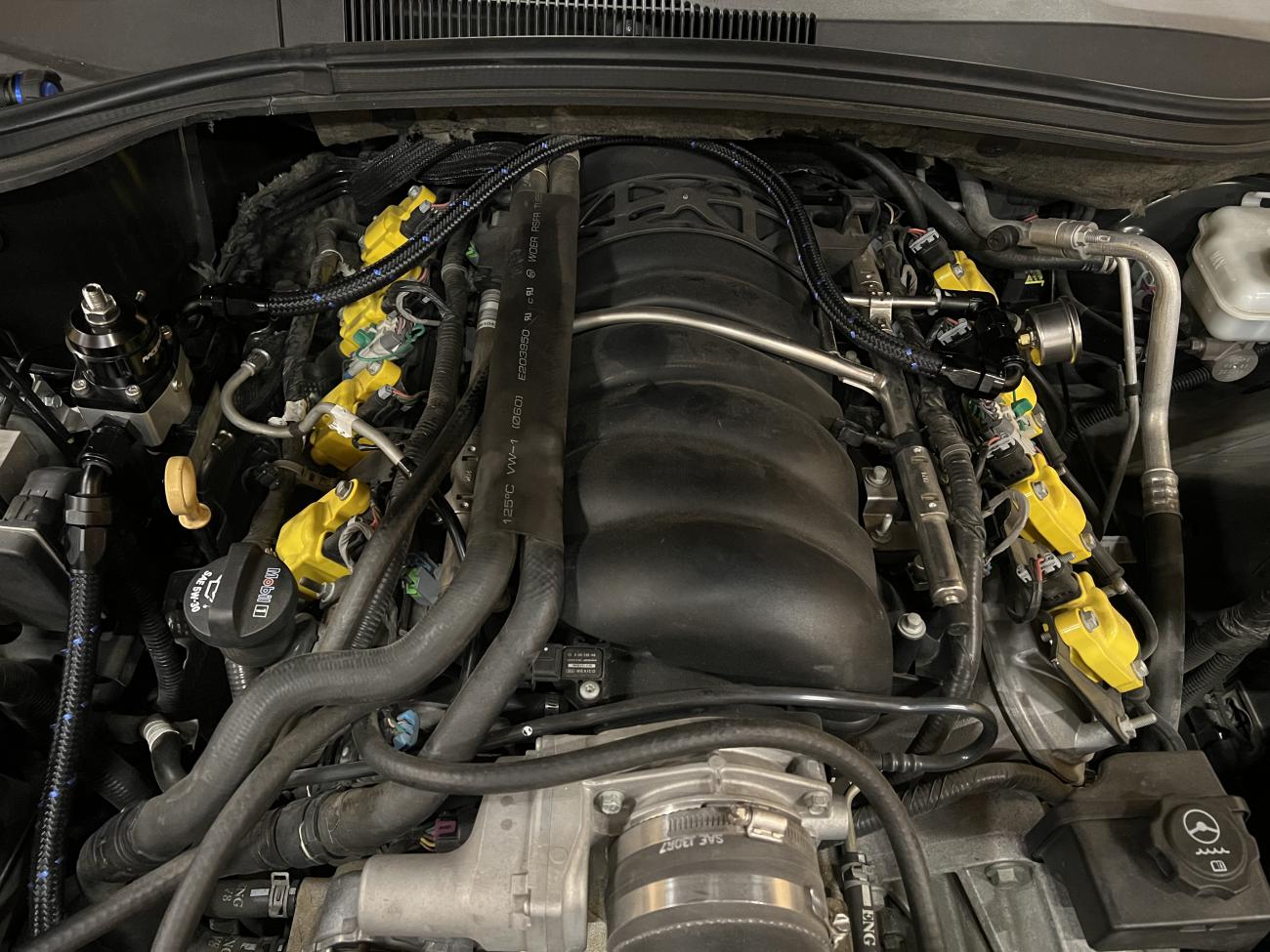

Name:  2D6592AF-4BC5-4C19-B07B-32A372FC070B.jpg
Views: 535
Size:  191.8 KB
__________________
My build link... https://www.camaro5.com/forums/showt...4#post11077544

2010 2SS/RS/ Mods, Whipple, 1000cc injector, 102MM TB, Innovation West 10% OD pulley set up 8 rib, AGP twin 450 fuel system w flex on E85, CAI K&N, LT with OR Cats aka no catalytic converters, Coils and wires, 3" exhaust with mufflers, Oil catch can, 2015 ZL1 9.9 3.23 ratio, BMR upper Lower control arms, 15"conversion, BMR Anti Roll Bar 315/60/15 ET street slicks

1972 El Camino SS 565BBC 950HP, All TRZ suspension
SFR7771 is offline   Reply With Quote
Old 03-14-2023, 10:07 PM   #11
SFR7771
Drag and Drive is Life

SFR7771's Avatar

Drives: 2010 Camaro 2SS RS A6 LS3 Whipple
Join Date: Aug 2021
Location: TX
Posts: 143
Next we start the wiring! Fun fun
__________________
My build link... https://www.camaro5.com/forums/showt...4#post11077544

2010 2SS/RS/ Mods, Whipple, 1000cc injector, 102MM TB, Innovation West 10% OD pulley set up 8 rib, AGP twin 450 fuel system w flex on E85, CAI K&N, LT with OR Cats aka no catalytic converters, Coils and wires, 3" exhaust with mufflers, Oil catch can, 2015 ZL1 9.9 3.23 ratio, BMR upper Lower control arms, 15"conversion, BMR Anti Roll Bar 315/60/15 ET street slicks

1972 El Camino SS 565BBC 950HP, All TRZ suspension
SFR7771 is offline   Reply With Quote
Old 03-16-2023, 05:47 PM   #12
AGP Turbo


Drives: All things Turbocharged
Join Date: Dec 2010
Location: AZ
Posts: 1,199
You done good so far. It's super frustrating the first time but a sharp learning curve. Pretty easy the second time.

Use Dynamat over the hole you just cut, on top of whatever metal door you make. You get a lot of pump noise and road noise up through that hole even when covered with sheet metal.
AGP Turbo is offline   Reply With Quote
Old 03-16-2023, 09:17 PM   #13
SFR7771
Drag and Drive is Life

SFR7771's Avatar

Drives: 2010 Camaro 2SS RS A6 LS3 Whipple
Join Date: Aug 2021
Location: TX
Posts: 143
Wiring diagram

Wish I had a wire diagram it would be so helpful at this point. Thanks

Quote:
Originally Posted by AGP Turbo View Post
You done good so far. It's super frustrating the first time but a sharp learning curve. Pretty easy the second time.

Use Dynamat over the hole you just cut, on top of whatever metal door you make. You get a lot of pump noise and road noise up through that hole even when covered with sheet metal.
__________________
My build link... https://www.camaro5.com/forums/showt...4#post11077544

2010 2SS/RS/ Mods, Whipple, 1000cc injector, 102MM TB, Innovation West 10% OD pulley set up 8 rib, AGP twin 450 fuel system w flex on E85, CAI K&N, LT with OR Cats aka no catalytic converters, Coils and wires, 3" exhaust with mufflers, Oil catch can, 2015 ZL1 9.9 3.23 ratio, BMR upper Lower control arms, 15"conversion, BMR Anti Roll Bar 315/60/15 ET street slicks

1972 El Camino SS 565BBC 950HP, All TRZ suspension
SFR7771 is offline   Reply With Quote
Old 03-16-2023, 09:47 PM   #14
cc-rider


Drives: 2010 Camaro SS
Join Date: Dec 2006
Location: MN
Posts: 1,177
You’re timing of this thread couldn’t be more timely for me. I’ve got an AGP twin set up that I’m just about to put in and get my build going. Thanks for the pics and tips. Would love to see how you wire this up as well.
