02-15-2010, 11:36 PM
|
#1 |
|
12.23s@113mph
Drives: 2SS/RS, A6, just a few bolt ons Join Date: Jul 2009
Location: Houston, TX
Posts: 1,197
|
RJT Painted Heritage Grille Installed
Just got my GM Heritage Grille painted and i installed it myself. not too hard to remove the bumper and swap out the grille.
to install the bowtie i found a couple of clips that looked just like the 4 retainer clips that hold the bottom of the grille onto the bumper, except the ones i found were slightly larger... i found out you don't NEED to reinstall these retainer clips and it is possible to use 2 of them to install the bowtie, just use needle nose pliers to open it up a little bit. i had to modify the bowtie slightly. all i did was break the 2 vertical tabs off and cut the 2 circular tabs at each end, and then rested the horizontal flat tabs on the top of the third bar on the grille and held it in place with the 2 retainer clips i mentioned earlier. here is some pics!
__________________
 RIP Cammie 7/15/2009 - 4/1/2011 |
|
|
|
02-15-2010, 11:40 PM
|
#2 |
|
Pulling your strings
Drives: My girlfriend crazy with car talk Join Date: Jan 2010
Location: Austin, Texas
Posts: 1,246
|
Did you put the bowtie on after the grille was installed? Looks FANTASTIC with the blacked out bowtie
__________________
 |
|
|
|
|
02-15-2010, 11:43 PM
|
#3 |
|
12.23s@113mph
Drives: 2SS/RS, A6, just a few bolt ons Join Date: Jul 2009
Location: Houston, TX
Posts: 1,197
|

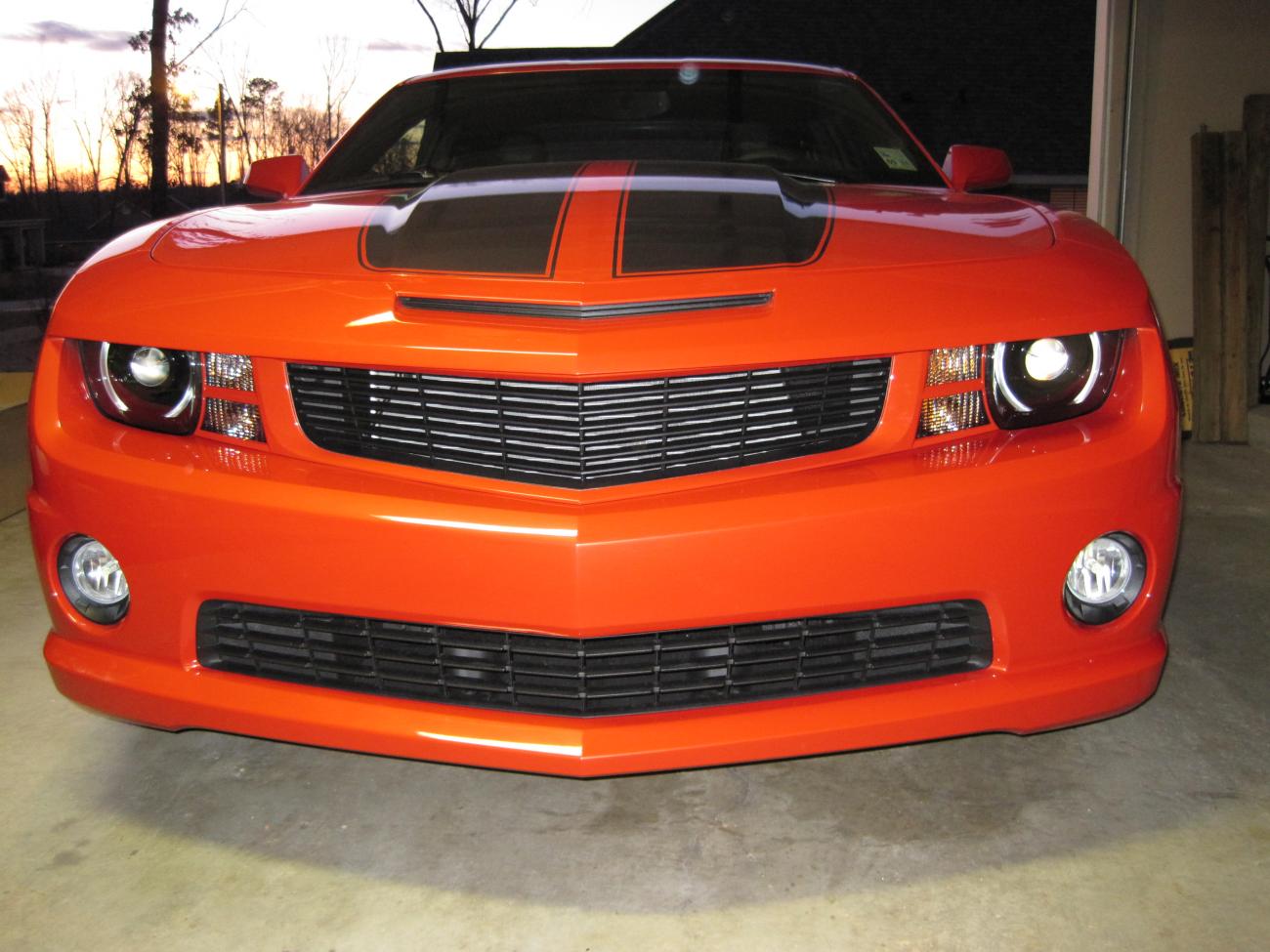

yea i put it on to see what it looked like without the emblem and left the radiator shroud off so i could get my arm in there just in case.
i ended up liking it more with the emblem as you can tell!
__________________
RIP Cammie 7/15/2009 - 4/1/2011 |
|
|
|
|
02-15-2010, 11:44 PM
|
#4 |

|
beautiful
|
|
|
|
|
02-15-2010, 11:44 PM
|
#5 |
|
Móderator
|
Think I installed mine wrong, it's in the trunk! Looks great can't wait till I get mine on.
__________________
I'm not the one with the Atti2de problem it's everyone else that has a problem with my Atti2de!
 |
|
|
|
|
02-15-2010, 11:45 PM
|
#6 |
|
Pulling your strings
Drives: My girlfriend crazy with car talk Join Date: Jan 2010
Location: Austin, Texas
Posts: 1,246
|
Well hell.....you just cost me $300. I'm going to email my dealer tomorrow and ask him to order one and install it in make ready since I can put the bowtie after install. Thanks for the info!
__________________
|
|
|
|
|
02-15-2010, 11:45 PM
|
#7 |
          |
Nice job. Looks Awesome..
|
|
|
|
|
02-16-2010, 12:01 AM
|
#8 |
|
2G1FB1EV7A9100028
Drives: 2010 Jeep Wrangler Hemi Join Date: Mar 2009
Location: Michigan
Posts: 882
|
Ordering mine next week because of these pics! Thanks for sharing.
__________________
# 28 - Victory Red 1LT/RS (SOLD)
|
|
|
|
|
02-16-2010, 01:33 AM
|
#9 |
|
Mayhem SS
Drives: 2010 2SS/RS L99 SW/IOM Join Date: Dec 2009
Location: ROMA, TX
Posts: 949
|
looks good bro... can't wait for mine to show up... should get it this week
what about the SS emblem
__________________
Mayhem SS - 6.2, Roto-Fab CAI, Pacesetter Headers/Magnaflow X-pipe, Built by TMS, Tuned by File
La Muerte Z71 - Stock 5.3 Tuned by File |
|
|
|
|
02-16-2010, 01:39 AM
|
#10 |
|
Supercharged
|
Gorgeous! Thanks for sharing. I know what I want to get now
__________________
2SS/RS IBM A6, White Rallies
Ordered: 4/30/09 Delivered: 8/18/09 Appearance Mods: Heritage Grille, ZL1 Replica Wheels Performance Mods: Flowmaster ARH Cat-Back Exhaust, ADM CAI, ADM L99-LS3 Conversion, ADM LSA Supercharger Kit, Lingenfelter GT9 Cam, Stainless Power Headers, Detroit Speed Sway Bars, ZL1 Fuel Pump 581 rwhp/535 lb/ft tq |
|
|
|
|
02-16-2010, 02:30 AM
|
#11 |
Drives: Inferno Orange 2010 Camaro 2SS/RS Join Date: Nov 2008
Location: From: Los Angeles
Posts: 686
|
nice
|
|
|
|
|
02-16-2010, 08:08 AM
|
#12 |
|
Drives: 2010 Camaro 2SS/RS Join Date: May 2009
Location: Michigan
Posts: 756
|
Looks great! Do they make a grill for the lower section to match?
__________________
 |
|
|
|
|
02-16-2010, 08:23 AM
|
#13 |
|
7 year Cancer Survivor!
Drives: 17 Cruze RS, 07 G6 GT, 99 Astro Join Date: Dec 2007
Location: East Tennessee
Posts: 21,546
|
It does look good, I like it better with the BowTie also.. looks kind of bland without it. I think you have made up my mind to get one also, As soon as my income tax refund get deposited.
__________________
Cancer's a bitch! Enjoy life while you can! LIVE, LOVE, DRIVE...
The Bird is the word! |
|
|
|
|
02-16-2010, 09:06 AM
|
#14 |
Drives: 2SS/RS IOM CGM Stripes Join Date: May 2009
Location: Haughton, LA
Posts: 931
|
The grill looks great. I just installed mine yesterday as well. Didn't mean to hijack your thread. I think this grill looks awesome. Yours is the first RJT one I've seen.
|
|
|
|
|
|
|
|
 |
|
|
