Pictures of FILL and DRAIN hole on TR6060 - Camaro5 Chevy Camaro Forum / Camaro ZL1, SS and V6 Forums

Jeanius · 02-23-2010, 09:49 PM

Did my tranny fluid swap to Royal Purple Synchromax. The drivetrain is pretty quiet now, and the shifts feel great, smooth and soft going into gear. Here are some pics for anyone who is going to do their own.

Drain - Located at the Rear of the Passenger side of the Tranny

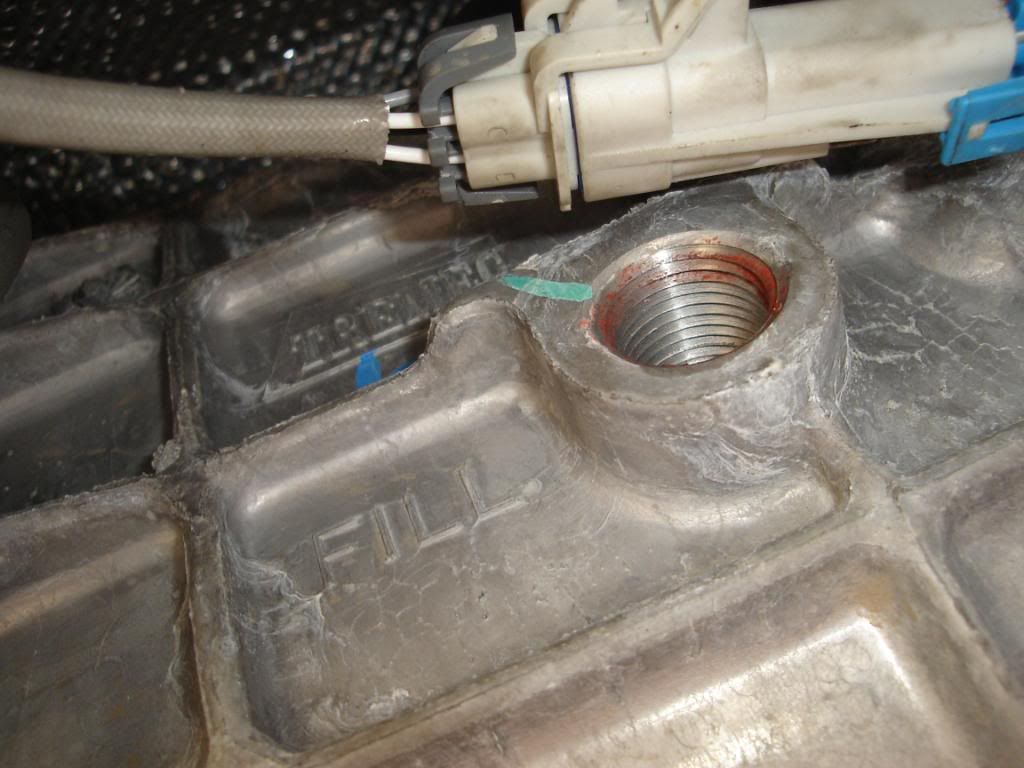

Fill - Located at Middle of the Drivers side of the Tranny

Lowbubba · 02-26-2010, 09:31 PM

How much oil did it take to refill?
Thanks for the info.

The Enforcer · 02-26-2010, 11:20 PM

How many miles on the tranny before first change?????

Jeanius · 03-01-2010, 11:59 AM

It took 4 qt of Synchromax

http://www.saferacer.com/royal-purpl...?productid=435

Mine was done at 5k miles but only because I lagged on it BiG time, I bought them when I had about 2k

SleepWarz · 03-01-2010, 04:26 PM

About 3 days ago I had a full oil/tranny/dif fluid change, all RP.

Free'd up a little more low end power, as 8th throttle going up a damp hill in first starts to spin the tires. I got giddy!

GQ4Life · 03-01-2010, 11:54 PM

thats hillarious it says drain and fill.. haha

thanxs for the pics though.. good work

2010 SSRS · 03-02-2010, 07:33 AM

nice

02-23-2010, 09:49 PM	#1
Jeanius Drives: Blk/Blk 2018 Sierra SLT Join Date: Dec 2006 Location: Golden State Posts: 2,925	Pictures of FILL and DRAIN hole on TR6060 Did my tranny fluid swap to Royal Purple Synchromax. The drivetrain is pretty quiet now, and the shifts feel great, smooth and soft going into gear. Here are some pics for anyone who is going to do their own. Drain - Located at the Rear of the Passenger side of the Tranny Fill - Located at Middle of the Drivers side of the Tranny __________________ SOLD: 2SS LS3 M6 - MGW - Dynatech LT's HF Cats - Magnaflow Street CB - ADM Race CAI - Pedders Xa Coilovers - Pfadt Sways TRADED: 2016 2SS M6

03-01-2010, 11:59 AM	#4
Jeanius Drives: Blk/Blk 2018 Sierra SLT Join Date: Dec 2006 Location: Golden State Posts: 2,925	It took 4 qt of Synchromax http://www.saferacer.com/royal-purpl...?productid=435 Mine was done at 5k miles but only because I lagged on it BiG time, I bought them when I had about 2k __________________ SOLD: 2SS LS3 M6 - MGW - Dynatech LT's HF Cats - Magnaflow Street CB - ADM Race CAI - Pedders Xa Coilovers - Pfadt Sways TRADED: 2016 2SS M6

03-01-2010, 11:54 PM	#6
GQ4Life Drives: 2010 Camaro SS LS3 Join Date: Aug 2009 Location: Fishkill, NY Posts: 5,197 View My Garage	thats hillarious it says drain and fill.. haha thanxs for the pics though.. good work __________________ 2015 Corvette Z06.. Lime Rock Park 1:01; Watkins Glen 2:14; Thompson Speedway 1:21
