Old 05-17-2011, 01:50 PM   #1
Kyle.Gilmour
Charter Circle Member

Kyle.Gilmour's Avatar

Drives: 427 LSX- with TWINS
Join Date: Jan 2007
Location: Back in Michigan!! Do miss ATX and my Tejas friends
Posts: 2,755
Send a message via AIM to Kyle.Gilmour
My new ARD stage 3 built 4L80E

Soooo… it happened again…. At CamaroFest I messed up another clutch. But mind you I do not take responsibility in either occurrence. Hahaha.
At Fest 1, I just had too much power for the stock clutch, so the failure was almost expected.. almost
For Fest 2, well that was still under investigation until a few days ago when Monster said they would not warranty my clutch because there was organic material on it (oil) and this was due to improper installation. I will give you one guess as to who installed my clutch… if you read the first few posts of my build thread you will know.

Anyway, with my whole transmission already out of the car, it did not take much convincing from Russ/Deaver/Mike/Jason/Ronnie and even Owen to push their ways on me and convince me to put an Automatic into Detroit Muscle. Owen from ARD in Houston built up his own 4L80E and built it to RUN!!
To put in perspective, Owen’s daily driver has this same transmission and he has not had to touch the tranny in 2 years….. oh, and his car is well over 1000 rwhp and I believe… 4th fastest 5th gen in the world. So I was pretty stoked to have something similar in my car.

From what I hear the build went fairly smoothly, other than actually getting the yolk, but in the end, the Drive Shaft Shop came to the resuce and theirs turned out better than what was going in. Owen’s transmission went into an Automatic Camaro with a few headaches here and there, but it turns out that installing a 4L80E into a Manual Camaro makes for a much easier and cleaner build.

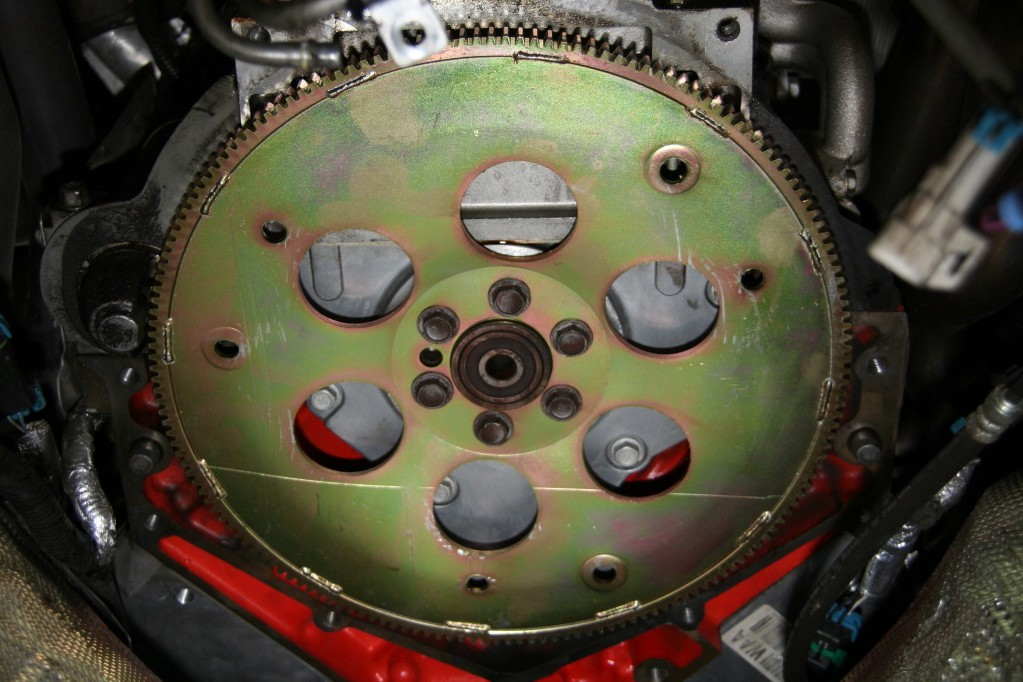

Below are pictures of the transmission, the B&M Proratchet shifter with LockUp mechanism, and a few internet shots of the hardware I did not have actual pics of.

4l80E: ARD stage 3 (manual)
• 3800 stall Circle D multi disk billet
• Upgraded servo piston
• Carbon rear band, carbon lined coast band
• Alto red eagle Power packs all forward gears
• 36 element sprag drum
• Trans Go 4l80E-3 full manual valve body kit
• New lower roller sprag
• New overdrive sprag roller type
• New Borg warner High energy 4th gear clutches
• All new bushings and seals

I do love the new transmission, it is fast and keeps me in boost pretty much all the time when you are above the stall converter. I have not been to the track yet, but with this, it will be almost impossible not to run mid-10s.

There are a couple downfalls to it though.
• The MPG, we expected it to drop a couple miles per gallon, but it was almost 7-8 mpg at 70mph. Even with the LockUp it still does not drop the RPMs low enough. I think another reason for this is the stall converter; quite a bit of fuel is used at lower speeds. I was getting at best, 21mpg with 708rwhp. Now with the new trans I am getting 14.5 at 70mph, if I drop it to 60 and use cruise control I can muster out about 17.5mpg. So this was a bit of a surprise for me, but you got to play to pay as we all know.
• Tranny noise – there is definitely a lot more road noise, especially in first gear, but this is all expected when dealing with the high performance parts that we have.

So those little things set aside… I love the transmission and to know it is “bulletproof” (hope I did not jinx myself) makes me feel secure that it will last a long time even with me beating on it.
I picked up car on a Friday night, Owen took me for a “spin” literally, hahaha. He showed me how it drives, and how to use the ProRatchet shifter. This took me a few hours to get into the groove, so I didn’t have to count what gear I was in. Those that have used this type of B&M shifter know what I mean. The LockUp feature, for those that dont know what it is, is described as “A lock-up clutch physically links the impeller and turbine, effectively changing the converter into a purely mechanical coupling. The result is no slippage, and virtually no power loss.”
I have an on/off switch on my console that I can use to LockUp when I am driving at highway speeds to help reduce my RPM and increase my MPG. It is a great feature, but I learned the hard way… you have to remember to turn it off before coming to a stop. Hahahaha

So, I headed over to Mlee’s house to have dinner with DaHose and DangerRuss that night, we also cleaned the car so it was ready for the Houston 2011 Camaro Convertible GM Media Event the next day. We had a blast at the event, but I tell you what… that new tranny helps me hit speeds much faster….
I am sure if you Search hard you can find some pictures proving that

So all in all, I am very pleased with my new automatic 4l80E ARD stage 3 (manual) transmission, the fit and finish that Owen puts into this is fantastic. Nothing was affected, the cruise control still works, the trans temp reads accurate, tires spin uncontrollably, and the stitching he did on my stock shifter boot is ingenious!! All I do is have to hit the throttle part way and I am off like a rocket in a straight line, when i get to the rev limiter I just smash the shifter forward, then again, then again. It is way different than having to lift and shift.

One more point to how great of a shop ARD is, my B&M shifter broke the second day, no fault at all associated with ARD, it was just a bad mechanical part. Owen sent his driver and mechanic to Austin to pick up my car, brought it back to Houston and welded up inside of the shifter to make it better than it originally was. Then brought it back to me the day before I needed it for a Cruise in my honor (going away party cruise). I cannot express how genuine and caring this shop is.

PICS BELOW -

The shifter pic does not show the LockUp button on the console, must not have been installed at the time of the pics, but there is also an intermediate LockUp button on the handle of the shifter

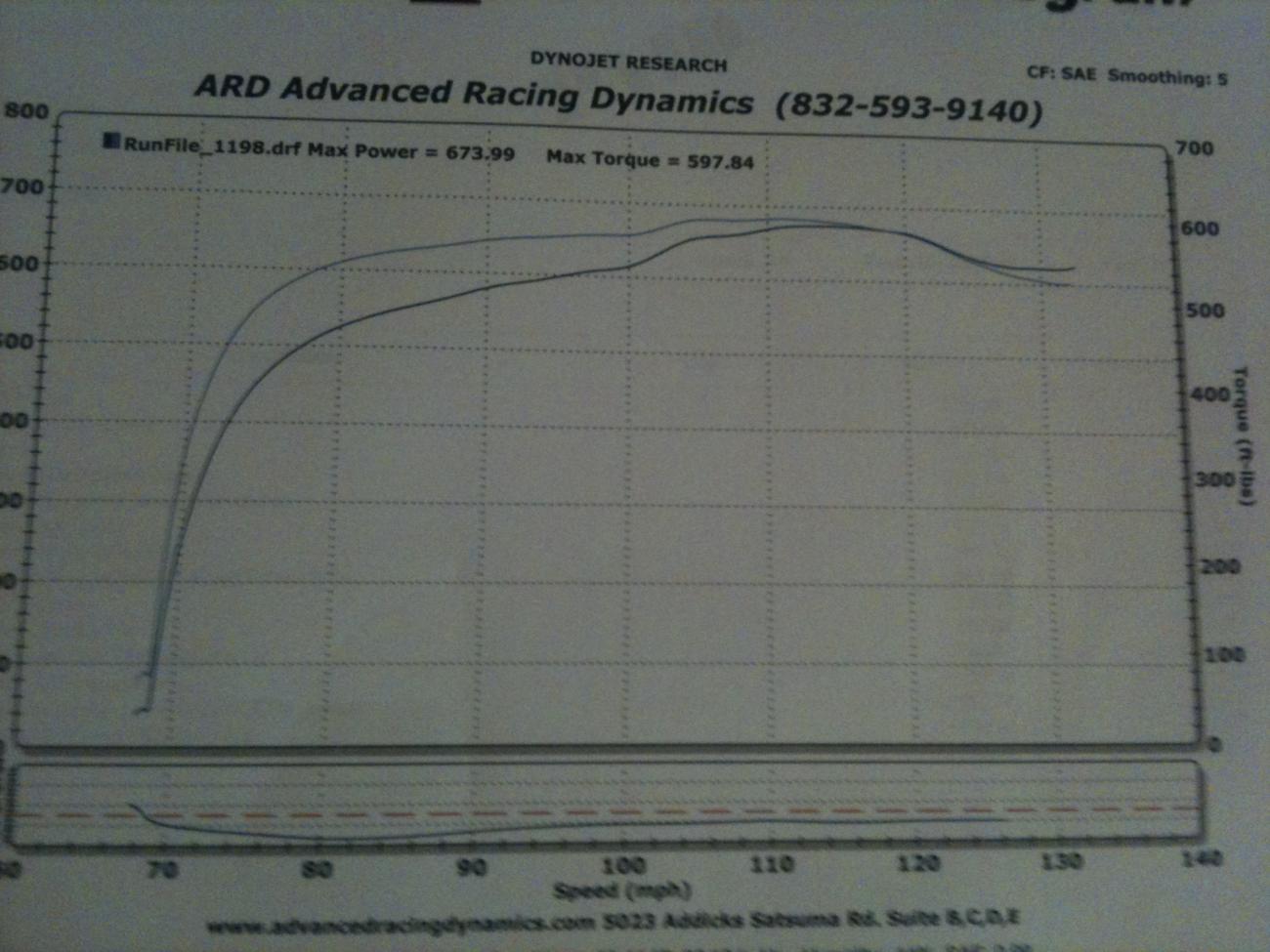

Oh, and I through in my Dyno sheet WITH the auto and Meth Injection.
Attached Images

__________________
Kyle.Gilmour is offline   Reply With Quote
Old 05-17-2011, 01:54 PM   #2
Kyle.Gilmour
Charter Circle Member

Kyle.Gilmour's Avatar

Drives: 427 LSX- with TWINS
Join Date: Jan 2007
Location: Back in Michigan!! Do miss ATX and my Tejas friends
Posts: 2,755
Send a message via AIM to Kyle.Gilmour

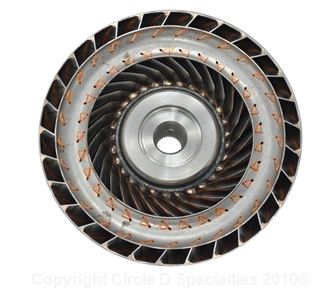

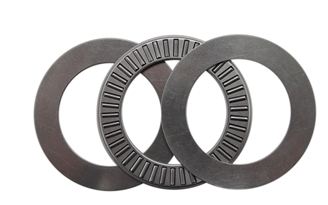

Circle D website pics of some parts
Attached Images

__________________
Kyle.Gilmour is offline   Reply With Quote
Old 05-17-2011, 03:02 PM   #3
mlee
H-Town Camaro Club

mlee's Avatar

Drives: Number Twenty-Three
Join Date: Oct 2008
Location: Conroe, TX
Posts: 24,386
Your car was already a beast but now... I wanted one of these a while back and Owen said no I didn't need it. Guess I'll need to up the power to be worthy. Glad to hear you're enjoying it...
__________________
.
mlee is offline   Reply With Quote
Old 05-17-2011, 07:56 PM   #4
jungsoo726

jungsoo726's Avatar

Drives: 2010 Camaro SS 6MT CGM
Join Date: Feb 2011
Location: Denton, TX
Posts: 93
Looks fantastic!!!
__________________
U.S. Army 2003-PRESENT {OIF 06-07, OEF 09-10}
/ Airaid / Straight pipes / Morel / Zapco / Kenwood / Lamin-X /

Installer at Denton Autosound (940)484-7484
jungsoo726 is offline   Reply With Quote
Old 05-17-2011, 08:27 PM   #5
Kyle.Gilmour
Charter Circle Member

Kyle.Gilmour's Avatar

Drives: 427 LSX- with TWINS
Join Date: Jan 2007
Location: Back in Michigan!! Do miss ATX and my Tejas friends
Posts: 2,755
Send a message via AIM to Kyle.Gilmour
you WILL need one soon... hopefully
__________________
Kyle.Gilmour is offline   Reply With Quote
Old 05-18-2011, 07:03 AM   #6
mlee
H-Town Camaro Club

mlee's Avatar

Drives: Number Twenty-Three
Join Date: Oct 2008
Location: Conroe, TX
Posts: 24,386
Quote:
Originally Posted by Kyle.Gilmour View Post
you WILL need one soon... hopefully
This may be my answer to the manual trans only ZL1...
__________________
.
mlee is offline   Reply With Quote
Old 05-18-2011, 07:13 AM   #7
Kyle.Gilmour
Charter Circle Member

Kyle.Gilmour's Avatar

Drives: 427 LSX- with TWINS
Join Date: Jan 2007
Location: Back in Michigan!! Do miss ATX and my Tejas friends
Posts: 2,755
Send a message via AIM to Kyle.Gilmour
Quote:
Originally Posted by mlee View Post
This may be my answer to the manual trans only ZL1...
saaaaay whaaaa
__________________
Kyle.Gilmour is offline   Reply With Quote
Old 05-18-2011, 08:16 AM   #8
mlee
H-Town Camaro Club

mlee's Avatar

Drives: Number Twenty-Three
Join Date: Oct 2008
Location: Conroe, TX
Posts: 24,386
Quote:
Originally Posted by Kyle.Gilmour View Post
saaaaay whaaaa
Oh Yeah... perfect combo... ZL1 w/ 4L80 trans...
__________________
.
mlee is offline   Reply With Quote
Old 05-18-2011, 11:24 AM   #9
TC

TC's Avatar

Drives: 2010 VR 2SS-RS
Join Date: Dec 2008
Location: Michigan
Posts: 369
What did that bad boy set you back?
TC is offline   Reply With Quote
Old 05-18-2011, 11:52 AM   #10
Kyle.Gilmour
Charter Circle Member

Kyle.Gilmour's Avatar

Drives: 427 LSX- with TWINS
Join Date: Jan 2007
Location: Back in Michigan!! Do miss ATX and my Tejas friends
Posts: 2,755
Send a message via AIM to Kyle.Gilmour
Quote:
Originally Posted by TC View Post
What did that bad boy set you back?
it was a bit over 4600
__________________
Kyle.Gilmour is offline   Reply With Quote
Old 05-18-2011, 11:56 AM   #11
Kyle.Gilmour
Charter Circle Member

Kyle.Gilmour's Avatar

Drives: 427 LSX- with TWINS
Join Date: Jan 2007
Location: Back in Michigan!! Do miss ATX and my Tejas friends
Posts: 2,755
Send a message via AIM to Kyle.Gilmour
Quote:
Originally Posted by TC View Post
What did that bad boy set you back?
where in Michigan are you from TC?

I am moving up to the Traverse City area in two days!
__________________
Kyle.Gilmour is offline   Reply With Quote
Old 05-18-2011, 12:39 PM   #12
MANNYS2SS/RS


MANNYS2SS/RS's Avatar

Drives: 2010 Camaro 2SS/RS,LS3
Join Date: Oct 2010
Location: South Florida
Posts: 2,143
Very nice job, I have been wanting to convert my LS3 to a 4L80E transmission. Did You Have to Modify the tunnel or anything else? If you have any other pictures that you may be able to share? Also did you loose any RWHP /RWTQ? Thanks
__________________

LS-3, ProCharger D1SC
665. rwhp /562. rwtq @ 9.3 psi
MANNYS2SS/RS is offline   Reply With Quote
Old 05-18-2011, 12:55 PM   #13
Kyle.Gilmour
Charter Circle Member

Kyle.Gilmour's Avatar

Drives: 427 LSX- with TWINS
Join Date: Jan 2007
Location: Back in Michigan!! Do miss ATX and my Tejas friends
Posts: 2,755
Send a message via AIM to Kyle.Gilmour
Quote:
Originally Posted by MANNYS2SS/RS View Post
Very nice job, I have been wanting to convert my LS3 to a 4L80E transmission. Did You Have to Modify the tunnel or anything else? If you have any other pictures that you may be able to share? Also did you loose any RWHP /RWTQ? Thanks
I do not know how much modification to the tunnel needed to be done... not much though. Owen said he had a much more difficult time converting his stock auto to the 4L80. He mentioned the LS3 was a much cleaner build. If you want the specifics on the build, email or call Owen at ARD, I am sure he can answer any of your questions.

fastparts@advancedracingdynamics.com
832-593-9140

As for rwhp loss... short answer yes... I am trying to figure out the actual numbers before I post that up. It was significant, BUT... even with the extra drivetrain loss... it is way faster.
__________________
Kyle.Gilmour is offline   Reply With Quote
Old 05-18-2011, 01:17 PM   #14
MANNYS2SS/RS


MANNYS2SS/RS's Avatar

Drives: 2010 Camaro 2SS/RS,LS3
Join Date: Oct 2010
Location: South Florida
Posts: 2,143
Thanks, I will give them a call. I am pretty shore that even with the lost of HP you will be faster at the track, especially your 60ft. keep us posted...Thanks
__________________

LS-3, ProCharger D1SC
665. rwhp /562. rwtq @ 9.3 psi
MANNYS2SS/RS is offline   Reply With Quote
Old 05-18-2011, 01:39 PM   #15
Kyle.Gilmour
Charter Circle Member

Kyle.Gilmour's Avatar

Drives: 427 LSX- with TWINS
Join Date: Jan 2007
Location: Back in Michigan!! Do miss ATX and my Tejas friends
Posts: 2,755
Send a message via AIM to Kyle.Gilmour
I will for sure.... click my sig to check out my build thread... that is where all the other updates will be made.
__________________
Kyle.Gilmour is offline   Reply With Quote
Old 05-19-2011, 04:49 AM   #16
TC

TC's Avatar

Drives: 2010 VR 2SS-RS
Join Date: Dec 2008
Location: Michigan
Posts: 369
Did that cover everything or just the trans?
I'm in the big city of Fowlerville, near Brighton. We'll have to hook up some time. I'm heading up to Clare this weekend for a show and race put on at a local airport.
TC is offline   Reply With Quote
Old 05-19-2011, 08:42 AM   #17
Kyle.Gilmour
Charter Circle Member

Kyle.Gilmour's Avatar

Drives: 427 LSX- with TWINS
Join Date: Jan 2007
Location: Back in Michigan!! Do miss ATX and my Tejas friends
Posts: 2,755
Send a message via AIM to Kyle.Gilmour
Quote:
Originally Posted by TC View Post
Did that cover everything or just the trans?
I'm in the big city of Fowlerville, near Brighton. We'll have to hook up some time. I'm heading up to Clare this weekend for a show and race put on at a local airport.
that was everything.
you are more than welcome to check it out, drive it if you want. I will be at the Fbody Meet and Greet in a couple weeks.

a race in clare? where? what kind?
__________________
Kyle.Gilmour is offline   Reply With Quote
Old 05-19-2011, 03:06 PM   #18
TC

TC's Avatar

Drives: 2010 VR 2SS-RS
Join Date: Dec 2008
Location: Michigan
Posts: 369
details still pending, I'll let you know.
TC is offline   Reply With Quote
Old 05-19-2011, 03:18 PM   #19
Kyle.Gilmour
Charter Circle Member

Kyle.Gilmour's Avatar

Drives: 427 LSX- with TWINS
Join Date: Jan 2007
Location: Back in Michigan!! Do miss ATX and my Tejas friends
Posts: 2,755
Send a message via AIM to Kyle.Gilmour
Cool. Please do
__________________
Kyle.Gilmour is offline   Reply With Quote
Old 05-21-2011, 02:15 PM   #20
Aries240SS

Drives: 2011 1SS RS Camaro, 1995 LSX 240SX
Join Date: Mar 2011
Location: Austin, TX
Posts: 291
Owen built a 4L60e back in the day that we put in my small block Nissan. It held up to 2 nitrous kits and 3 years of abuse before I finally killed the torque converter. Insides still looked great when cracked open, so it'll be going back in the car behind the new motor this summer.
Aries240SS is offline   Reply With Quote
Old 05-22-2011, 07:45 AM   #21
Driveshaftshop



Driveshaftshop's Avatar

Drives: own more cars than i can list
Join Date: Nov 2010
Location: Charlotte NC
Posts: 982
Kyle
great looking build, the guys at ARD are great. very good choice.
__________________
The Driveshaft Shop
Any of the parts we post about can be
purchased thru our extensive dealer network
If you want to see some of our latest Hi-Tech stuff click the picture below....
Driveshaftshop is offline   Reply With Quote
Old 05-22-2011, 02:10 PM   #22
PoleCat2SSRS2010
R6P Marketing Lab Rat

PoleCat2SSRS2010's Avatar

Drives: 2010 2SSRS for weekends mostly
Join Date: Feb 2009
Location: Texas
Posts: 328
Quote:
Originally Posted by Driveshaftshop View Post
Kyle
great looking build, the guys at ARD are great. very good choice.

What are the chances of DSS opting out a drive shaft for the DSS and LPE AAM rear diff coversions and get a drive shaft for the 4L80 instead of the A6?

Seems like a waste to end up with two drive shafts and use only one when the one solution is the 4L80 for the hp junkies.
PoleCat2SSRS2010 is offline   Reply With Quote
Old 11-22-2012, 06:07 PM   #23
CamaroSS45
Annihilator

CamaroSS45's Avatar

Drives: 2012 45th ERL-427 F1X
Join Date: Aug 2011
Location: KY
Posts: 301
Quote:
Originally Posted by PoleCat2SSRS2010 View Post
What are the chances of DSS opting out a drive shaft for the DSS and LPE AAM rear diff coversions and get a drive shaft for the 4L80 instead of the A6?

Seems like a waste to end up with two drive shafts and use only one when the one solution is the 4L80 for the hp junkies.
Bump ... DSS / Frank - I am likely to be in this same position in short order. We just reviewed this for my build and am likely to move in this direction. Great post here! Curious on DriveShaft as I will have all DSS gear and a 9" but will be moving to this route as well.

Great post!
__________________
ERL M3 Superdeck 427 Forged, Dragon Slayer Crank, Black Label Heads : ProCharger F1X Cog - Holley HighRam : Jakes4L80e CircleD - DSS 9" 1400 axles/shaft, BMR Suspension : Extreme Innovations 15 : Squash, Bosch 127lb FI : ALKY Twin Meth
CamaroSS45 is offline   Reply With Quote
Old 11-22-2012, 08:24 PM   #24
429
Account Suspended

Drives: 2010 camaro ss
Join Date: Nov 2012
Location: Richmond Hill, GA
Posts: 813
DSS can make the 4L80 shaft for any rearend combo you have.
429 is offline   Reply With Quote

Reply

Tags
4l80e, ard, automatic transmission, owen

Thread Tools

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off

Forum Jump

Similar Threads
Thread Thread Starter Forum Replies Last Post
Pfadt Stage 2 Performance Handling Package Is Now $600 Shipped At APEX Motorsports!! Apex Motorsports Suspension / Chassis / Brakes 167 08-09-2012 05:05 PM
6L80 Stage III Upgrade by ARD Dangeruss V8 and V6 Transmissions / Driveline (6L80 / 6L50 / TR6060 / AY6) 18 02-23-2011 11:25 PM
Livernois Motorsports Stage 3 Z06 9.50 @ 148 mph Video Chris@Livernois General Automotive + Other Cars Discussion 2 02-23-2010 08:38 PM
VECTOR Motorsports / ZZ Motorsports Stage II Camaro Package Completed !! ZZcamaro Camaro V8 LS3 / L99 Engine, Exhaust, and Bolt-Ons 59 06-25-2009 11:01 AM
Roush Stage 3 Blackjack Mustang TAG UR IT General Automotive + Other Cars Discussion 16 05-21-2007 07:32 PM


All times are GMT -5. The time now is 10:45 AM.


Powered by vBulletin® Version 3.8.7
Copyright ©2000 - 2014, vBulletin Solutions, Inc.
