First Peek at the Gen-V V8 From GM

[Camaro_Corvette]

Since shortly after the introduction of the LS3 in 2008, enthusiasts everywhere have been anticipating the release of the Generation-V small block from GM. Rumors have been running rampant on everything from its displacement to its basic design. We’ve heard talk of direct-injection, 3-valve cylinder heads, and one point, even DOHC from a 5.5L engine displacement.

Truth be told, we’re not much closer to finding out any solid facts on its specifications. However, thanks to GM Inside News and the Buffalo Business Journal, we were able to get a sneak peek of a completed Gen V small block at the Tonawanda engine plant.

The first thing in the photo that sticks out to us is the unusual valve cover design. There are a number of oddly shaped surfaces on the valve cover, none of which are identical. It could be said that this might have something to due with the 3-valve design, confirming earlier rumors. There’s also an addition of a large pulley under the driver’s side of the block, possibly for a dry-sump oiling system.

Looking back to the top of the motor, what looks to be the intake manifold at first glance is in actuality a sound suppressing engine cover sitting atop of the intake manifold and injectors. Nothing new there, since all current LS motors have them, but the height of the intake has us thinking it could be for a truck application. But then again, you never know.

Something else that strikes us as odd is the water pump/thermostat design, an obvious deviation the the Gen. III/IV arrangements that we’re used to. We’re not exactly sure the significance of the holes in the exhaust manifolds either, but the last time GM gave us those, it was to help increase emissions in the LT1 of the ’90s. We doubt that the Gen. V emits potentially high emissions, rather this is just a precaution to the ever-increasing CAFE restrictions in the coming years.

Obviously we don’t know the whole story yet on this new engine, but as facts become more clear to us in the future, we’ll be sure to share them with you as soon once they become available.

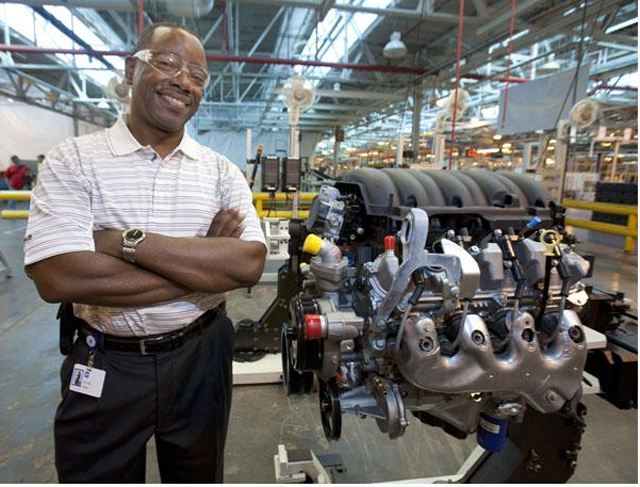

A first peek at the new heart.

[truckstoy]

[fielderLS3]

3-valve/cylinder?? So what, forked rocker arms like on the diesels? It doesn't look OHC in the pictures.

[RLHMARINES]

The speculation is that this new generation will come in both ohc and ohv which the application will be depended upon car or truck use. Now the fly in the ointment is that the ohc might well be a totally new dual cam in block arraignment from the experimental V8 from a few years ago.

[sycraft]

1

[hightower]

AHHHHHHHHHH, I want to know already!!!!

[Camaro_Corvette]

Originally Posted by truckstoy

Thanks

[woodside783]

i had seen a pic of this but it looks like a tuck engine to me

[RLHMARINES]

Originally Posted by woodside783

i had seen a pic of this but it looks like a tuck engine to me

That is the truck version of the new engines shown in the pic.

[FenwickHockey65]

Of course it's been posted already.

[Camaro_Corvette]

Originally Posted by FenwickHockey65

Of course it's been posted already.

Where

[FenwickHockey65]

http://www.camaro5.com/forums/showthread.php?t=236903

I posted the pic in there, and in the House of Z. Didn't give it its own thread though.

[Camaro_Corvette]

Originally Posted by FenwickHockey65

http://www.camaro5.com/forums/showthread.php?t=236903

I posted the pic in there, and in the House of Z. Didn't give it its own thread though.

You sir, are impossible to beat with news.

[FenwickHockey65]

I was a few days late with that pic too. It's been floating around for almost a week now in the truck forums.

[vroomapunk]

I wonder if the weird valve covers are just for testing purposes, Im sure theres a lot of weird crap bolted on the engine when they are testing and designing.

[RLHMARINES]

This is my best guess and here it is, I think the new surprise is the new combustion chamber the engines will deploy is HCCI technology. GM has been toying with this new diesel like combustion for gasoline engines for years now, just my .02 cents.

[TJ91]

very interesting.....

[woodside783]

it can't be long now

[fielderLS3]

Originally Posted by RLHMARINES

Now the fly in the ointment is that the ohc might well be a totally new dual cam in block arraignment from the experimental V8 from a few years ago.

How does that work? Aren't overhead cam and cam in block mutually exclusive?

Wouldn't it be easier to just go OHC than have two seperate cams in the block to create a multi-valve OHV system?

[GEN-IV]

Yes, unlikely to see two in-block camshafts, probably direct injection with some form of electro-hydraulic valve actuation like the Chrysler MultiAir system.

[Kent2010]

From the photo, it appears at least one thing remains unchanged from the LS series Gen4 small-blocks -- GM still has *no* clue about making an engine LOOK good. GenV will still depend on a rubbermaid lid to hide its unsightly topside mess! LoL

We owners have proven that the LS series engines *can* look good with a little effort -- no tupperware required!

[MillerTime]

Originally Posted by Kent2010

From the photo, it appears at least one thing remains unchanged from the LS series Gen4 small-blocks -- GM still has *no* clue about making an engine LOOK good. GenV will still depend on a rubbermaid lid to hide its unsightly topside mess! LoL

We owners have proven that the LS series engines *can* look good with a little effort -- no tupperware required!

While i do agre with the tipside mess I think a majority has to do with mass manufacturing and how time consuming it would be to put wiring into vehicles in 30 seconds like we do over months of time..

[RLHMARINES]

Originally Posted by fielderLS3

How does that work? Aren't overhead cam and cam in block mutually exclusive?

Wouldn't it be easier to just go OHC than have two seperate cams in the block to create a multi-valve OHV system?

Originally Posted by GEN-IV

Yes, unlikely to see two in-block camshafts, probably direct injection with some form of electro-hydraulic valve actuation like the Chrysler MultiAir system.

This is what GM had been working on earlier for an experimental V8 for both RWD and FWD application.

Ever seen the GM/Holden experimental engine?
GM's XV8 Concept Engine

THIS IS NOT NEW actually debuted about 10 years ago.
Most of the technology in this thing is used through out the industry today.
This new V8 showcases future technologies in a compact, fuel-efficient package.

The Opel Signum A concept car has just been debuted at the Frankfurt International Motor Show (IAA). Beneath the hood of the Signum A concept car is the prototype of an all-new, lightweight V8 engine with petrol direct injection, developed in the USA by General Motors Powertrain. Thanks to two camshafts integrated centrally into the engine block and a cylinder-bank angle of only 75 degrees, the 'Global XV8' is so compact it can be installed transversely, as in the Signum A, or longitudinally, making it ideally suited for a future career as a global GM engine.

With three valves per cylinder and 4.3-litres displacement, the refined, all-aluminium power unit generates 220kW and accelerates the front-wheel drive concept car to up to 250 km/h (electronically limited). Despite this high power output, it needs only 9.8 litres of super-grade fuel per 100 kilometres (MVEG). This is thanks to the air-assisted injection of fuel directly into the combustion chamber and deactivation of up to four cylinders under partly open throttle. The engine also features variable camshaft timing. The length of the variable intake manifold alters according to engine speed, so that as much as possible of the 400Nm maximum torque is available at low as well as high rpm. A balance shaft beneath the crankshaft gives the Global XV8 the typical smooth-running cultivation of a 90-degree V8 engine.

The Design

The all-new, technology-intensive XV8 concept engine provides the power and smoothness of a premium V8 and the fuel efficiency of a V6. Yet it fits into an engine bay sized for the width of a V6 and the length of a four-cylinder.

"The XV8 is one of the most technologically advanced V8s in the world," said Fritz Indra, GM Powertrain executive director of advanced engineering. "It was our goal to create a compact, fuel efficient V8 that would showcase many advanced technologies all working together. We are learning from this innovative approach, in the same way that many of the early GM engine pioneers experimented with technologies that have made GM a leader in engines for the last century. Although we have no current plans for production in its entirety, many of the technologies are under development for future engine programs."

Packaging, power, fuel efficiency and emissions, along with a combination of advanced technologies, drove the development of the all-new XV8 starting from a "clean sheet" approach.

"There is no V8 in existence that combines air-assisted direct injection petrol, variable inlet systems, cam phasing and Displacement on Demand technology, especially in such a compact package," said Indra. "Normally, engineers try to apply new technology to existing engines, but this often results in compromises because you cannot bring the injector or spark plug in the best position or because you must rely on the existing valve angle, for example. An existing engine could not have worked for all this new technology because the whole combustion process is different between multipoint fuel injection and direct injection. We could only get the best results by designing the combustion chamber, and thus the whole engine, around the best position for the injector and the spark plug."

High Technology Features

Goals for XV8 development, in addition to the compact packaging and outstanding fuel efficiency, included 224kW (300 hp) capability in a performance car-type application. The XV8 runs a very high compression ratio - 10.75:1 - with regular grade petrol. To achieve that type of world-class, direct-injection performance while meeting fuel efficiency demands in the smallest package size possible, GM engineers integrated many different advanced technologies.

Some of the technologies and capabilities of XV8 include:


Air-assisted direct injection petrol
Displacement on Demand
Two cams in-block with variable inlet valve timing and cam phasing
Narrow 75-degree bank angle
Active inlet manifold
Twin oil pumps
An integrated air compressor

The XV8 was designed to accommodate a combustion chamber that utilizes a direct fuel injection system. It features the air-assisted direct injection petrol system from Orbital Engine Corporation of Australia. The system is integrated into three-valve cylinder heads and dual cams in the block.

"Using three valves-two inlets and one exhaust-gives you more room in the combustion chamber for optimal positioning of the injector and the spark plug, vertical and nearly central in the chamber," Indra said.

Having two cams in the block rather than dual overhead cams provides considerable packaging benefits and combined with the direct injection fuel system, contributes to the XV8's outstanding performance numbers.

"Having this very good combustion chamber process in the small XV8 also lets us re-evaluate the catalytic converters," Indra said. "We made the combustion itself so effective that we can reduce the after-treatment system. That was another prerequisite for the engine and another reason for the clean, complete burn."

Displacement on Demand

GM's Displacement on Demand technology was designed into the XV8 from the start. Displacement on Demand allows the V8 to shut down half of its cylinders seamlessly at predetermined times to significantly reduce fuel consumption without hampering performance.

The XV8's unique twin oil pump design allows the engine to run Displacement on Demand at idle, since the system and cam phasing system have their own dedicated oil pump, which provides enough pressure to deactivate the cylinders at idle and reactivate them immediately upon throttle engagement.

In May 2001, GM announced that it will implement Displacement on Demand in its trucks and SUVs beginning in 2004.

Two Cams In-Block with Variable Inlet Valve Timing and Cam Phasing

The use of a camshaft "phaser" separates the timing functions of the intake and exhaust valves. This is accomplished in the XV8 engine by having two in-block camshafts, one for inlet operation and one for exhaust. The camshafts are located in a vertical plane above the crankshaft and parallel to its centre of rotation. The intake camshaft is the lower camshaft and is approximately in the centre of the block. The exhaust cam is positioned above the intake. Because the intake camshaft rather than the exhaust is "phased," the XV8's camshaft drive provides the ability to better modify and enhance full-load engine torque characteristics. In the stratified combustion mode of operation, it can be used to increase the charge dilution by advancing the intake cam timing. The set-up reduces friction and fuel consumption, particularly at idle and part-load, and also contributes to the engine's outstanding low-end torque.

"With the cams in the block," Indra said, "the valve timing precision is better than with a DOHC configuration. The different heat levels with long belts and chains in a DOHC set-up always changes the valve timing."

Having two camshafts in the engine block with the ability to "phase" one of the cams is unique to GM.

Narrow 75-degree Bank Angle

The XV8's narrow 75-degree bank angle and very small cylinder heads result in an overall engine compactness that is revolutionary. "The 75-degree V8 is a packaging solution that's typical of race cars," said Hayman.

Active Inlet Manifold

The air-assist direct injection system requires port geometries that generate a minimum of "in-cylinder" motion when the system is operating in stratified mode. During homogeneous operating conditions, in-cylinder motion is required in similar fashion to port fuel injected engines. The inlet manifold design supports these design objectives to achieve maximum fuel economy. The resulting design also allows the engine to deliver a broad torque band suited to spirited driving styles, supports the peak power objectives, and fully accommodates the Displacement on Demand system.

Twin Oil Pumps/Balance Shaft Assembly

The XV8 is unique not only in that it has two oil pumps, but also in that the engine's balance shaft doubles as the oil pump drive shaft. The former allows for such functions as cam phasing and Displacement on Demand at idle and the latter contributes to the engine's compact packaging.

Because the XV8 requires extensive hydraulic function, two oil pumps were used in a serial fashion. If the lubrication system was designed with the typical single oil pump, its displacement would have to be substantially increased to provide minimum pressure to the entire engine. The primary pump supplies low pressure filtered oil to the bearings, valve lifters and secondary pump inlet. The secondary pump acts to intensify the pressure for supply to the cam phaser and Displacement on Demand systems. In doing this, parasitic power consumption to the oil pump is minimized.

Because of packaging constraints, the oil pump drive was combined with the balance shaft assembly. To get the necessary 1:1 counter-rotation of the balance shaft, it is driven by a helical gear pressed on the rear of the crankshaft.

"The drive for the pumps is the balance shaft, which has to go opposite engine rotation at engine speed because of our narrow bank angle," Hayman said. "So we get the balance shaft basically for free and this is all packaged in the sump that bolts to the bottom of the block. That is unique. Also, placing the oil pumps at each end of the balance shaft helps to damp vibrations."

Integrated Air Compressor

The XV8's air compressor (used in the direct injection) is integrated into the engine assembly.

"That's another unique aspect of the engine," Hayman said. "The air compressor is part of the engine assembly itself, not just a component bolted onto the accessory drive somewhere as a standalone pump. It's integrated to the back of the cylinder head and all of the fluids are transferred through this interface. This avoids the requirement for the myriad of hoses that would have traditionally been required including the avoidance of having to run a separate air-assist rail."

Conclusion

"Starting with a clean sheet of paper allows engineers to see the whole picture for the first time - not just power or high revolutions or any one specific goal," said Indra. "They really see the requirements of the future and designed the engine around those requirements. It gets excellent fuel economy and has clean emissions, but above all, it satisfies the main requirement anyone has of an engine: It will perform."

Check out the bolt on covers that are covering the actual valve covers in the last few pics also and compare to the covers on the pic from the truck engine from the original post.

[RLHMARINES]

I think its' obvious that this pic is of a fwd specific layout and not for a rwd layout if you look at the intake and exhaust positions from the older pics that I provided. I believe the truck pics are not of a 3 valve arraignment like this pic.

[Taintedveins]

Originally Posted by RLHMARINES

I think its' obvious that this pic is of a fwd specific layout and not for a rwd layout if you look at the intake and exhaust positions from the older pics that I provided. I believe the truck pics are not of a 3 valve arraignment like this pic.

Good read but a little bit long haha, definitely interesting though
