Complete Rear bushing and 3.91 gear swap DIY

Here is my rear bushings and 3.91 gear swap build thread. I'm focusing on road racing track preperation but most of these mods will be applicable to all gen 5 camaro owner.

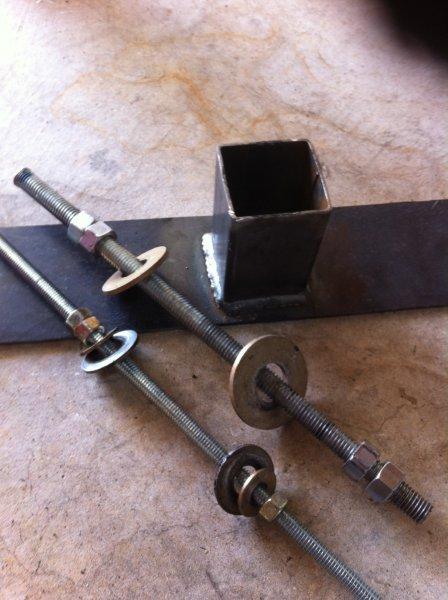

I built a simple tool that worked for the majority of the trailing, toe and control arm bushings. I only had 2" square tube lying around but it worked really well.
Name:  IMG_0757.jpg
Views: 4247
Size:  46.6 KB

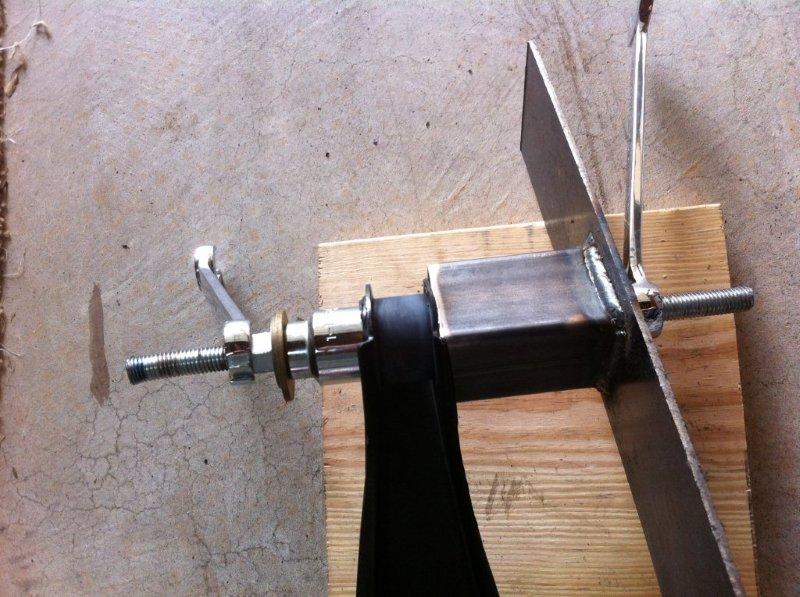

Here you can see just how well the square tube works
Name:  IMG_0758.jpg
Views: 4072
Size:  92.4 KB

For the trailing and toe rods I removed one side of the rubber bushing lip to make it easier to press out. I also used a little heat from a map gas torch to soften things up as I applied some pressure.
Name:  IMG_0764.jpg
Views: 4032
Size:  38.2 KB

Name:  IMG_0766.jpg
Views: 4042
Size:  34.9 KB

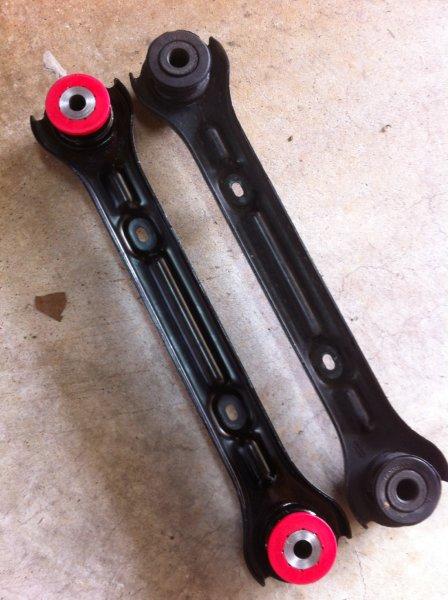

Here is one finished compared to the factory unit
Name:  IMG_0771.jpg
Views: 4057
Size:  49.5 KB

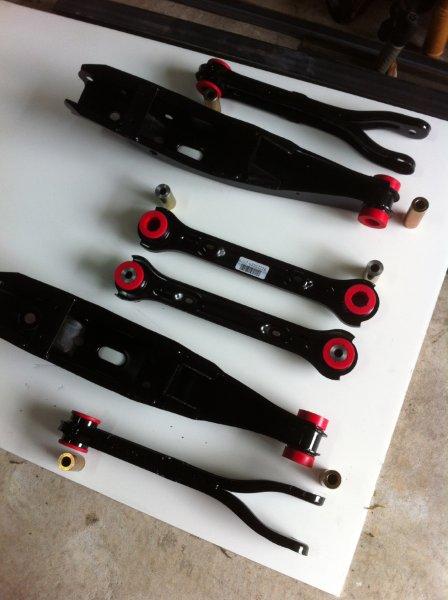

Complete
Name:  IMG_0772.jpg
Views: 4021
Size:  38.7 KB

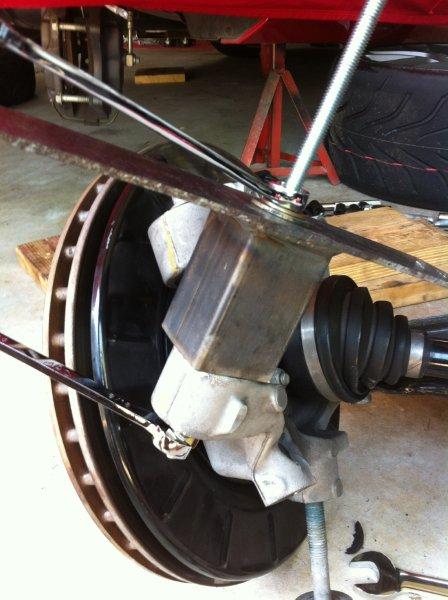

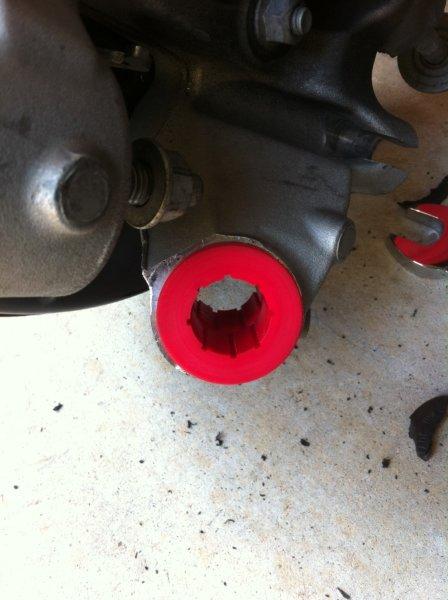

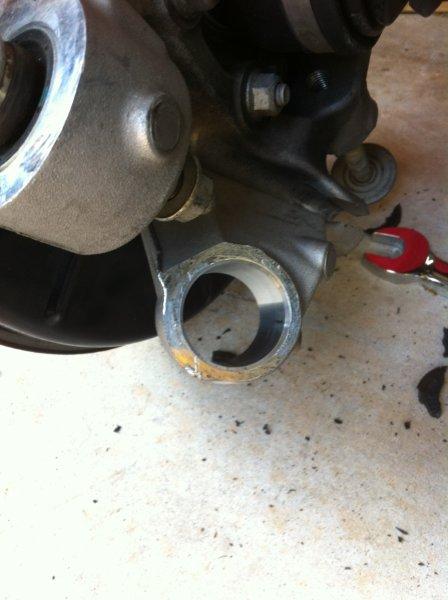

On the hub side the square tube also worked well
Name:  IMG_0775.jpg
Views: 4020
Size:  47.6 KB

Name:  IMG_0776.jpg
Views: 3999
Size:  35.8 KB

Name:  IMG_0777.jpg
Views: 4004
Size:  38.4 KB

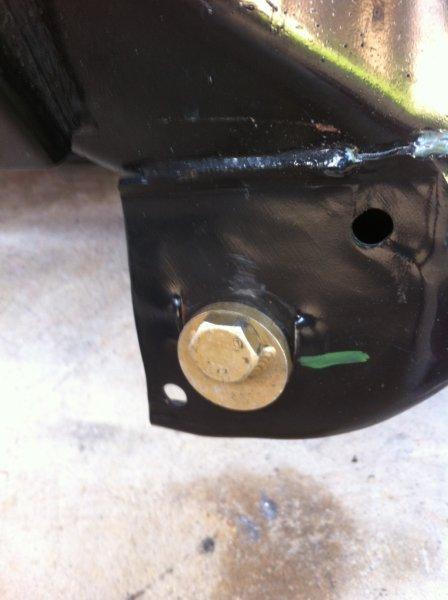

Last year I installed the pedders allignment bolts front and rear. In the rear I didn't need the full range of adjustment so I didn't open the slot. While I had the subframe out of the car I took the opportunity to open the adjustment slot. I used a long shaft burr. Total job only took 10 minutes.
Name:  IMG_0780.jpg
Views: 3997
Size:  27.9 KB

Name:  IMG_0783.jpg
Views: 4015
Size:  32.4 KB

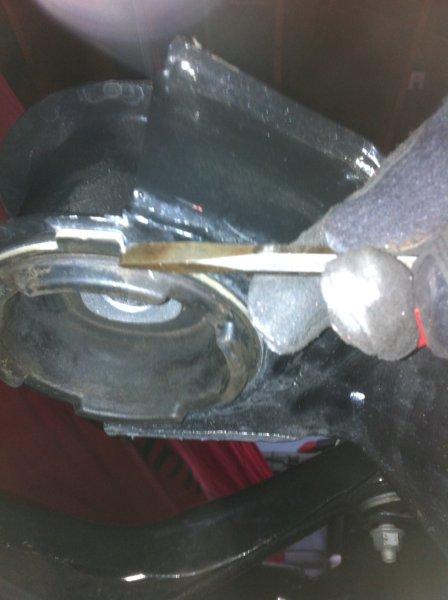

Now on to the subframe bushings. I started with the rear bushings by removing the fiberglass tab on the bottom of the bushing so the cup could sit flush.
Name:  IMG_0787.jpg
Views: 3999
Size:  31.2 KB

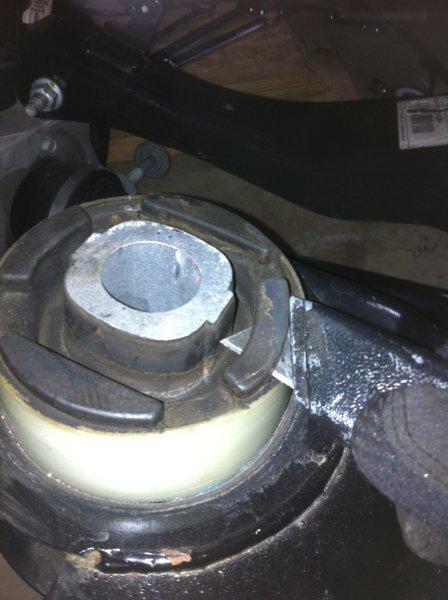

I also cut the rubber tabs so the the press pipe could sit flush on top
Name:  IMG_0791.jpg
Views: 3954
Size:  38.2 KB

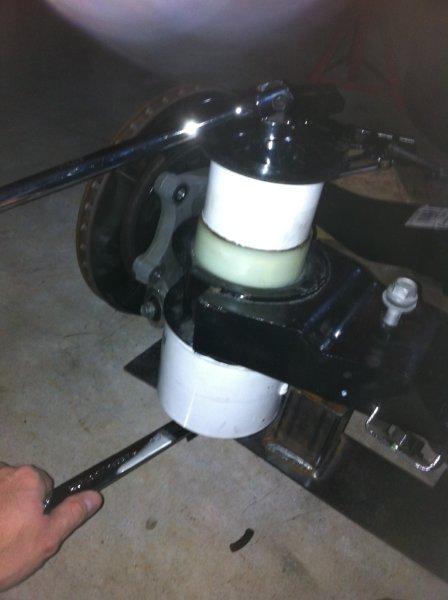

Here you can see I used a 4" PVC coupler and some 1/2 inch threaded rod. I used my earlier tool as a back plate and the steel cup that is removed from the bottom of the bushing as a top plate.
Name:  IMG_0792.jpg
Views: 3978
Size:  28.7 KB

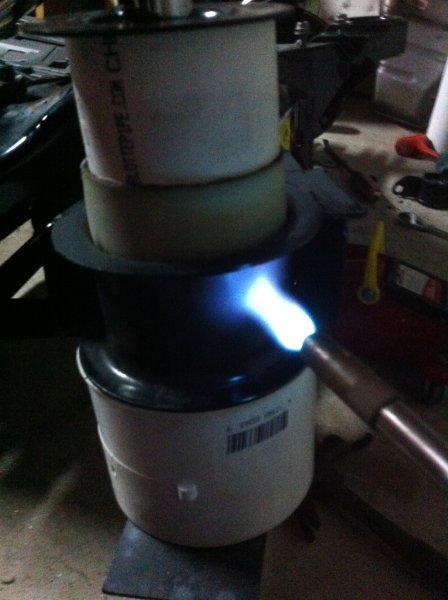

I applied some heat very carefully so I didn't melt the PVC too much. I was able to use the PVC pipe for both sides which only took about 3 minutes each to setup the tool and remove the bushing (Using just hand tools)
Name:  IMG_0795.jpg
Views: 3974
Size:  35.7 KB

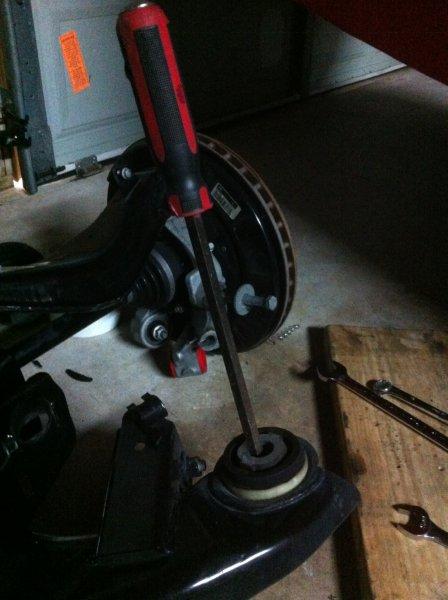

For the front subframe bushings the bottom cup can be removed by tapping a large screw driver or pry bar from the top.
Name:  IMG_0799.jpg
Views: 3940
Size:  39.3 KB

I also had to remove the tab from the front bushing sleeve
Name:  IMG_0809.jpg
Views: 3896
Size:  30.4 KB

The front required a 2" threaded cap to press the bushing out from the top.
Name:  IMG_0810.jpg
Views: 3905
Size:  46.9 KB

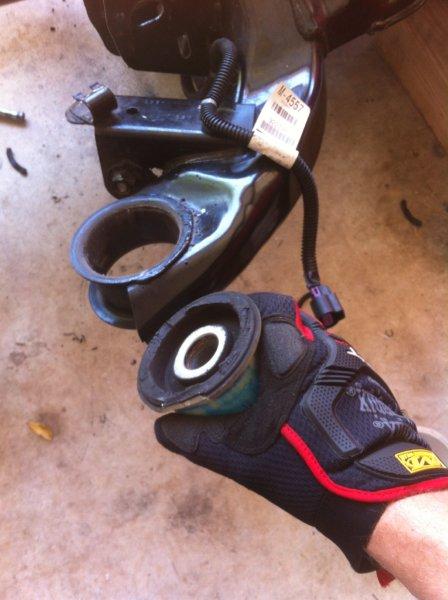

Name:  IMG_0813.jpg
Views: 3911
Size:  41.5 KB

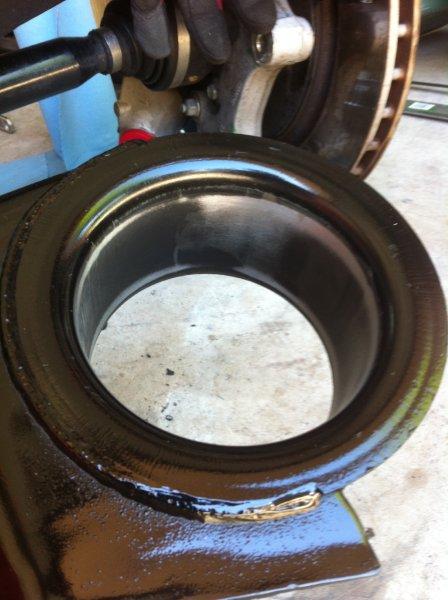

I used a cylinder hone to LIGHTLY clean and hone the bushing seat. Sandpaper could have done the same job but I think the hone was much quicker and consistent. Here is the cleaned and painted seat.
Name:  IMG_0814.jpg
Views: 3891
Size:  44.5 KB

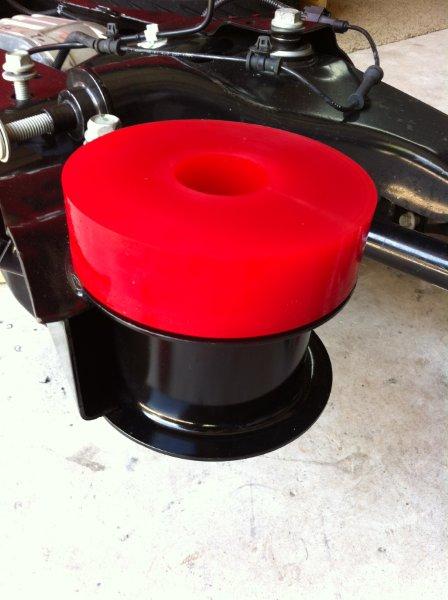

And.... The finshed bushings
Name:  IMG_0816.jpg
Views: 3901
Size:  38.5 KB

Name:  IMG_0818.jpg
Views: 3914
Size:  41.2 KB

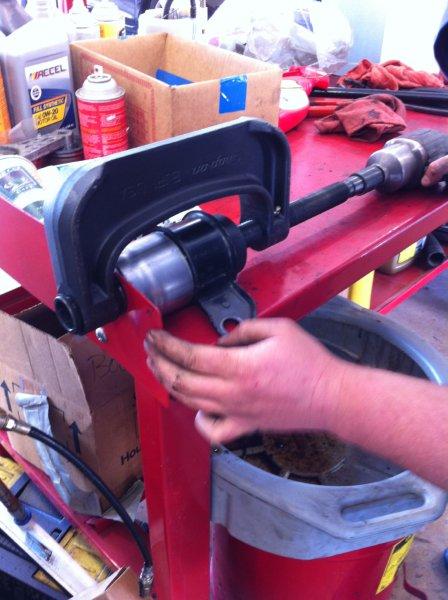

Next the upper control arm bushing was pressed out by a friend at a local garage using a ball joint press.
Name:  IMG_0825.jpg
Views: 3921
Size:  49.1 KB

The differential bushing are like sausage, we like how it tastes but we don't want to see how it's made. It wasn't pretty

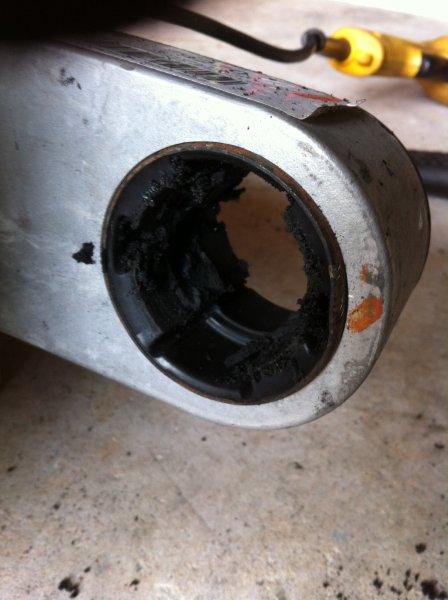

First I started by cutting the rubber core and steel ferrule out using a 1 3/4" hole saw. I used WD-40 as a cutting lubricant which kept the blade from binding in the hot rubber.
Name:  IMG_0826.jpg
Views: 3890
Size:  39.5 KB

Then I cut the steel jacket in two places using a sawsall (Careful not to cut into the housing) then punched the steel sleeve out using a steel punch and hammer

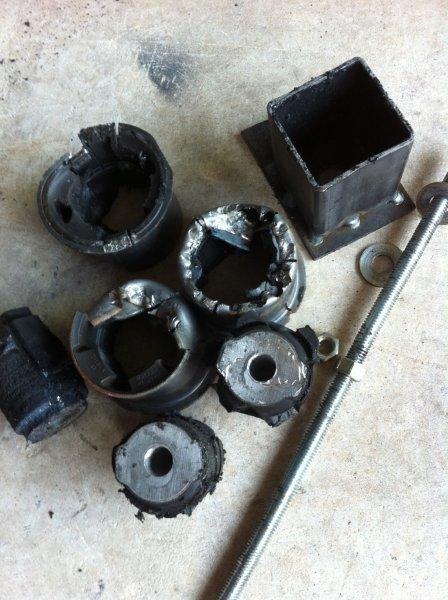

Here you can see the carnige. The diff bushings were like excerising a demon.
Name:  IMG_0827.jpg
Views: 3868
Size:  55.7 KB

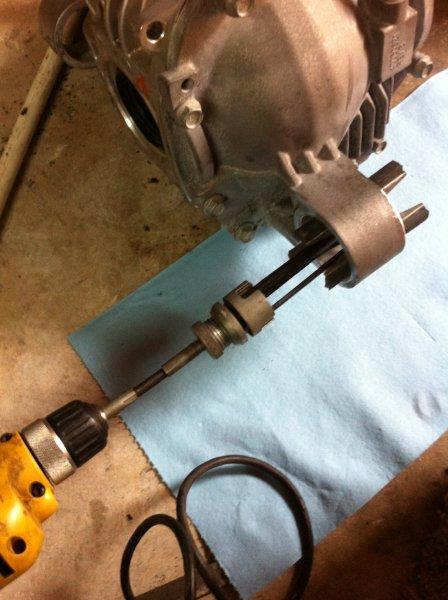

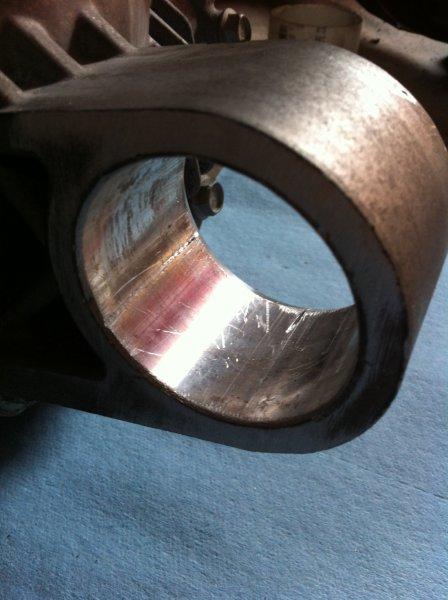

I did nick the housing a few times so I carefully filed down the sharp edges and used a little honing, careful not to really remove material but just make it smooth.

Name:  IMG_0829.jpg
Views: 3864
Size:  40.6 KB

Name:  IMG_0831.jpg
Views: 3843
Size:  45.7 KB

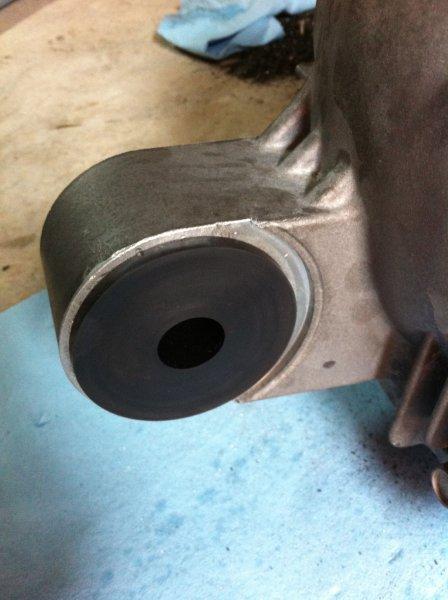

and here it is with the bushing in place. even with the clean-up work it only took about 10 minutes per bushing.
Name:  IMG_0832.jpg
Views: 3838
Size:  37.9 KB



More to come. This week I'll be getting a pinion depth guage and showing how I setup my 3.91 gears.

Last edited by jeremywes; 04-17-2013 at 08:29 AM. Reason: Changed pictures
jeremywes is offline   Reply With Quote
Old 04-15-2013, 09:44 AM   #2
Tyler360

Tyler360's Avatar

Drives: 2011 Camaro 2SS/RS
Join Date: Jul 2011
Location: Wittenberg, Wisconsin
Posts: 702
Awesome write up! Subscribed and thanks!
__________________
Tyler360 is offline   Reply With Quote
Old 04-16-2013, 06:06 PM   #3
was619
Billy The Kid

was619's Avatar

Drives: Cyber Grey 2SS/RS
Join Date: Jun 2009
Location: North Alabama
Posts: 614
I have done almost all of the bushings that you have shown here. another way to get the bushings out with out having to make the 'custom' tool out of pvc is heating the out side metal like you showed with a torch and then taking about 3-5 very firm hits on the top of the bushing to 'pop' them out. watch your toes....

Also I would definitely like to see your gear instal instructions. I am installing mine this weekend. And am also waiting for the pinion depth/backlash gauge to arrive.

thanks for the DIY!
__________________
CGM 2SS/RS[SIZE="1"]
Performance: LT Headers/Stainless Works cat-back, 225/233 Cam, 1LE 3.91 gears, Custom Tune, BMR suspension,
MGW Shifter, Stainless brake & clutch lines, Ideal G Master Cylinder, 275s on all 4 corners
Aesthetics: ZL1 Spoiler, DIY LED marker lights, AACPlasma DRL, Yellow Calipers, painted factory wheels
was619 is offline   Reply With Quote
Old 04-17-2013, 08:02 AM   #4
jeremywes

jeremywes's Avatar

Drives: 2012 Camaro SS
Join Date: Aug 2012
Location: Houston, TX
Posts: 506
Quote:
Originally Posted by was619 View Post
I have done almost all of the bushings that you have shown here. another way to get the bushings out with out having to make the 'custom' tool out of pvc is heating the out side metal like you showed with a torch and then taking about 3-5 very firm hits on the top of the bushing to 'pop' them out. watch your toes....

Also I would definitely like to see your gear instal instructions. I am installing mine this weekend. And am also waiting for the pinion depth/backlash gauge to arrive.

thanks for the DIY!
Thats a great tip although I hope to not have to do it again anytime soon!

I should get my depth/backlash gauges this evening but I'm having a hard time finding specs the only one I can confirm is 18-25 inch lbs of rotational torque for the bearing preload.

I still need torque, backlash and pinion depth specs etc. for everything else. do you have any of these specs?
jeremywes is offline   Reply With Quote
Old 04-17-2013, 08:10 AM   #5
jeremywes

jeremywes's Avatar

Drives: 2012 Camaro SS
Join Date: Aug 2012
Location: Houston, TX
Posts: 506
Here is a pic of the finished upper control arm bushings. I hope to have most of the rear cradle assembled this evening

Name:  IMG_08372.jpg
Views: 3808
Size:  49.8 KB

Torque Specs that I'll use for the re-assembly. I saved these from another post so I can't take credit for somone elses work here... but hope it helps.
  • 4 Strut Mount to Body Bolts 43lbft
  • Strut to Strut Mount Nut 33lbft
  • Strut to lower Control Arm 59lbft 120 degrees
  • Lower Control Arm Inner Bushing at Adjuster 85LBFT
  • Lower Control Arm at Knuckle Assembly 30lbft 120 degrees
  • Upper Control Arm Rear Bolt to Bushing 37lbft 120 degrees
  • Upper Control Arm Rear Bushing Bracket Bolts 59lbft 120 degrees
  • Upper Control Arm Pivot Joint 59lbft 120 degrees
  • Upper Control Arm to Knuckle Assembly 44LBFT 90 degrees
  • Toe Link inner to Subframe Adjuster 85LBFT
  • Toe Link to Knuckle Assembly Bolt 103 lbft
  • Trailing Arm to Subframe Assembly (Inner) 74lbft
  • Trailing Arm to Knuckle Asembly 30lbft 120 degrees
  • Front Cradle(Subframe) Bolts to Body 74lbft 120 degrees
  • RearCradle (Subframe) Bolts to Body 74lbft 120 degrees
  • Front Differential Bushings 59lbft
  • Rear Differential bushings 59lbft
  • Driveshaft to Differential 85LBFT
  • Caliper Bracket to Knuckle Assembly (L99, LS3) 30lbft 90 degrees
  • Caliper Bracket to Knuckle Assembly (LLT) 30lbft 90 degrees
  • Rear Sway Bar End link Nuts 36lbft
  • Sway bar Bushing Bracket bolts 16lbft

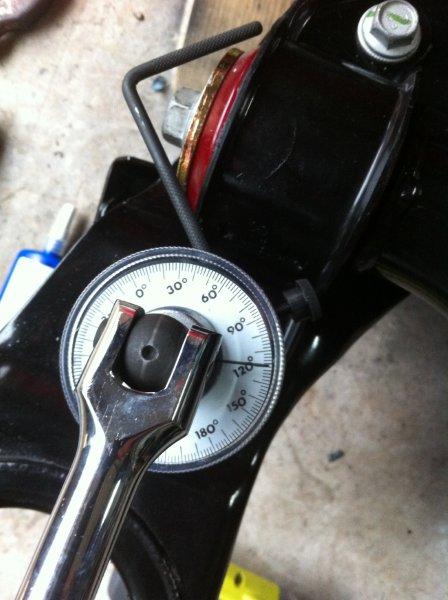

Here I'm installing the upper control arm bracket. After appling some Loctite I torqued the bolts to 59lbft and then 120Deg. I bought this handy little tool to show the degs of rotation.

Name:  120degs.jpg
Views: 3672
Size:  43.3 KB

Note: Although some will say it is overkill, TTY (Torque to Yield) bolts should not be reused.

Last edited by jeremywes; 04-18-2013 at 08:10 AM. Reason: added picture
jeremywes is offline   Reply With Quote
Old 04-17-2013, 06:08 PM   #6
was619
Billy The Kid

was619's Avatar

Drives: Cyber Grey 2SS/RS
Join Date: Jun 2009
Location: North Alabama
Posts: 614
Quote:
Originally Posted by jeremywes View Post
Thats a great tip although I hope to not have to do it again anytime soon!

I should get my depth/backlash gauges this evening but I'm having a hard time finding specs the only one I can confirm is 18-25 inch lbs of rotational torque for the bearing preload.

I still need torque, backlash and pinion depth specs etc. for everything else. do you have any of these specs?
For the backlash I read .005-.007
torque to seat the crush washer I have seen 150-200ftlbs. I haven't read anything on depth except along the line of the pattern looked good and that they didn't feel the need to measure because of it, so non was given.
I have a good article on patterning if you are interested that talked about what adjusts to make and all that.

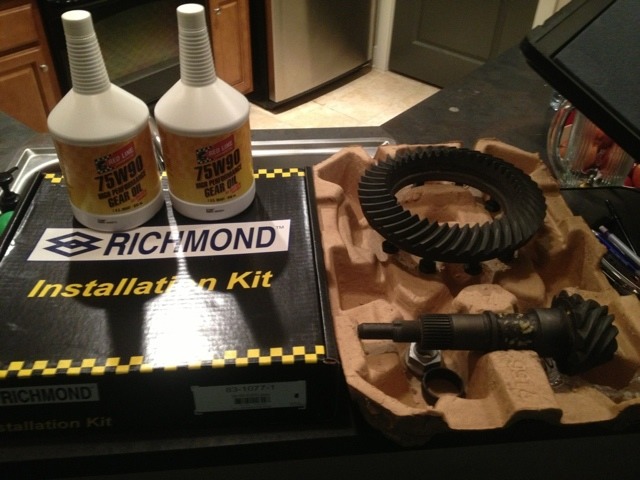

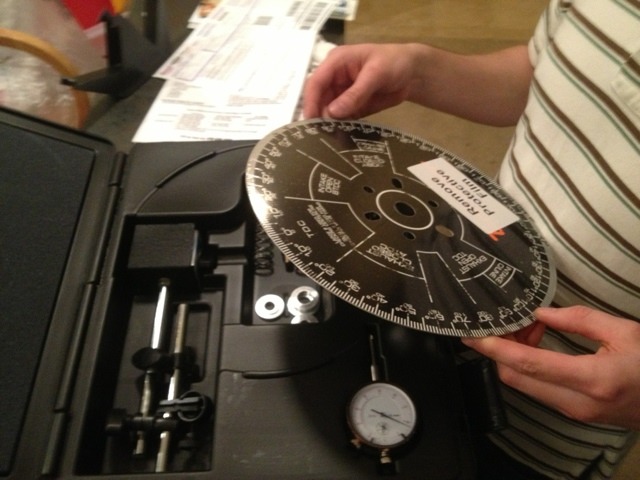

Also I got my parts in today! Here some teaser pics:
Name:  ImageUploadedByTapatalk1366236388.641803.jpg
Views: 3756
Size:  79.8 KB
Name:  ImageUploadedByTapatalk1366236397.357947.jpg
Views: 3762
Size:  73.5 KB
That is the full Richmond kit from Jegs, along with fluid twice over, and a trick flow multi use gauge kit from summit. The gears are from parts taxi a forum sponsor!
Attached Images

__________________
CGM 2SS/RS[SIZE="1"]
Performance: LT Headers/Stainless Works cat-back, 225/233 Cam, 1LE 3.91 gears, Custom Tune, BMR suspension,
MGW Shifter, Stainless brake & clutch lines, Ideal G Master Cylinder, 275s on all 4 corners
Aesthetics: ZL1 Spoiler, DIY LED marker lights, AACPlasma DRL, Yellow Calipers, painted factory wheels
was619 is offline   Reply With Quote
Old 04-18-2013, 02:28 AM   #7
was619
Billy The Kid

was619's Avatar

Drives: Cyber Grey 2SS/RS
Join Date: Jun 2009
Location: North Alabama
Posts: 614
From what I have read on a few of the threads on here i won't actually be needing the instal kit. Just the pinion, crush sleeve, nut, and ring gear and fluid. Many said that they were able to use the OE shim setup because of the way its designed and that it makes it much simpilar because of it.
I will still measure for all of the different things and check the pattern but if its all checks out then I will be shipping the instal kit back.
__________________
CGM 2SS/RS[SIZE="1"]
Performance: LT Headers/Stainless Works cat-back, 225/233 Cam, 1LE 3.91 gears, Custom Tune, BMR suspension,
MGW Shifter, Stainless brake & clutch lines, Ideal G Master Cylinder, 275s on all 4 corners
Aesthetics: ZL1 Spoiler, DIY LED marker lights, AACPlasma DRL, Yellow Calipers, painted factory wheels
was619 is offline   Reply With Quote
Old 04-18-2013, 08:12 AM   #8
jeremywes

jeremywes's Avatar

Drives: 2012 Camaro SS
Join Date: Aug 2012
Location: Houston, TX
Posts: 506
Quote:
Originally Posted by was619 View Post
From what I have read on a few of the threads on here i won't actually be needing the instal kit. Just the pinion, crush sleeve, nut, and ring gear and fluid. Many said that they were able to use the OE shim setup because of the way its designed and that it makes it much simpilar because of it.
I will still measure for all of the different things and check the pattern but if its all checks out then I will be shipping the instal kit back.
I'm also hoping that I get lucky and the factory shims get me right back in spec but just incase I want to have the right guages ready to get everything right. Thanks for the pics
jeremywes is offline   Reply With Quote
Old 04-18-2013, 08:36 AM   #9
jeremywes

jeremywes's Avatar

Drives: 2012 Camaro SS
Join Date: Aug 2012
Location: Houston, TX
Posts: 506
I finished collecting all the tools. Some I may not need but wanted anyways and some that are a must have. If I reassemble and the factory shims get everything lined up then great but if I need to adjust some shims it's a lot easier with the right tools.

But I'm sure that GM assembled MY rear end with great care and precision

So here are my tools

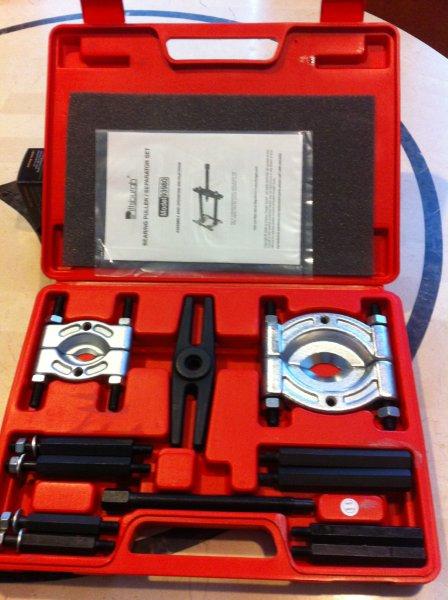

This bearing separator/puller is from Pittsburgh tools and I picked it up for under 30 bucks. I'll used it to separate the yoke from the pinion as well as the pinion bearing.
Name:  IMG_0840.jpg
Views: 3715
Size:  47.3 KB

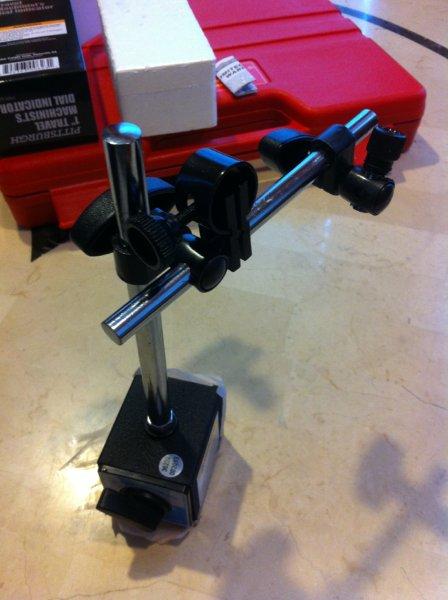

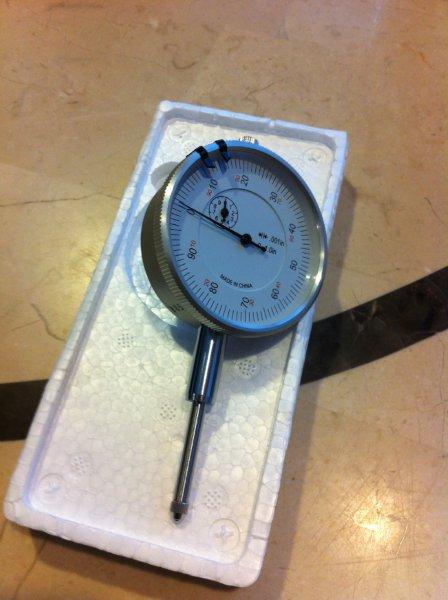

Next is a dial indicator and magnetic base for measuring backlash
Name:  IMG_0841.jpg
Views: 3648
Size:  39.1 KB

Name:  IMG_0842.jpg
Views: 3660
Size:  37.6 KB

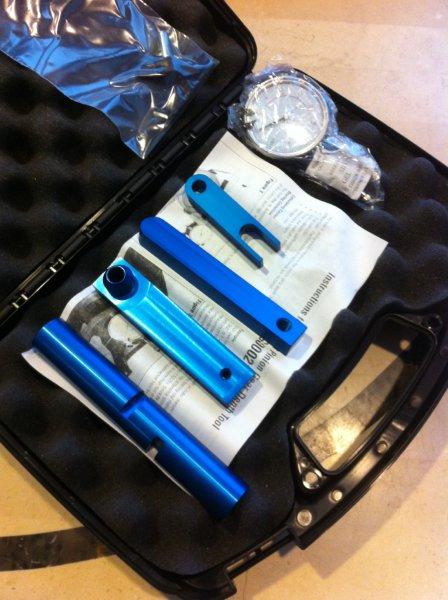

This is a universal pinion depth gauge. I may not need this but I plan on using it on some future jobs when I'll be starting from scratch without the aid of the factory shims.
Name:  IMG_0843.jpg
Views: 3703
Size:  51.5 KB

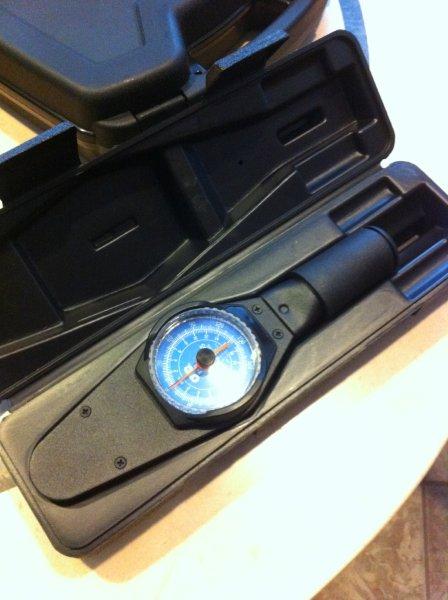

One of the most important tools is this inch pound dial indicating torque wrench. This one that I picked up from summit has a memory dial and a nice case but it wasn't cheap. I paid $200 for this one.
Name:  IMG_0844.jpg
Views: 3648
Size:  39.1 KB

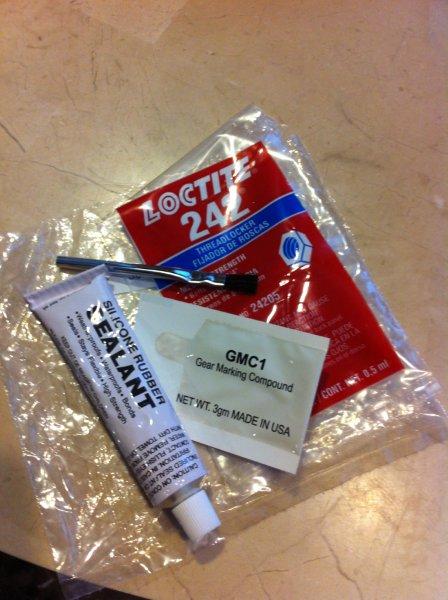

I also picked up this assembly bag for a couple bucks that has gear marking compound and well as a brush, loctite and some sealant. It was too convenient to pass up.
Name:  IMG_0846.jpg
Views: 3766
Size:  49.2 KB

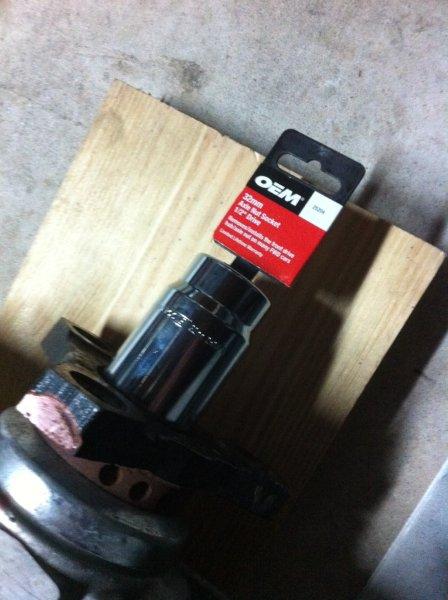

Last is a 32mm deep well axel nut socket. I had a standard 32mm socket but it wasn't deep enough so I picked this one up from AutoZone for 10 bucks.
Name:  IMG_0850.jpg
Views: 3609
Size:  42.5 KB

In addition you'll need standard sockets, a click type lbft torque wrench and a few other common tool which I will highlight as I walk thru the project
jeremywes is offline   Reply With Quote
Old 04-18-2013, 08:44 AM   #10
jeremywes

jeremywes's Avatar

Drives: 2012 Camaro SS
Join Date: Aug 2012
Location: Houston, TX
Posts: 506
Quote:
Originally Posted by was619 View Post
For the backlash I read .005-.007
torque to seat the crush washer I have seen 150-200ftlbs. I haven't read anything on depth except along the line of the pattern looked good and that they didn't feel the need to measure because of it, so non was given.
I have a good article on patterning if you are interested that talked about what adjusts to make and all that.
Also I got my parts in today! Here some teaser pics:
Attachment 499512
Attachment 499513
That is the full Richmond kit from Jegs, along with fluid twice over, and a trick flow multi use gauge kit from summit. The gears are from parts taxi a forum sponsor!
You may want to check if you need to run a friction modifier additive with that fluid. I run Royal purple and it says no friction modifier is needed but better safe than sorry.
jeremywes is offline   Reply With Quote
Old 04-20-2013, 12:02 PM   #11
was619
Billy The Kid

was619's Avatar

Drives: Cyber Grey 2SS/RS
Join Date: Jun 2009
Location: North Alabama
Posts: 614
Jeremywes. That bearing puller kit won't work by the way.
It's not nearly big enough.
Might want to go get the bigger one before you start
__________________
CGM 2SS/RS[SIZE="1"]
Performance: LT Headers/Stainless Works cat-back, 225/233 Cam, 1LE 3.91 gears, Custom Tune, BMR suspension,
MGW Shifter, Stainless brake & clutch lines, Ideal G Master Cylinder, 275s on all 4 corners
Aesthetics: ZL1 Spoiler, DIY LED marker lights, AACPlasma DRL, Yellow Calipers, painted factory wheels
was619 is offline   Reply With Quote
Old 04-20-2013, 12:08 PM   #12
was619
Billy The Kid

was619's Avatar

Drives: Cyber Grey 2SS/RS
Join Date: Jun 2009
Location: North Alabama
Posts: 614
I have used their(redline) friction modifier in the past with no change in gear noise from the stock setup. So I'm not really sure how much it matters. I originally bought a 5oz bottle so ill just use the other half when I get ready to refill it all
__________________
CGM 2SS/RS[SIZE="1"]
Performance: LT Headers/Stainless Works cat-back, 225/233 Cam, 1LE 3.91 gears, Custom Tune, BMR suspension,
MGW Shifter, Stainless brake & clutch lines, Ideal G Master Cylinder, 275s on all 4 corners
Aesthetics: ZL1 Spoiler, DIY LED marker lights, AACPlasma DRL, Yellow Calipers, painted factory wheels
was619 is offline   Reply With Quote
Old 04-21-2013, 01:49 PM   #13
was619
Billy The Kid

was619's Avatar

Drives: Cyber Grey 2SS/RS
Join Date: Jun 2009
Location: North Alabama
Posts: 614
Just for clarification purposes
Redline gear oil does not need friction modifier as per the bottle. Mobile 1 does since there are no markings of it having modifier in there.
__________________
CGM 2SS/RS[SIZE="1"]
Performance: LT Headers/Stainless Works cat-back, 225/233 Cam, 1LE 3.91 gears, Custom Tune, BMR suspension,
MGW Shifter, Stainless brake & clutch lines, Ideal G Master Cylinder, 275s on all 4 corners
Aesthetics: ZL1 Spoiler, DIY LED marker lights, AACPlasma DRL, Yellow Calipers, painted factory wheels
was619 is offline   Reply With Quote
Old 04-22-2013, 07:38 AM   #14
332

Drives: 2SS
Join Date: Sep 2012
Location: middle of nowhere
Posts: 136
Thank you for this DIY thread! Very informative!!!
332 is offline   Reply With Quote
Old 04-22-2013, 09:48 AM   #15
jeremywes

jeremywes's Avatar

Drives: 2012 Camaro SS
Join Date: Aug 2012
Location: Houston, TX
Posts: 506
3.91 Gear swap

On to the 3.91 gear swap.

I was impressed by this little cordless impact gun. It handled 90% of the work, however I did have to use a more powerful corded impact gun for some of the heavy lifting
Name:  IMG_0850.jpg
Views: 3500
Size:  44.4 KB

Name:  IMG_0851.jpg
Views: 3500
Size:  44.5 KB
This puller was too small so I had to open it up with a grinder but I was able to make it work. a 3 arm puller would have worked better.

Name:  IMG_0852.jpg
Views: 3486
Size:  49.2 KB
Here is a picture after the yoke is removed

Name:  IMG_0854.jpg
Views: 3476
Size:  68.9 KB
Next I marked the bearing caps left and right with a small chisel

Name:  IMG_0856.jpg
Views: 3464
Size:  42.7 KB
Here you can see that I have layed everything out exactly how it came out of the housing so I can ensure it goes back in the same way.

Name:  IMG_0857.jpg
Views: 3463
Size:  48.3 KB
To remove the pinion I hammered it over a piece of wood so it had something to fall on.

Name:  IMG_0858.jpg
Views: 3462
Size:  41.8 KB
Here is the pinion removed from the housing

Name:  IMG_0860.jpg
Views: 3456
Size:  52.1 KB
Next remove the bolts that attach the ring.
NOTE: These are reverse thread bolts (lefty tighty, Righty Loosey)

Name:  IMG_0861.jpg
Views: 3442
Size:  44.7 KB
Once the bolts have been removed tap the ring off, I had to gently pry to get it started. Again I used a piece of wood so it could fall safely

Name:  IMG_0862.jpg
Views: 3423
Size:  33.8 KB
I placed the carrier in the freezer and the ring on a propane BBQ. They went together very easily after that. Otherwise they would need to be pressed on.

Name:  IMG_0863.jpg
Views: 3428
Size:  49.8 KB

Name:  IMG_0875.jpg
Views: 3424
Size:  46.5 KB

Name:  IMG_0876.jpg
Views: 3427
Size:  46.3 KB

Next using the new bolts from the GM kit I attached the ring

Name:  IMG_0877.jpg
Views: 3415
Size:  53.7 KB
I removed and reused the old pinion bearing using a friends press. I would have just used a new one but the car only has 3k miles on it and the local dealer didn't carry it in stock.

Now same operation for the pinion bearing.

Name:  IMG_0878.jpg
Views: 3435
Size:  76.1 KB
Here you can see the old pinion, shim, bearing, crush sleeve. Make sure it goes back on the pinion the exact same way.

Name:  IMG_0879.jpg
Views: 3498
Size:  64.3 KB
Here is the old crush sleeve compared to the new one

Name:  IMG_0880.jpg
Views: 3426
Size:  53.7 KB
I made a little tool out of 2" PVC pipe to tap the bearing on. It didn't take much pressure to tap it on once the pinion had been in the freezer and the bearing was heated.

Name:  IMG_0981.jpg
Views: 3426
Size:  39.9 KB
Next CLEAN the pinion yoke by scraping all of the white factory paste out of the splines. Grease the inner bearing and crush sleeve to make sure it doesn't bind when you begin re-assembly.

Here I am using a pry bar and two of the yoke bolts to get some leverage as I tighten the pinion nut down to crush the pinion crush sleeve. Here is where a strong impact gun will come in handy

Name:  IMG_0982.jpg
Views: 3438
Size:  43.2 KB
This is the tricky part. Tighten the pinion nut until you achieve 18 - 25 inch pounds of rotational torque. Work in slow bursts and take your time because you can't un-crush if you go past the torque range of bearing preload.

Name:  IMG_0983.jpg
Views: 3382
Size:  37.1 KB
Once you have the proper rotational torque pin the pinion nut by punching it into the pinion recess

Name:  IMG_0984.jpg
Views: 3393
Size:  40.0 KB
Now insert the carrier into the housing keeping all of the bearing races and shims on the same sides that they came from.

Name:  IMG_0985.jpg
Views: 3386
Size:  43.4 KB
Here I used a 2x4 to tap the left side shim into place.

Name:  IMG_0986.jpg
Views: 3375
Size:  32.3 KB
Now install the bearing caps and torque to spec. I used 77ftlbs

NOTE: GM makes 3 different rear ends so make sure you know what you have. I am installing this into a 2012 SS with the 218mm axles

Remember to use anti-seize anytime a steel bolt goes into an aluminum housing

Name:  IMG_0987.jpg
Views: 3380
Size:  88.9 KB
Here are some GM spec that a friend printed out for me

Name:  IMG_0988.jpg
Views: 3356
Size:  44.8 KB
I made a steel plate so I could get the magnetic base dial indicator to attach to the housing.

Name:  IMG_0989.jpg
Views: 3364
Size:  39.3 KB
Here is the zeroed dial indicator

Name:  IMG_0990.jpg
Views: 3349
Size:  39.7 KB
Here the backlash is .003" GM spec is .002 - .005

Name:  IMG_0991.jpg
Views: 3361
Size:  36.4 KB

Name:  IMG_0992.jpg
Views: 3342
Size:  36.6 KB
Here you can see the pattern on the DRIVE side of the ring gear teeth

Name:  IMG_0993.jpg
Views: 3360
Size:  41.2 KB
Here you can see the pattern on the COAST side of the ring gear teeth

Name:  IMG_0994.jpg
Views: 3346
Size:  39.8 KB
Next reinstall the case cover. I used 55lbft

Remember to use anti-seize anytime a steel bolt goes into an aluminum housing

Name:  IMG_0995.jpg
Views: 3322
Size:  39.7 KB
Remember the gear lube WITH a friction modifier

Name:  IMG_0996.jpg
Views: 3309
Size:  45.1 KB
Here are some GM specs

Name:  IMG_0997.jpg
Views: 3306
Size:  44.4 KB
Here is where you can see what rear end your car has. You can see mine is a 218mm axle

Last edited by jeremywes; 04-22-2013 at 09:54 AM. Reason: Text edit
jeremywes is offline   Reply With Quote
Old 04-29-2013, 08:35 AM   #16
jeremywes

jeremywes's Avatar

Drives: 2012 Camaro SS
Join Date: Aug 2012
Location: Houston, TX
Posts: 506
Update- I corrected the Axle ratio with a diablo tunner so now the TC is happy and speed is registering correctly. I do notice a very subtle vibration from the diff bushings but no normal person could tell the difference. I finished my initial break-in on the gears and tried a few 75% 0-60 pulls and you can really notice the torque down low.
jeremywes is offline   Reply With Quote
Old 05-01-2013, 04:26 AM   #17
IPT


Drives: '02 Trailblazer, '12 Camaro 2SS/RS
Join Date: Jun 2012
Location: AK
Posts: 781
excellent write up and great skills you got, awesome. I can only imagine the pull with those gears!
IPT is offline   Reply With Quote
Old 05-01-2013, 08:52 AM   #18
driyac



driyac's Avatar

Drives: 2012 45th Anniversary 2SS
Join Date: Mar 2012
Location: West Chester Ohio
Posts: 5,641
Quote:
Originally Posted by IPT View Post
excellent write up and great skills you got, awesome. I can only imagine the pull with those gears!
Times a billion! You should open up a shop ( just kidding). You have been very detailed and meticulous with your build.
__________________
driyac is offline   Reply With Quote
Old 05-01-2013, 09:37 AM   #19
jeremywes

jeremywes's Avatar

Drives: 2012 Camaro SS
Join Date: Aug 2012
Location: Houston, TX
Posts: 506
Quote:
Originally Posted by IPT View Post
excellent write up and great skills you got, awesome. I can only imagine the pull with those gears!
They do pull hard, even when cruising at higher speeds. 1st gear is a neck snapper!

Quote:
Originally Posted by driyac View Post
Times a billion! You should open up a shop ( just kidding). You have been very detailed and meticulous with your build.
Thanks guys! I hope this build helps anyone wanting to do it on their own.
jeremywes is offline   Reply With Quote
Old 05-01-2013, 09:46 AM   #20
silverz28

Drives: 1996 Camaro Z28, 2012 2SS/RS
Join Date: Aug 2012
Location: Texas
Posts: 171
Great "How To"! Although I would probably not do this myself on my daily driver. I love the freezer and BBQ. Great way to expand and contract metal.
__________________
2012 2SS/RS IOM, LS3, Aftermarket Hurst shifter, IOM interior, Borla "S", Big Flow headers, ADM Race cold air, BMR 1" lowering springs, All installed and Dyno Tuned by ARD in Houston, TX, 420 RWHP, 420 RWT
Added SLP Supercharger with stock pulley: 500 RWHP, 507 RWT

Last edited by silverz28; 05-02-2013 at 08:52 AM.
silverz28 is offline   Reply With Quote
Old 05-02-2013, 12:47 AM   #21
hairzee

hairzee's Avatar

Drives: 2010 SS Camaro
Join Date: Sep 2009
Location: Orange County, CA
Posts: 178
WOW. You da man!

I have started my front bushing replacement and have one done.... what a pain in the ass this is going to be.

I had the gear swap done at a shop for couple hundred... small price to pay for me not screwing that up.

thanks for your time and knowledge.... VERY much appreciated.
__________________
2010 SS, CAI intake, Kooks 1 7/8 LT with high flow cats, Pfadt Sways and Springs, Lloyds Mats, Magnaflow 3"cat back, Ported TB, JRE tune, Rx Catch Can, Forgestar F14, BMR subframe, BMR 4point strut brace.
hairzee is offline   Reply With Quote
Old 05-02-2013, 09:55 AM   #22
jeremywes

jeremywes's Avatar

Drives: 2012 Camaro SS
Join Date: Aug 2012
Location: Houston, TX
Posts: 506
Quote:
Originally Posted by hairzee View Post
WOW. You da man!

I have started my front bushing replacement and have one done.... what a pain in the ass this is going to be.

I had the gear swap done at a shop for couple hundred... small price to pay for me not screwing that up.

thanks for your time and knowledge.... VERY much appreciated.
It is a pain in the ass for sure! But well worth it. If you can do it over several days it makes it easier. The whole project took me a little over 10 hours over the course of 2 weekends and a few beers

Good luck
jeremywes is offline   Reply With Quote
Old 05-02-2013, 02:24 PM   #23
PfadtRacing

PfadtRacing's Avatar

Drives: 2010 Camaro, 2006 Z06
Join Date: Feb 2009
Location: SLC, UT
Posts: 3,375
Great write-up!
PfadtRacing is offline   Reply With Quote
Old 05-03-2013, 12:06 PM   #24
hairzee

hairzee's Avatar

Drives: 2010 SS Camaro
Join Date: Sep 2009
Location: Orange County, CA
Posts: 178
How do i grt the new bushings in. I dont see anyone else having a problem with this step. So what am I missing here.
Attached Images

__________________
2010 SS, CAI intake, Kooks 1 7/8 LT with high flow cats, Pfadt Sways and Springs, Lloyds Mats, Magnaflow 3"cat back, Ported TB, JRE tune, Rx Catch Can, Forgestar F14, BMR subframe, BMR 4point strut brace.
hairzee is offline   Reply With Quote
Old 05-04-2013, 11:16 AM   #25
jeremywes

jeremywes's Avatar

Drives: 2012 Camaro SS
Join Date: Aug 2012
Location: Houston, TX
Posts: 506
Quote:
Originally Posted by hairzee View Post
How do i grt the new bushings in. I dont see anyone else having a problem with this step. So what am I missing here.
I'm not sure about this one. Post as a new thread and I'm sure you'll get a solution from someone who has already done it! Good luck
jeremywes is offline   Reply With Quote

Reply

Thread Tools

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off

Forum Jump


All times are GMT -5. The time now is 01:19 PM.


Powered by vBulletin® Version 3.8.7
Copyright ©2000 - 2014, vBulletin Solutions, Inc.
