Greetings all. Last Sunday a friend and I dove in and got my LFX high flow cats from SOLO installed. It occurred to me that some folks may approach this better with pictures to go along with the instructions so here goes.

Disclaimer: This is merely an account of my experience and all tips, tricks, and instructions given are to be used at your own risk. It is always recommended to consult the supplied instructions and follow all manufacturer's recommended procedures.

First, some helpful tips:

1) Always bring a buddy. This really isn't a solo task, no pun intended. Having a helper around, even just to "supervise" is immensely helpful. Particularly when you're under the car and need things handed to you. Even better if you've got extra tools and can both be working above and below the car at the same time.

2) Plan for this to be a good day's work. Going slowly, taking pictures, etc., took us about 5 to 6 hours. An efficient tag-team could probably knock it out inside of 3-4 but ymmv.

3) Disconnect the battery by removing the negative cable before starting work. The starter is on the driver's side and the terminals are exposed. It's just not worth the risk.

4) The instructions I received seem like they were for the LLT. The description of the bolts and how the cats are mounted seemed a bit excessive compared to reality. Just know you're dealing with, at best, 4 studs and 4 nuts on each side, and that's it aside from the couplers below. No washers, lock nuts, etc. are involved.

5) Reuse all stock hardware including gaskets. Instructions allude to at least gaskets being included, they weren't and aren't needed anyway.

6) Unless your O2 sensors are particularly forgiving and/or your exhaust is still a little warm (never hot, for safety reasons), you're going to need an O2 sensor socket, available to buy/rent from your local auto parts store. Just do it and save yourself the trouble.

7) Could just be my application but I had to fight the coupler on the passenger side as the pipes didn't line up well to that side of my Ark cat-back. Just be prepared to contort your body into several odd shapes to get this done. It's possible that doing both couplers at the same time (line both up evenly and slide the couplers on) may work better instead of doing one before moving to the next. Again, your application may differ and both of your pipes may line up perfect. If so, kudos to you.

Now on to the pictures! Orientation may be hard to imagine on a couple of these but you'll know it when you see it. Apologies in advance.

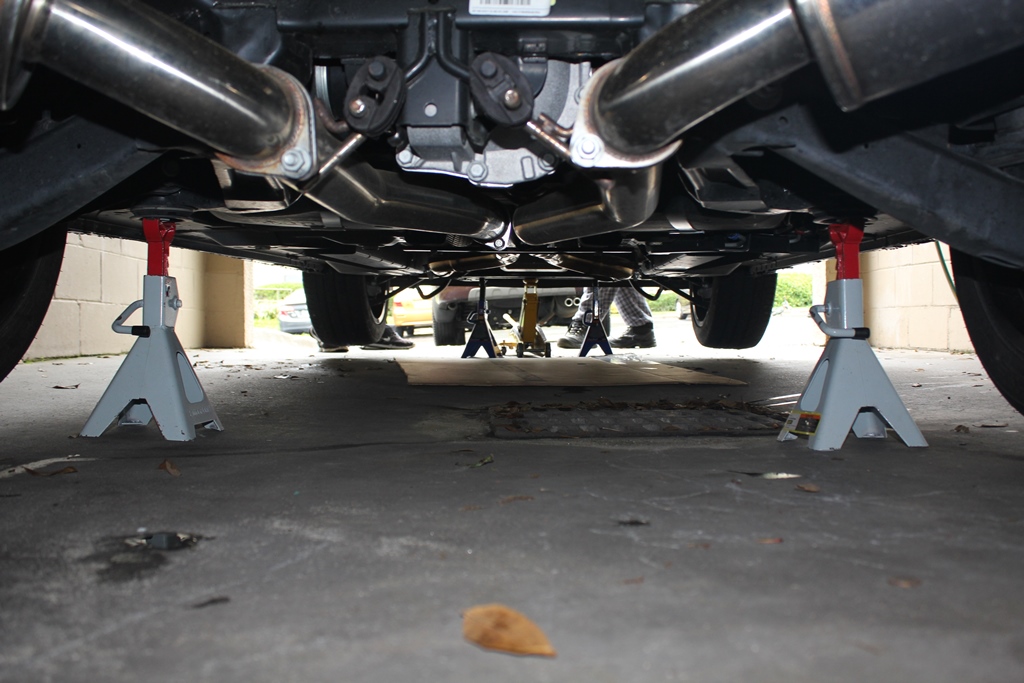

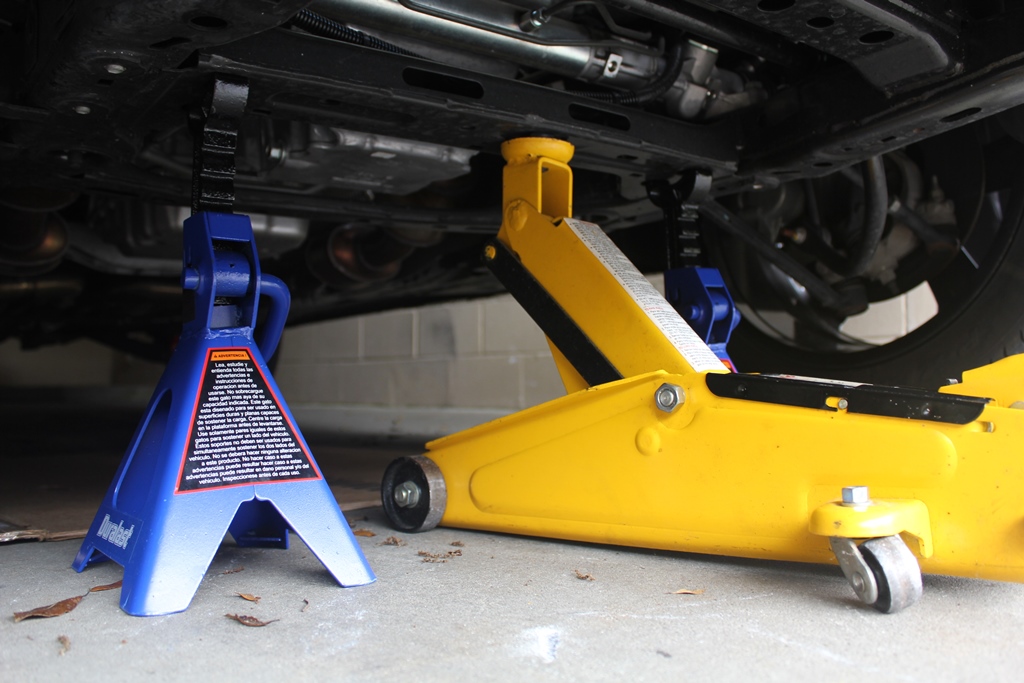

First, the setup. We used a jack and stands. You may have ramps and that should work fine as well.

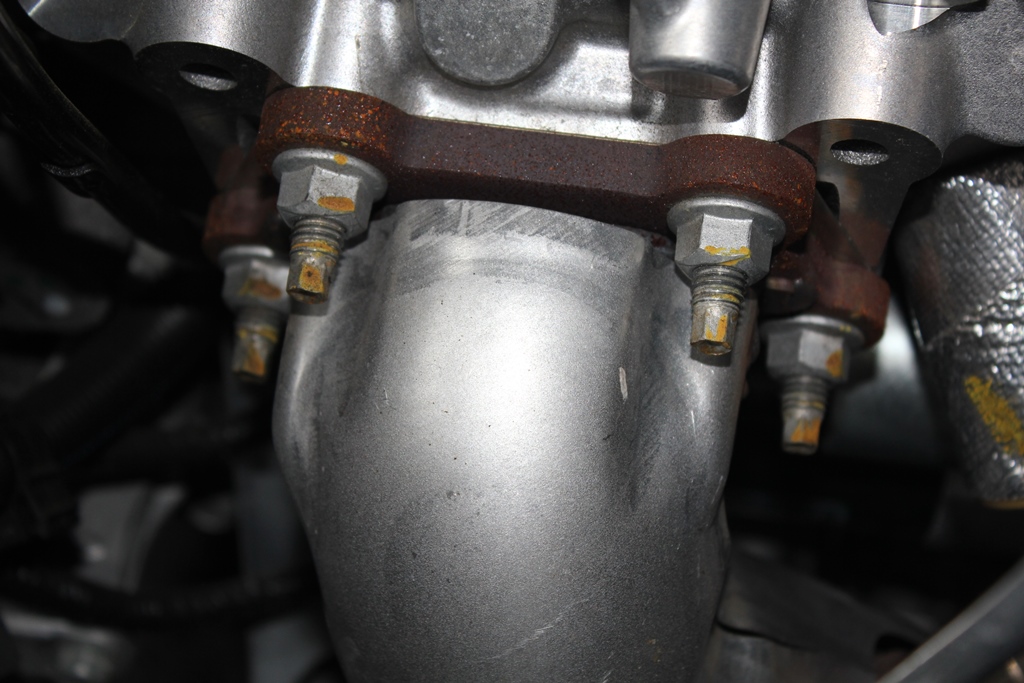

Here's what the driver's side bolts look like. This is the "easy" side. It should be noted at this point that when trying to remove the 15mm nuts, you may find that the stud comes out of the block instead, with the nut seized to it. I assume this is fine, just make sure all is tight and secure going back in. It should be noted also that the stud itself has a 7mm hex end to it. That will be important to note on the passenger side.



Now the passenger side. This is from under the car looking up after the cat was removed. I had a picture from up top but can't find it. Regardless, for all but possibly the top front bolt on this side, you're better off getting them from below. The worst one of all is the top rear as you can see here, partially obscured by the metal piping right next to it. This is where the aforementioned 7mm socket may be handy instead of going for the bolt. Be very careful not to round off the end of the stud. A box-end wrench is also helpful here, even better would be a ratcheting version.

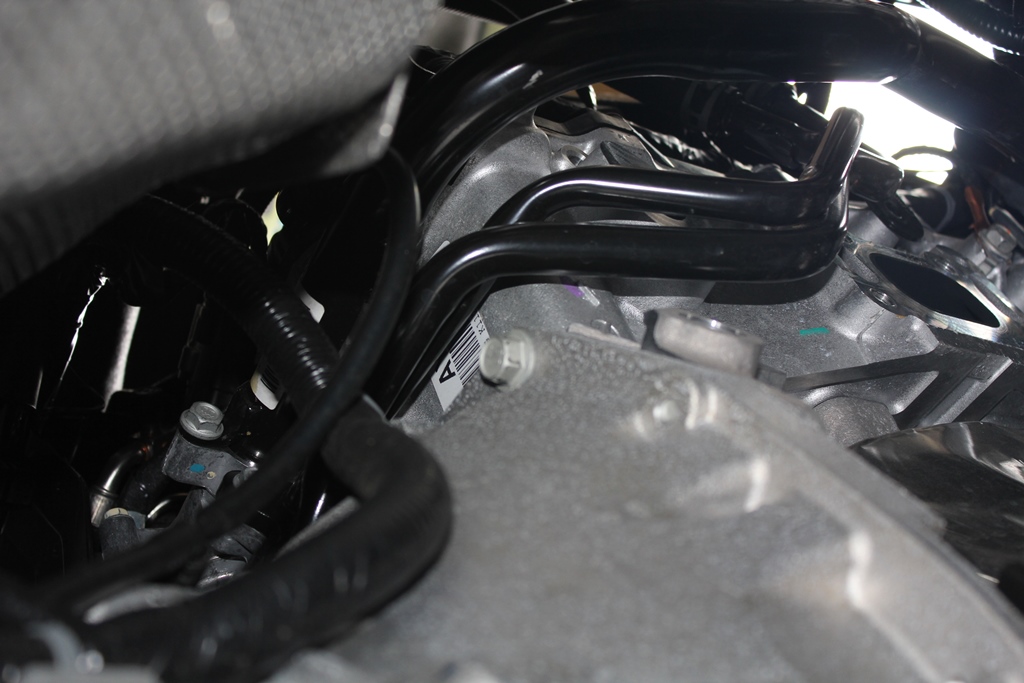

Another tip: The metal piping obscuring the top-rear bolt is welded to a bracket which is mounted to the block right above the exhaust. In this picture you can see the bolt is removed. The pipes won't move much (and shouldn't be forced) but may be enough wiggle room to make getting the top-rear bolt out a little easier.

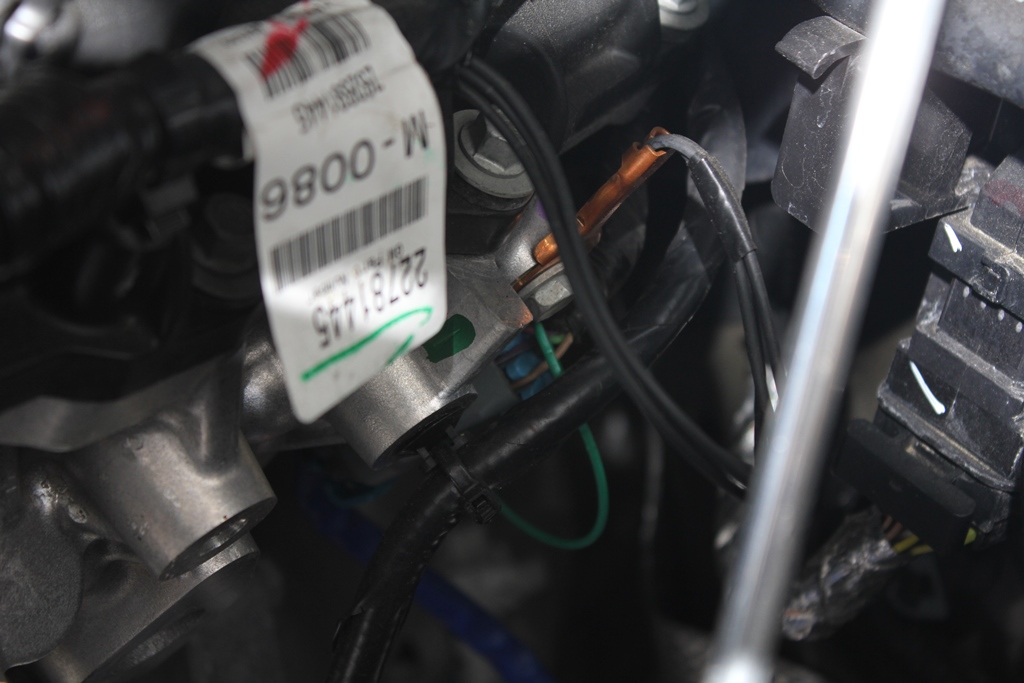

Now the O2 sensors. Each of them has a plastic pin that goes through the clip which must be pulled out. The top two pins are green and are attached via a keeper to the harness. The bottom two pins are gray and are not attached to the harness.

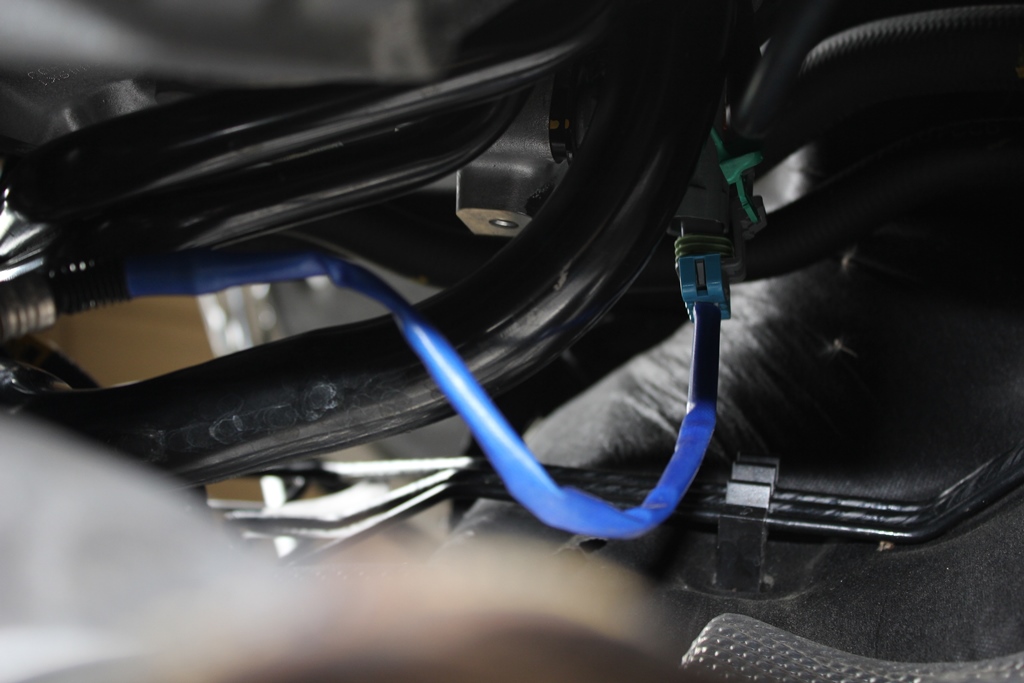

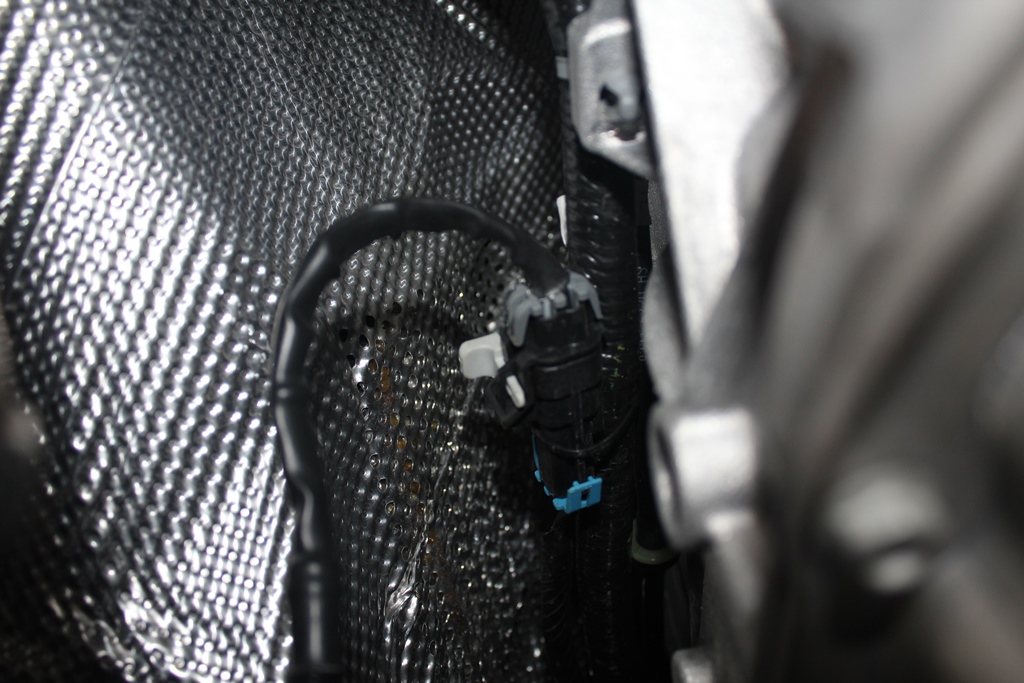

Drivers side top, top from underneath, lower from underneath:

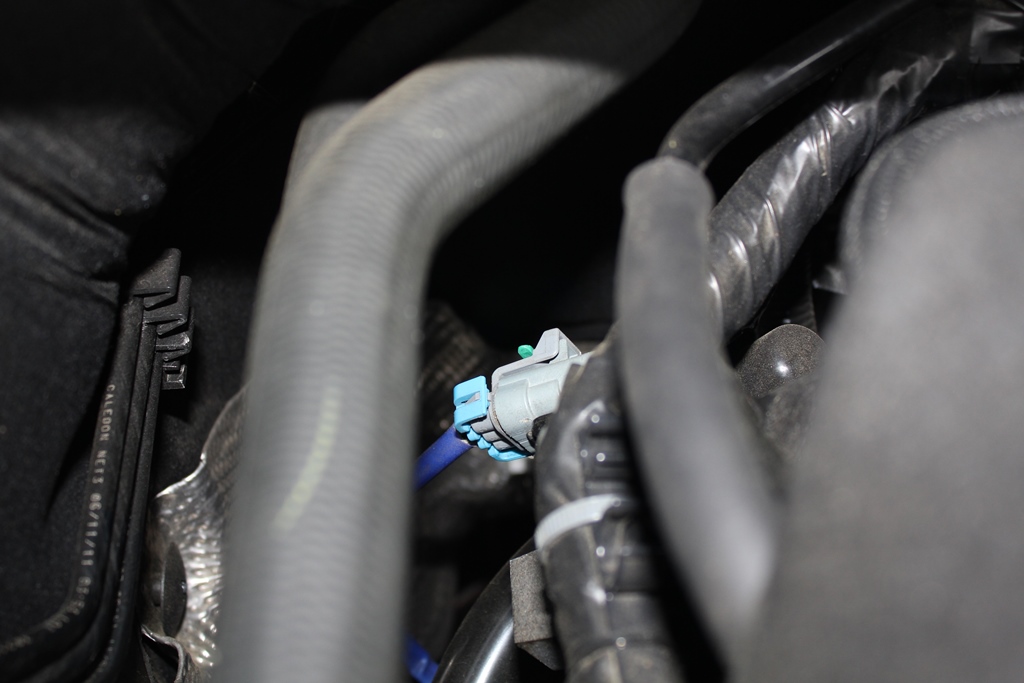

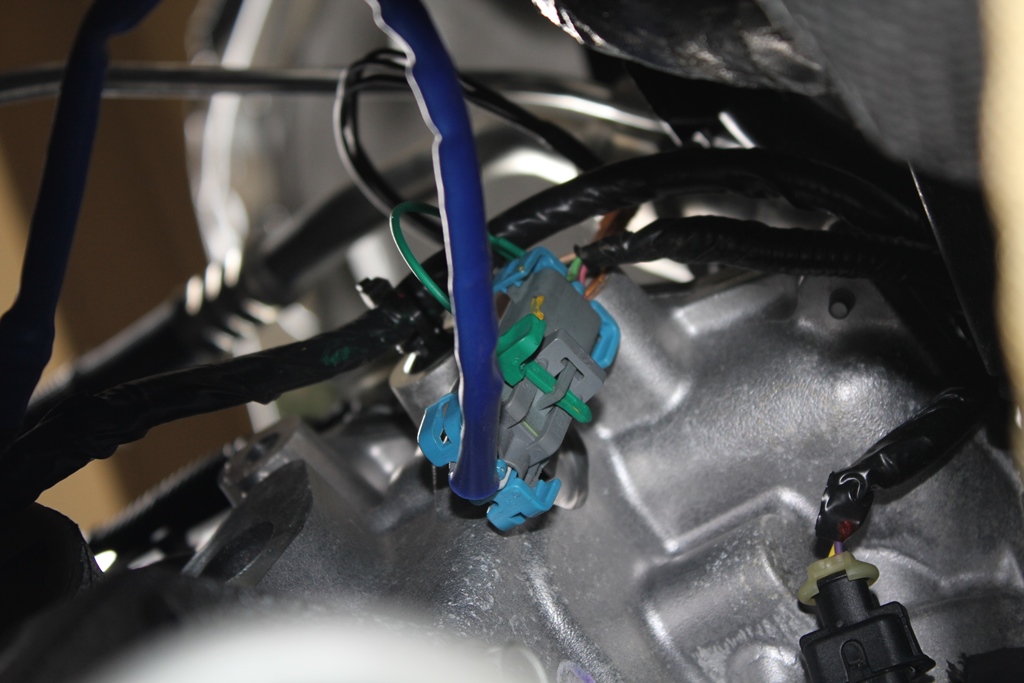

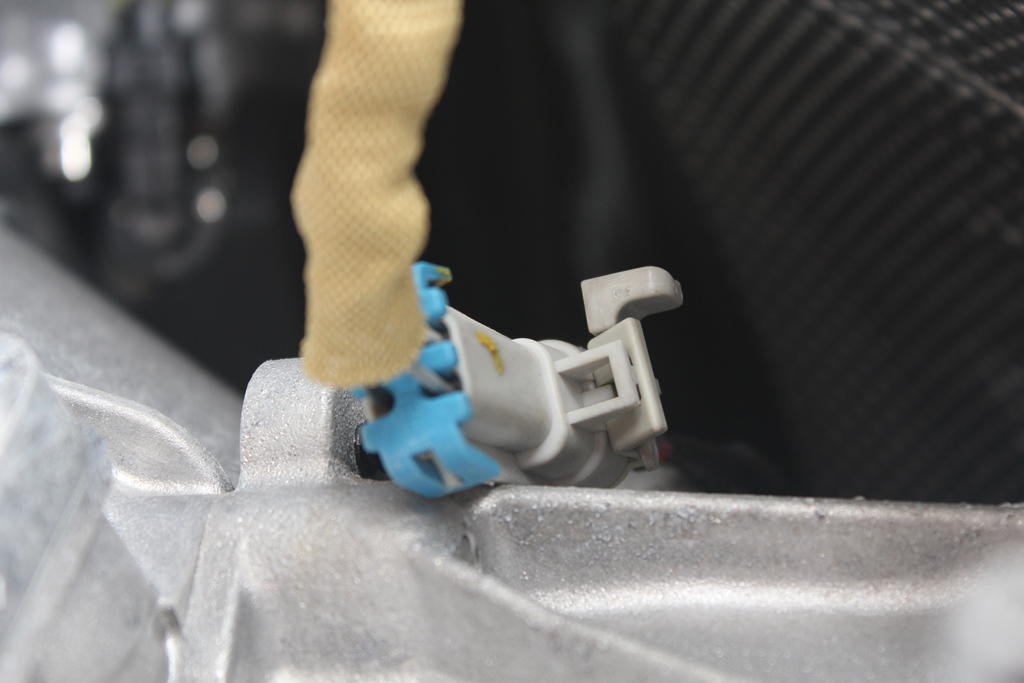

Passenger side top, top from underneath (after it was disconnected), lower from underneath:

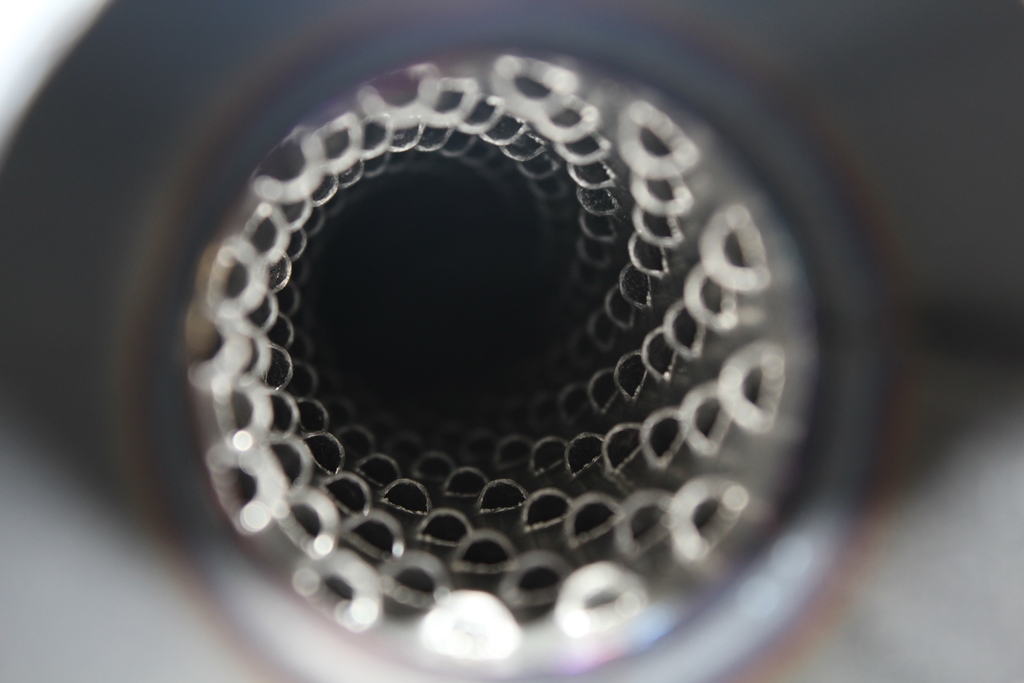

Bonus artsy pic:





So there you have it. Not a bad day's work I'd say. If you have any questions, please ask.

Enjoy going SOLO!
