sav1 · 09-11-2009, 02:10 AM

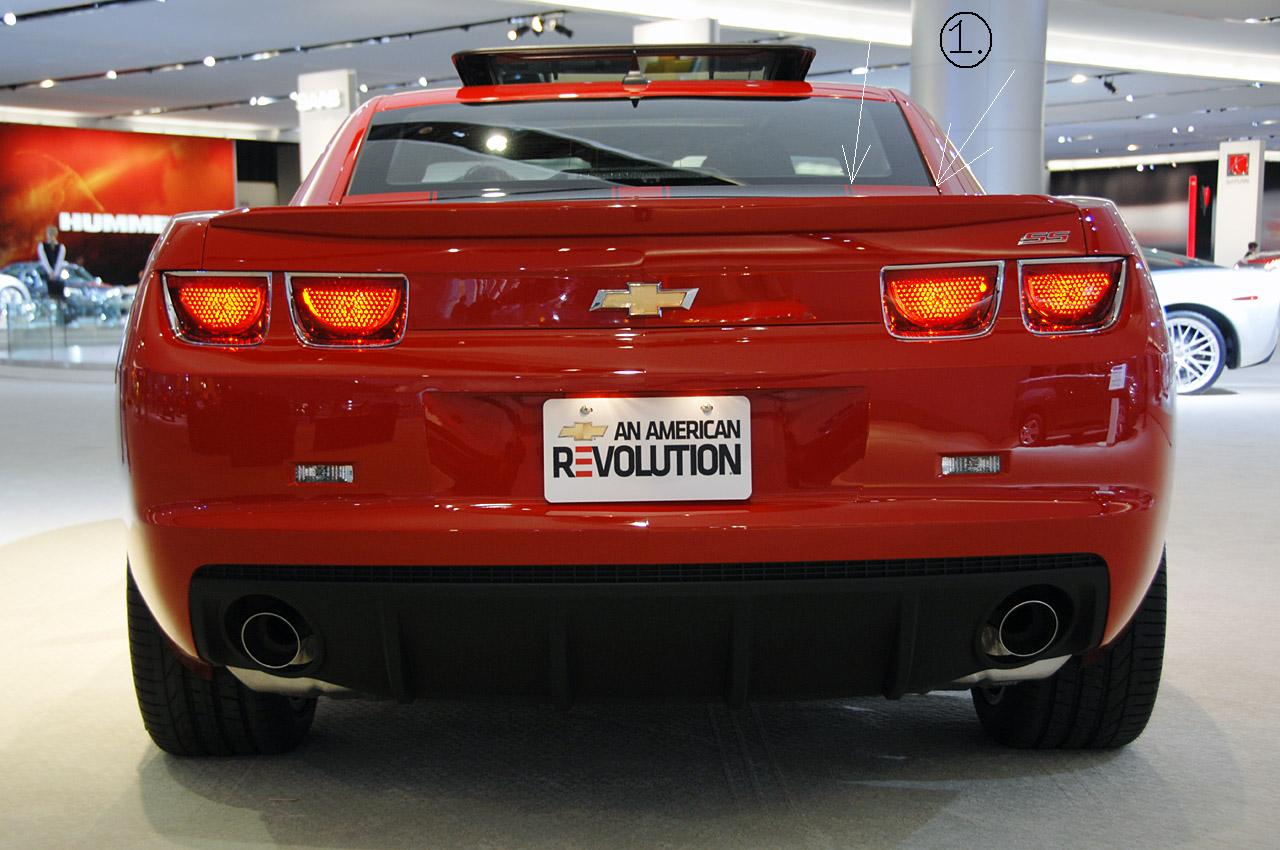

I know this is a pain in the a@@, but can someone with factory rally's help me out with these 3 Measurements. I'm getting these painted on, and I just want to double check the paint shops lines.

sav1 · 09-11-2009, 11:37 PM

really? nobody?

SirBrad · 09-11-2009, 11:49 PM

6"

1/8 - 1/4"

1/2"

A quick guess. If it ever stops raining I'll actually go outside and measure mine for you.

Sir Nuke · 09-12-2009, 01:07 AM

Quote:

Originally Posted by SirBrad

6"

1/8 - 1/4"

1/2"

A quick guess. If it ever stops raining I'll actually go outside and measure mine for you.

whats the matter, you afraid of melting? LOL

sav1, if no one else beats me to it, I will measure them and get back to you Sunday, right after I pick up my car.

sav1 · 09-12-2009, 01:15 AM

2 measurements would be nice.. thanks fellas.

Michael_Js · 09-12-2009, 01:17 AM

My stripes are in a box in the garage

Sorry. Selling them though - IOM

Good luck

promod55 · 09-13-2009, 07:08 PM

# 1 Is easy,3 inches apart 1.5 inches each way off of centerline.now #2 is 3/16 inch,now if you lay them out that will give you your third measurement.Good luck putting them on.They go on wet not dry.one teaspoon of ivory soap to a gallon of water.they may look easy but they are not.

SirBrad · 09-13-2009, 09:40 PM

Quote:

Originally Posted by Sir Nuke

whats the matter, you afraid of melting? LOL

sav1, if no one else beats me to it, I will measure them and get back to you Sunday, right after I pick up my car.

Dude I have pretty hair and don't want to mess it up.

skisax80 · 09-14-2009, 05:52 AM

ive got the black hood stripe and hockey stripes in box and im gonna sell them too

Sir Nuke · 09-14-2009, 02:06 PM

sav1, I am at work now, I didn't get in tall late after picking up my car. I will make the measurements when I get home tonight.

Tyrell Industries · 09-14-2009, 04:20 PM

I just picked my car up the other day and I am getting mine painted as well.It would be very cool if i could get those measurements as well.I would also like to know how wide the stripes are at the top of the hood (windshield side)

Capstone · 09-14-2009, 04:55 PM

So a question for the OP and others...

Now obviously this is personal preference, but since you are spending the money for painted rally stripes, was doing something other than the OEM style even considered?

Why would you want stripes painted on when you only plan to match the factory OEM stripes measurements?

At the last show I entered with some other Camaro's there, I overheard a lot of spectators say that the OEM Vinyl stripes don't quite look right when sitting right next to a car with the larger/longer Rally stripes that were on my car. There were three other OEM striped Camaro's at the MD All Chevy Show this past weekend parked near my OEM and it was the #1 comment I heard... (I happen to agree with them.. but this is just what I was hearing from the crowd, and not while I was standing right next to my car

)

"The stripes on the orange car look better than the vinyl because they
1. ... go over the front fascia
2. ... are better proportioned with the car
3. ... follow the bodylines better
4. ... look more like the '69 Rally stripes

Name: Yellow IOM White.jpg
Views: 4712
Size: 88.9 KB

Name: Yellow IOM White.jpg
Views: 4712
Size: 88.9 KB

Just curious... Do you think these look better than the stock rally stripes? They are 16.5 inches wide at the top of the hood in case you wanted to know.

Name: Stripes Med.JPG
Views: 4482
Size: 533.6 KB

Name: Stripes Med.JPG
Views: 4482
Size: 533.6 KB

Tyrell Industries · 09-14-2009, 06:17 PM

Yes I want mine to go down to the front fascia. i just wanted the measurments to for my paint guy as a point of reference.I am assuming they painted them wider because they are longer ?

Sir Nuke · 09-14-2009, 06:26 PM

Sav1, here are the mesurements you ask for:

1. 6 5/8"
2. 2 1/4"
3. 1/4"

Those are the measurements off of my factory Rally Stripes. I hope that helps you out.
