acutron42 · 01-02-2026, 11:49 AM

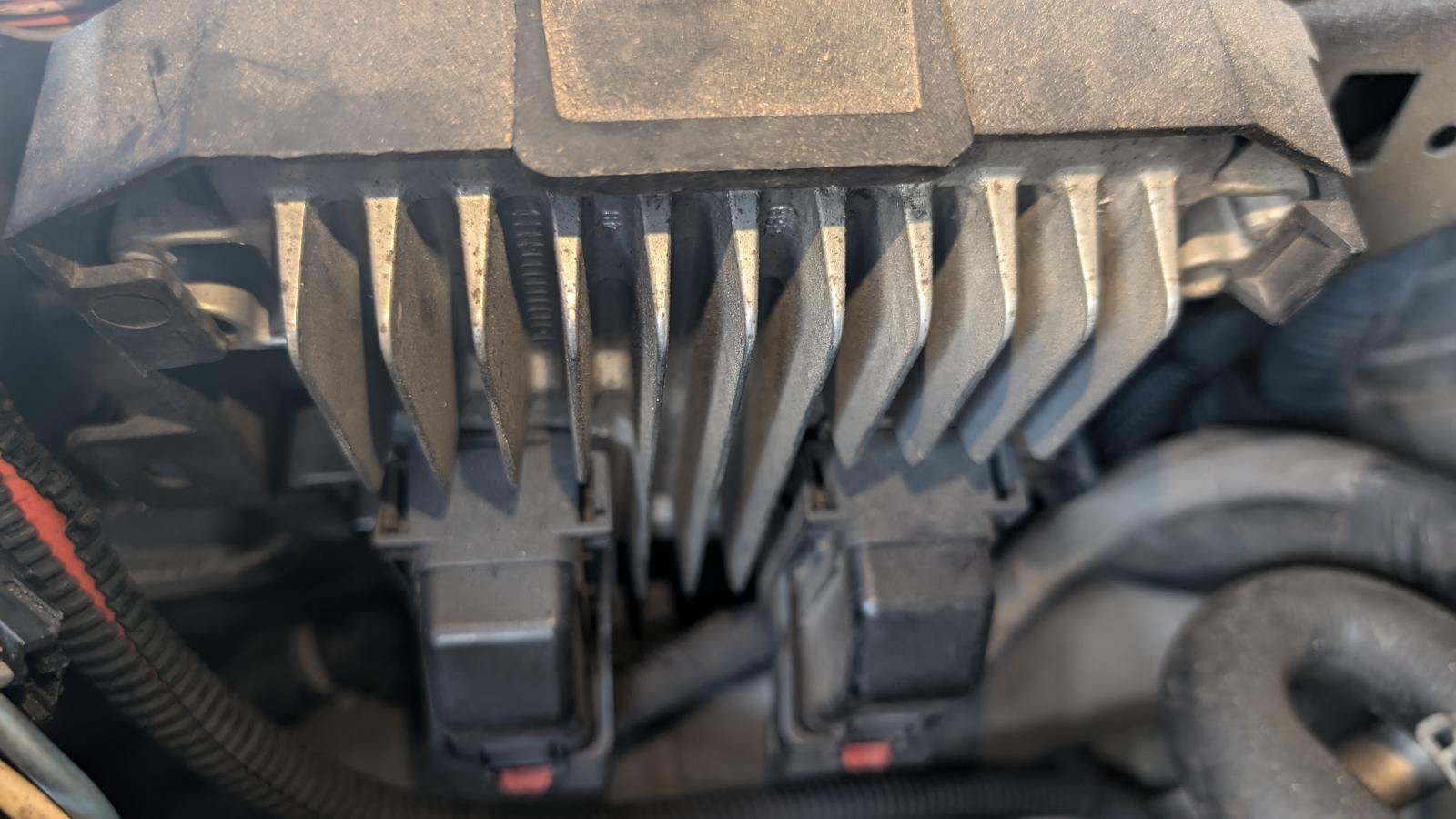

Here is the K20 X2.

kpeters59 · 01-02-2026, 02:48 PM

Well, dang...

My docs say that X1 Pin 7 is Low Speed fand and 58 is High Speed, so that's another discrepancy.

I've got AllData info coming soon, so maybe another?

How do I take the Fuse Box apart? I'd like to do a visual inspection of the underside wiring.

The 2 plugs next to the fuse box on the passenger fender side, what are those plugs called?

Thanks!

-KP

kpeters59 · 01-02-2026, 03:20 PM

Name: Fig. 3- X50A Fuse Block - Underhood Bottom View.jpg
Views: 22
Size: 145.7 KB

kpeters59 · 01-02-2026, 03:30 PM

Name: Fig. 4- X50A Fuse Block - Underhood X1.jpg
Views: 23
Size: 93.0 KB

Name: X50A Fuse Block - Underhood X1.jpg
Views: 22
Size: 130.6 KB

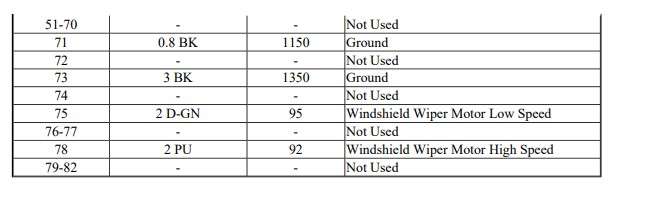

Name: X50A Fuse Block - Underhood X1_2.jpg
Views: 22
Size: 30.9 KB

acutron42 · 01-02-2026, 04:47 PM

If I am not mistaken, all 5th gen V8's have the E38 ecm with X1 & X2 plugs. The V6 cars have the E69 unit with the blue plug. I could be wrong though. I will dig through Alldata some more.

kpeters59 · 01-02-2026, 07:27 PM

Thanks!

I did acquire the SERVICE WORKSHOP MANUAL and I still have access to AllData coming up.

-KP

kpeters59 · 01-02-2026, 07:32 PM

I guess the X1 on the E38 goes to the X1 on the underside of the Fuse Box and likewise for the X2 connector?

I'd still like to know how to split the fuse box open so I can see inside. Maybe it's in the Manual somewhere but it's 11000 pages.

-KP

acutron42 · 01-02-2026, 08:18 PM

Your X1 & X2 are the plugs in your post#5

kpeters59 · 01-03-2026, 01:01 AM

Quote:

Originally Posted by kpeters59

Thanks for replying!

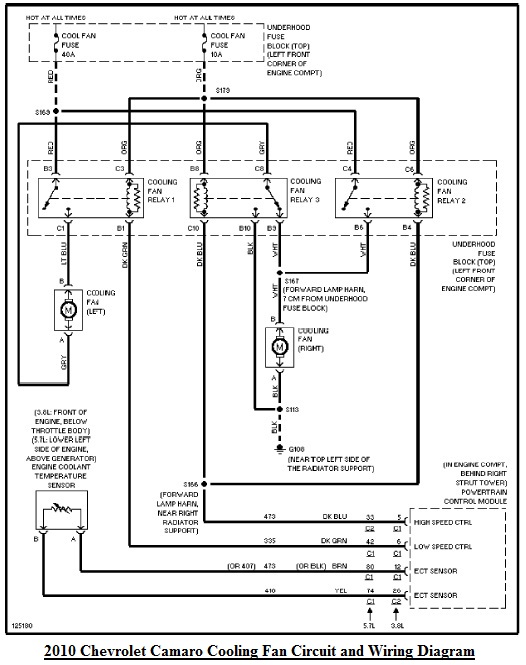

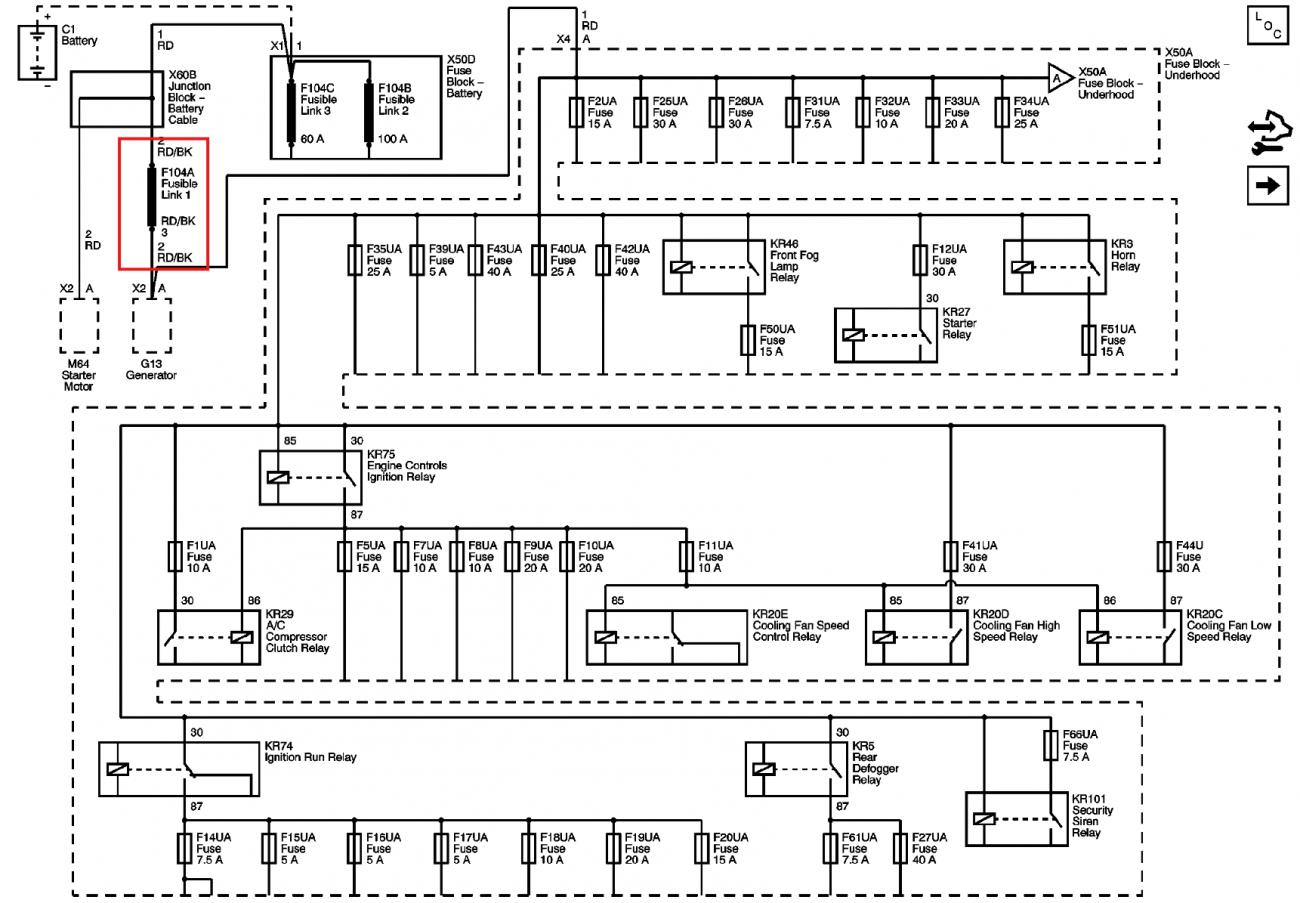

I seem to have wiring diagrams, but it's unclear which plug on the PCM and Fuse Block is which.

Attachment 1171067

Attachment 1171068

Attachment 1171069

Attachment 1171070

I was having trouble getting photos inserted.

So which harness at the PCM would have the fan wires?

And which one at the fuse block?

Thanks!

-KP

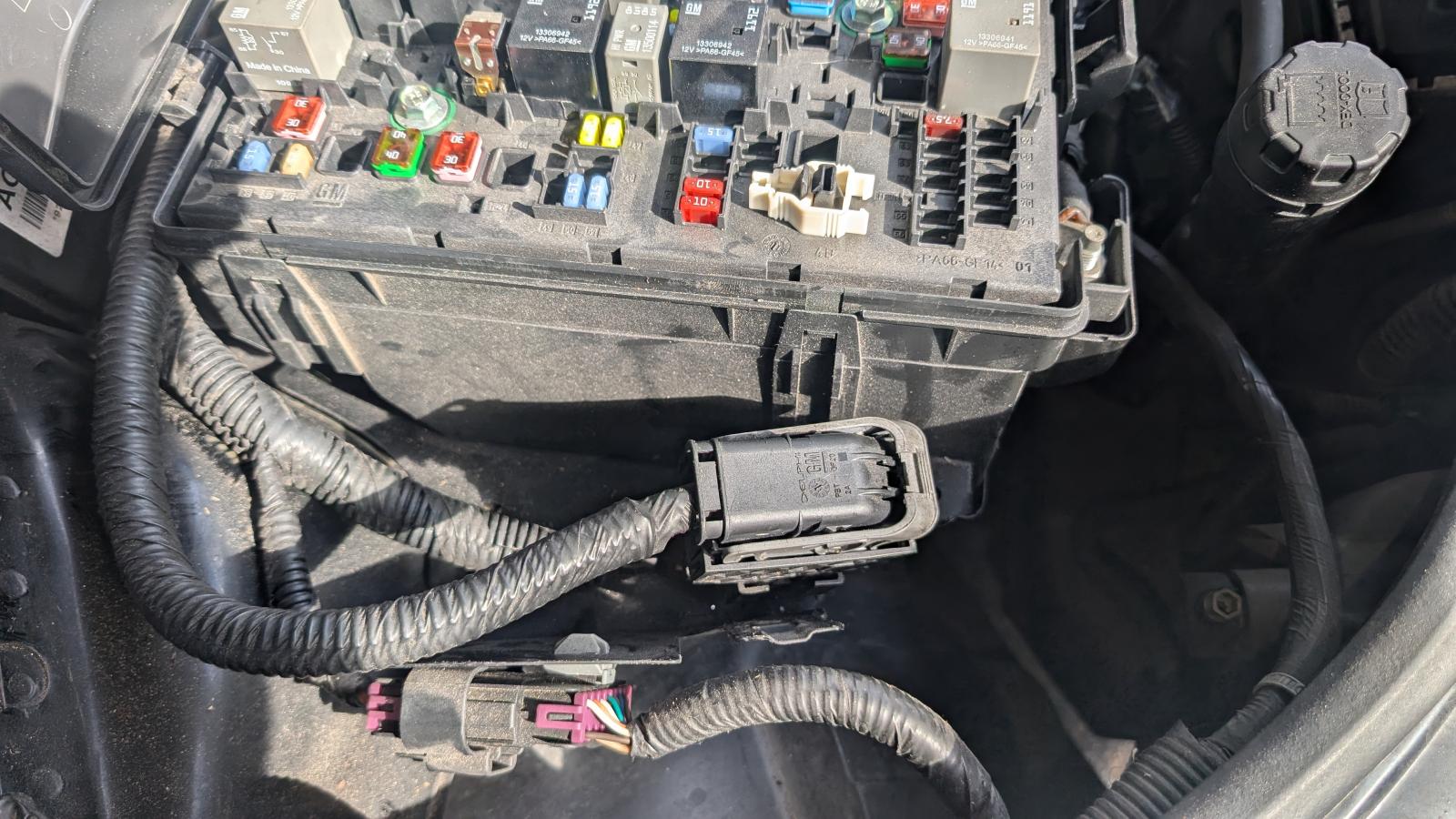

I would still like to know what the plugs next to the passenger side of the fuse box are?

-KP

kpeters59 · 01-03-2026, 01:17 AM

Name: Accessory Wiring Junction Block Retainer1.jpg
Views: 17
Size: 116.0 KB

Name: Accessory Wiring Junction Block Retainer2.jpg
Views: 18
Size: 90.8 KB

TL;DR

Open the lid, remove the 3 screws, take it apart.
-KP
