12-26-2014, 11:08 PM
|
#99 | |

Drives: 2014 1LS M6 Supercharged Join Date: Feb 2011
Location: New Britain, Ct
Posts: 937
 |
Quote:
|
|
|
|
|
12-27-2014, 12:40 PM
|
#100 | |
|
Boosted Moderator
Drives: Bone Stock LS3 Join Date: Sep 2009
Location: Marion Tx
Posts: 15,799
|
Quote:
__________________
If the car feels like it is on rails, you are probably driving too slow. -Ross Bentley
Horsepower is how fast you hit the wall. Torque is how far you take the wall with you. “If everything seems under control, you're just not going fast enough.” Mario Andretti If you can turn, you ain't going fast enough... |
|
|
|
|
|
12-27-2014, 02:54 PM
|
#101 |
Drives: C7 Z51 Join Date: Mar 2014
Location: Columbus, OH
Posts: 209
|
running without a skid plate is like a ticking time bomb
|
|
|
|
|
12-27-2014, 03:41 PM
|
#102 | |

Drives: '13 2LT/RS Twin Turbo Join Date: Aug 2012
Location: Edmond, Oklahoma
Posts: 3,073
|
Quote:
You guys are probably right though, I need to run one. It's tempting because nothing hangs lower than the sub frame on this kit. I've been lowered for 25,000 miles and never scraped anything but the black rubber piece under the front fascia. I'd more than likely be ok but probably not worth the risk. Like an unavoidable object in the road type of deal... |
|
|
|
|
|
12-27-2014, 09:03 PM
|
#103 | |

Drives: 11 F150 EB/13 Sonic RS/15 Z06 Join Date: Sep 2010
Location: Little Rock, AR
Posts: 7,127
|
Quote:
__________________
New Ride -- 2015 Z06 2LZ (stock) -- Journal
Old Ride -- 2012 Camaro 2LT/RS (647 RWHP & 726 RWTQ) -- Build Thread |
|
|
|
|
|
12-28-2014, 12:04 AM
|
#104 | |
|
Boosted Moderator
Drives: Bone Stock LS3 Join Date: Sep 2009
Location: Marion Tx
Posts: 15,799
|
Quote:

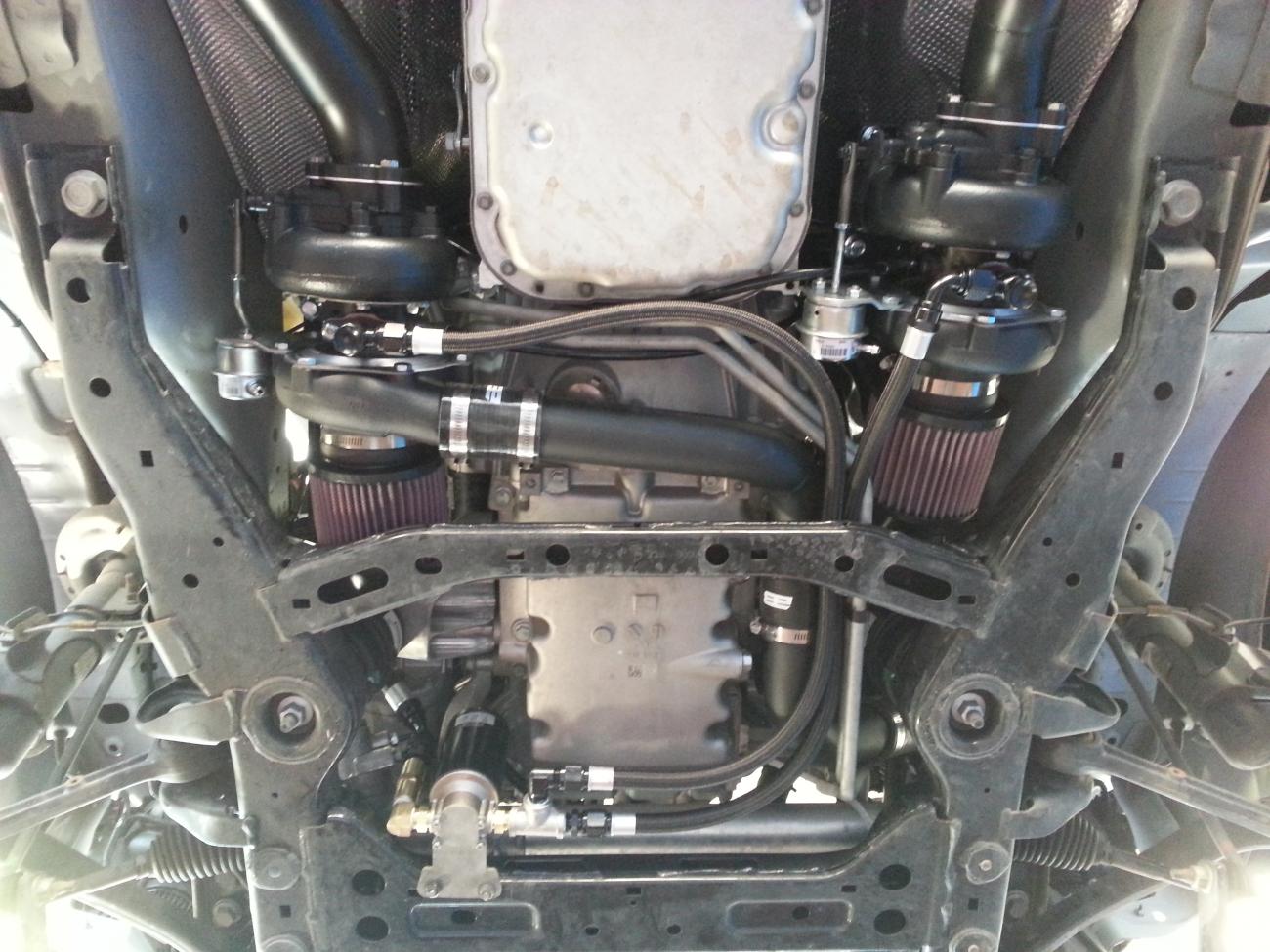

As for you return system, pictured here are the boss style blocks that bolt to the return port, with a -8 hose fitting welded on one end... The oil from both turbos runs to a collection can, then a turbowerks pump returns it to the engine... I grenades a turbo, literally, and a ball bearing got into the pump, ran for five to ten minutes that way as I made my way back to the pit area, with no damage whatsoever to the pump... Pulled the cover off the pump, removed the ball bearing, cleaned it all up and it's still pumping away to this day... The large diameter return lines and over sized sump ensure no oil backs up in the turbo... Everything you see back to where the waste gate dumps enter the exhaust stream is covered by the skid plate... As I mentioned, I'll find a few pics of that and post them up...
__________________
If the car feels like it is on rails, you are probably driving too slow. -Ross Bentley
Horsepower is how fast you hit the wall. Torque is how far you take the wall with you. “If everything seems under control, you're just not going fast enough.” Mario Andretti If you can turn, you ain't going fast enough... |
|
|
|
|
|
12-28-2014, 12:59 AM
|
#105 |
|
Drives: '13 2LT/RS Twin Turbo Join Date: Aug 2012
Location: Edmond, Oklahoma
Posts: 3,073
|
Man that's a very cool scavenge setup! Is that homemade or did you buy it from somewhere?
|
|
|
|
|
12-28-2014, 01:18 AM
|
#106 |
|
Drives: '13 2LT/RS Twin Turbo Join Date: Aug 2012
Location: Edmond, Oklahoma
Posts: 3,073
|

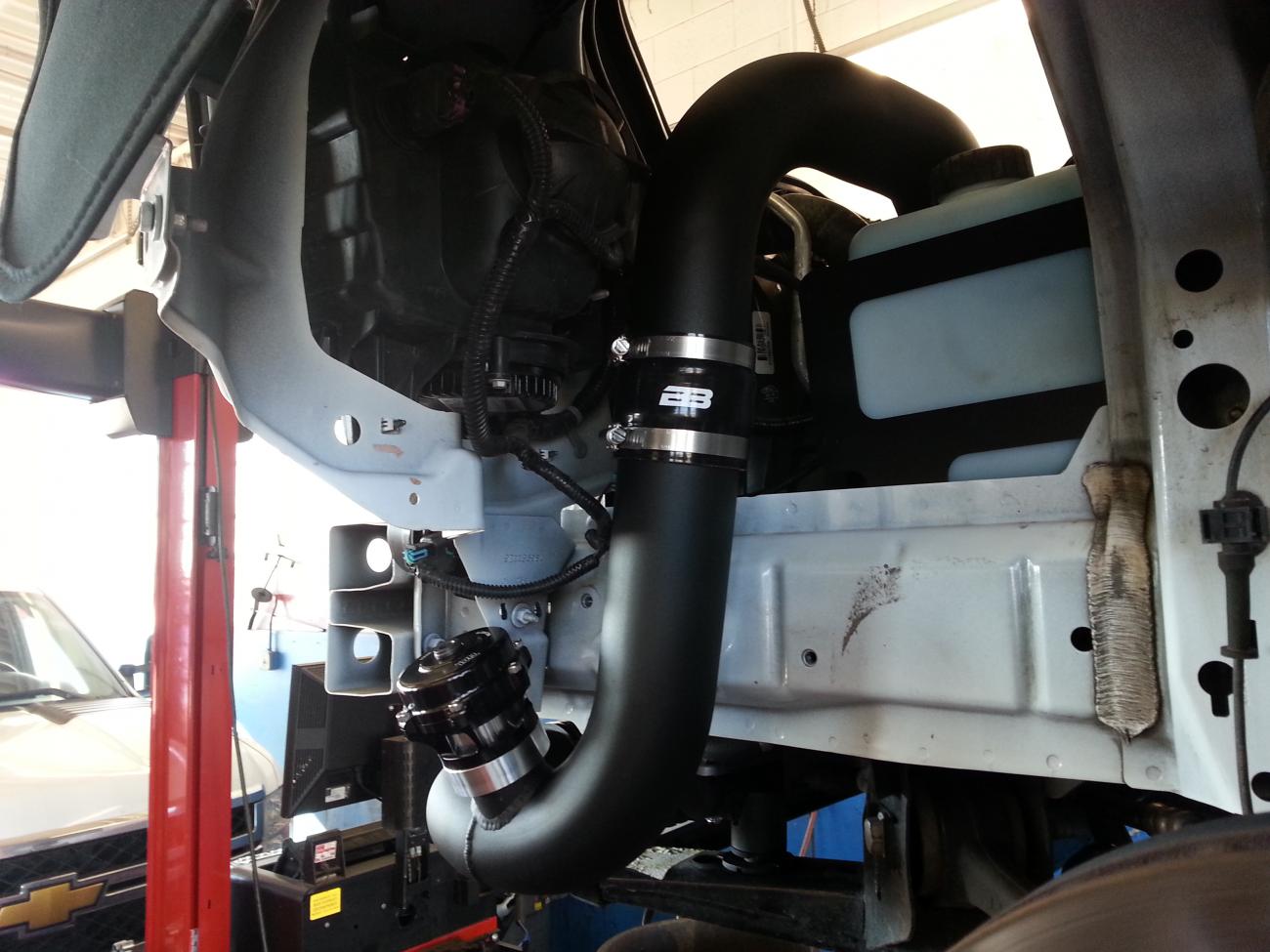

Got to do a little more to it tonight. Re-clocked the passenger side turbo and got all the exhaust piping and turbos tightened up. All the oil feed lines are done. Everything has fit perfect so far. I'm going to try to go back up there in the morning. I'm ready to get this thing done!
Good day to have the car tore down though, we had snow today. It was 60 degrees 2 days ago on Christmas.. gotta love our weather. |
|
|
|
|
12-28-2014, 01:24 AM
|
#107 |
|
Boosted Moderator
Drives: Bone Stock LS3 Join Date: Sep 2009
Location: Marion Tx
Posts: 15,799
|
It came with my original turbo kit, but would be easy to duplicate it... Let me do some checking around and see if it's available as individual pieces...
__________________
If the car feels like it is on rails, you are probably driving too slow. -Ross Bentley
Horsepower is how fast you hit the wall. Torque is how far you take the wall with you. “If everything seems under control, you're just not going fast enough.” Mario Andretti If you can turn, you ain't going fast enough... |
|
|
|
|
12-28-2014, 06:59 AM
|
#108 |
|
Drives: '13 2LT/RS Twin Turbo Join Date: Aug 2012
Location: Edmond, Oklahoma
Posts: 3,073
|
.
|
|
|
|
|
12-28-2014, 07:32 AM
|
#109 |
|
Boosted
Drives: 2012 1LT RS... with snails Join Date: May 2012
Location: New Hampshire
Posts: 1,455
|
looking good!!
__________________
 IPS Twin Turbos, Corsa Exhaust, Ported Throttle Body. 461 rwhp 443 rwtq!! *Cameron Hass.ani* |
|
|
|
|
12-28-2014, 01:44 PM
|
#110 |
|
Don't Sleep on My V6
|
FYI Take that Breather off or pull the check valve out! Boost and breathers don't play well together. And what catch can are you running? Looking good on the install tho!
__________________
 |
|
|
|
|
12-28-2014, 01:56 PM
|
#111 |
|
Drives: '13 2LT/RS Twin Turbo Join Date: Aug 2012
Location: Edmond, Oklahoma
Posts: 3,073
|
Getting closer, I'm probably spending a lot more time than I have to just making sure everything is perfect and nothing is going to be rubbing. I have to say, everything fit pretty good. I was missing the power steering hose and barb coupler but no big deal I just ran and got from the parts store $8.
One thing Im not sure about is putting the fitting in the back of the driver side valve cover. Its a threaded fitting and the hole is smooth. Its a pretty big size to try to tap in with the clearance that is there. The instructions don't really say. They just say put it in there lol. I'll have to ask fabberge how they did it or if they pulled the valve cover and tapped it. Other than that I should be able to finish up tomorrow and try to get the tune done. |
|
|
|
|
12-28-2014, 01:59 PM
|
#112 |
|
Drives: '13 2LT/RS Twin Turbo Join Date: Aug 2012
Location: Edmond, Oklahoma
Posts: 3,073
|
.
|
|
|
|
|
|
|
|
 |
|
|
