Brembo install and weight specs

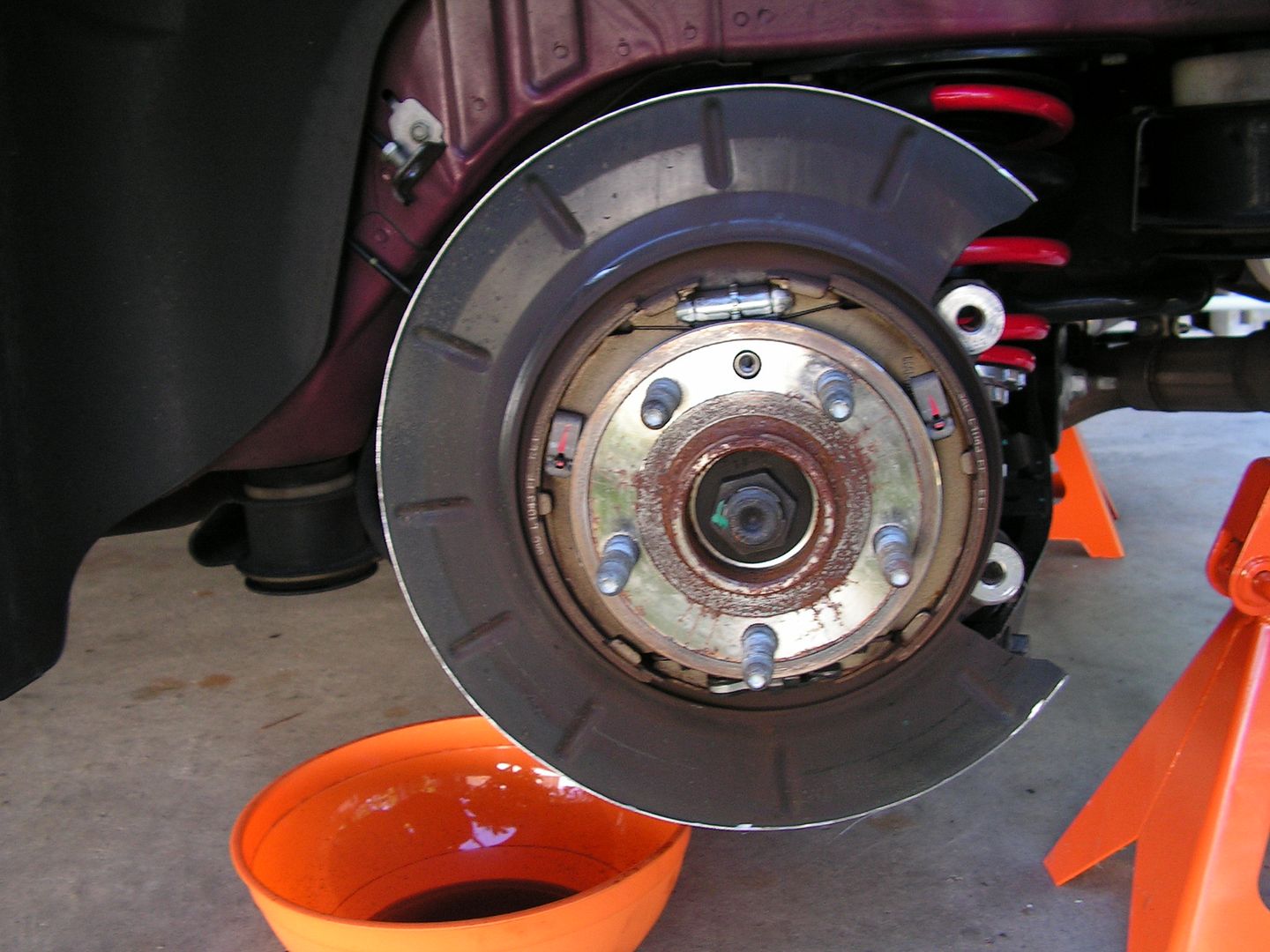

I installed the Brembo calipers, braided lines, and drilled/slotted rotors today. I had to trim the rear dust shield to fit the larger diameter rotors.

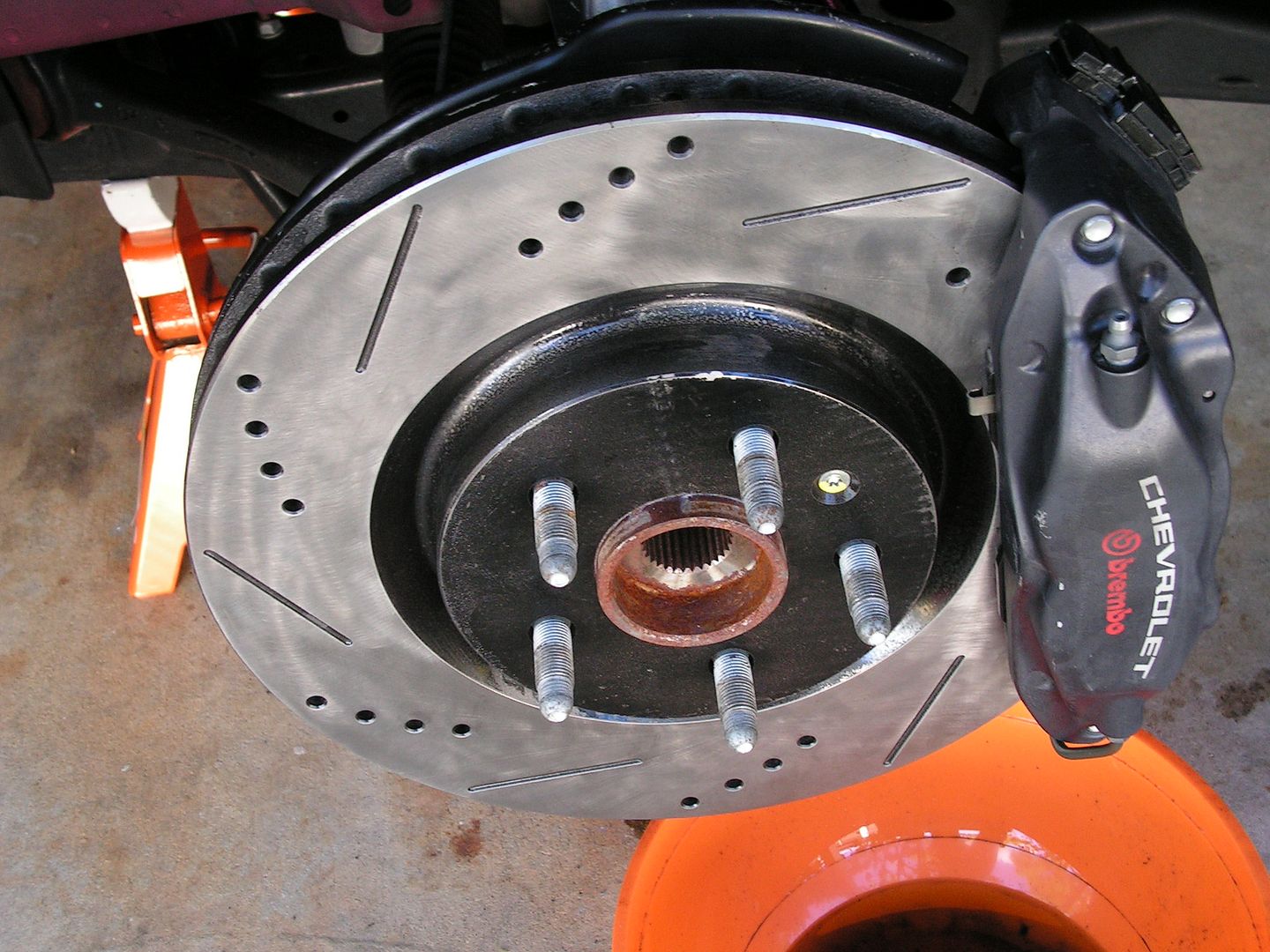

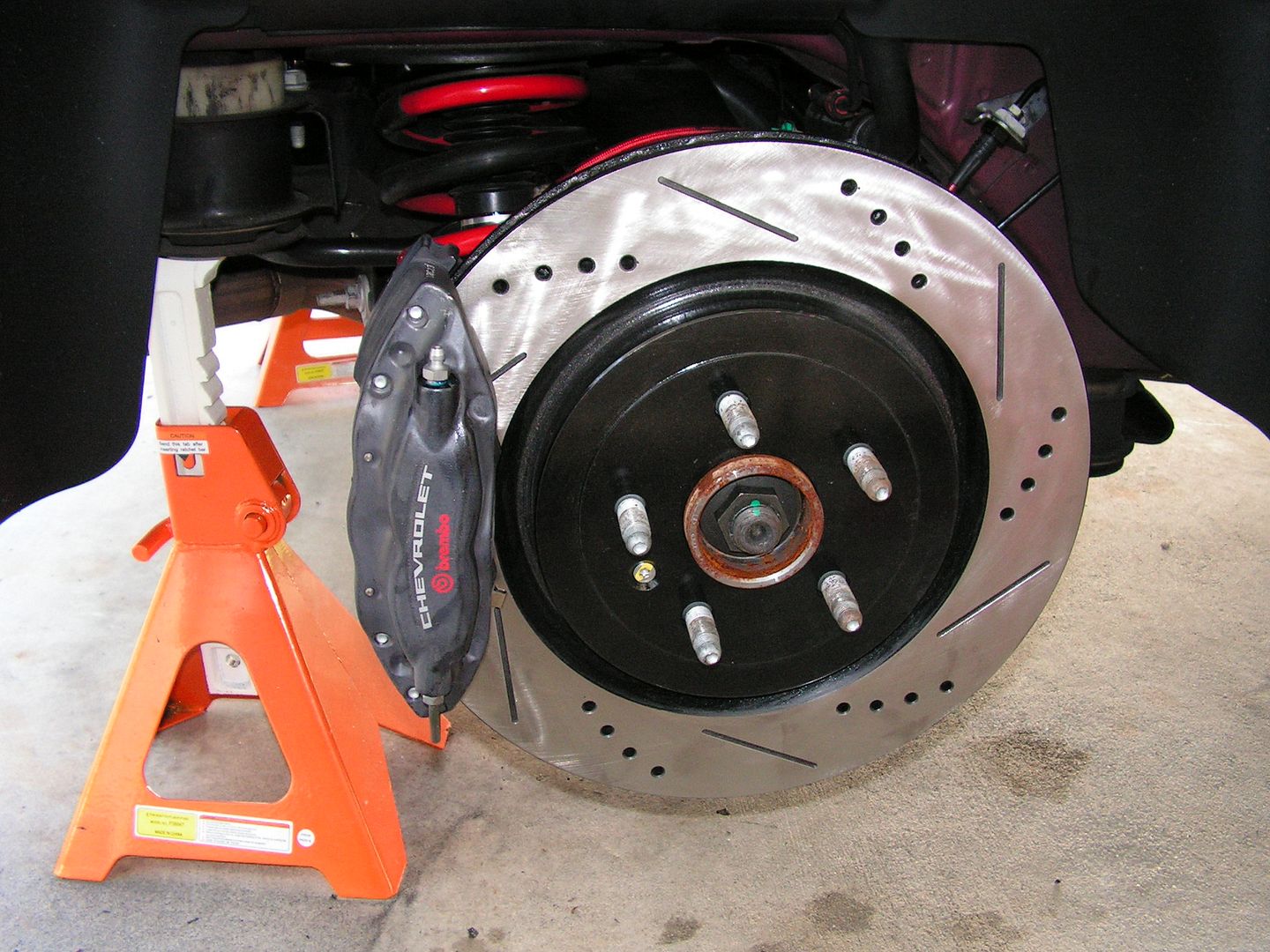

Total install time = 6.5 hours Total cost $880  The rear setup...  And the front...  Front  Rear  V6 rear caliper is 7.5 lbs SS rear caliper is 6.5 lbs V6 rear rotor is 15.25 lbs Drilled rear rotor is 23.0 lbs Front V6 caliper 16.5 lbs Front SS caliper 11.0 lbs Front V6 rotor 21.2 lbs Front drilled rotor 24.5 lbs Rear weight difference = +6.75/side +13.5 lbs Front weight difference = -2.20/side -4.40 lbs Total added weight = 9.1 lbs
__________________
 |
|
|
|
12-24-2010, 07:52 PM
|
#2 |
Drives: '12 Toyota Tacoma Dbl Join Date: Sep 2009
Location: Beaufort, SC
Posts: 1,275
|
Sick setup man! Looks really good....... I remember reading that you said when you put new pads on that you need to rough up the rotors or something along that line. What/how do you do that?
__________________
 STANDING 1/4MI: 13.948@99.87 6600RPM HP/TQ Gains - 30.54HP/24.3TQ (NOT PEAK) |
|
|
|
|
12-24-2010, 10:58 PM
|
#3 |
|
I refuse to go smurfy
Drives: 2009 Challenger SRT8, 2010 Camaro Join Date: Nov 2009
Location: MD
Posts: 1,311
|
looks good!!!
__________________
 -Bill...the Camaro was my wifes, now she's got a minivan Challenger- 2009 Dodge Challenger SRT8 Procharger D1 Supercharger: 10.895 @ 126.720 MPH |
|
|
|
|
12-24-2010, 11:46 PM
|
#4 |

Drives: 2012 Camaro 2SS/RS Join Date: Jul 2009
Location: Dubba V
Posts: 2,869
|
If you don't mind me asking, where dis you get your rotors?
__________________
2LT/RS M6 CGM VIN#53104 SOLD
2012 Black 2SS/RS w/ Hurst- Mods: Corsa catback, SSE, Vararam |
|
|
|
|
12-25-2010, 10:50 AM
|
#5 | |
|
Drives: '10 LT RS A6 & '04 Acura RSX Type S Join Date: Oct 2009
Location: Florida
Posts: 1,544
|
Quote:
I used the same type V6 rotors at Sebring to try them out and they held up really well! The zinc coating got kinda cooked but they took the heat OK.
__________________
Last edited by Beauwulf; 12-26-2010 at 03:21 PM. |
|
|
|
|
|
12-25-2010, 11:38 AM
|
#6 |
|
Red Brick of Vengeance!
Drives: 12 Second Brick Join Date: Jun 2009
Location: at my pulpit
Posts: 7,745
|
very nice indeed...
__________________
|
|
|
|
|
12-25-2010, 09:36 PM
|
#7 |
|
I have no life
Drives: 06' Subaru STI, ex-Camaro V6 LLT Join Date: Apr 2010
Location: Top Gear Test Track
Posts: 3,189
|
Thanks for the weight specs. Looks really good too!
__________________
|
|
|
|
|
12-26-2010, 02:22 AM
|
#8 |
 Drives: Victory Red 2lt RS V6 auto Join Date: Mar 2010
Location: Alice Tx.
Posts: 156
|
where did you get the brembos from? they look REAL NICE!!! I'm pretty sure they work like a dream bro.
|
|
|
|
|
12-26-2010, 07:17 AM
|
#9 | |
|
Drives: '10 LT RS A6 & '04 Acura RSX Type S Join Date: Oct 2009
Location: Florida
Posts: 1,544
|
Quote:
