How to install Ofer's backup camera retrofit

It took me about 2.5-3 hours. That included several breaks, taking pictures, and basically taking my sweet time. Were I to do this again, I would bet 1.5 hours tops. You need Ofer's camera and harness, and an Onstar LCD mirror. I got mine on ebay.
Attached Images

jimmyh is offline   Reply With Quote
Old 04-22-2011, 06:13 PM   #2
jimmyh

jimmyh's Avatar

Drives: 2011 1LT => 2010 2SS
Join Date: Mar 2010
Location: an I-294 traffic jam
Posts: 180
More

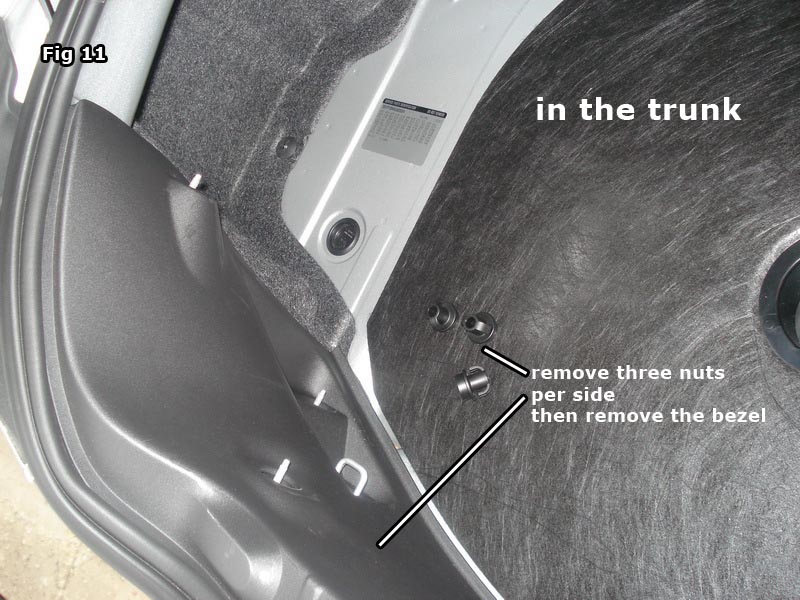

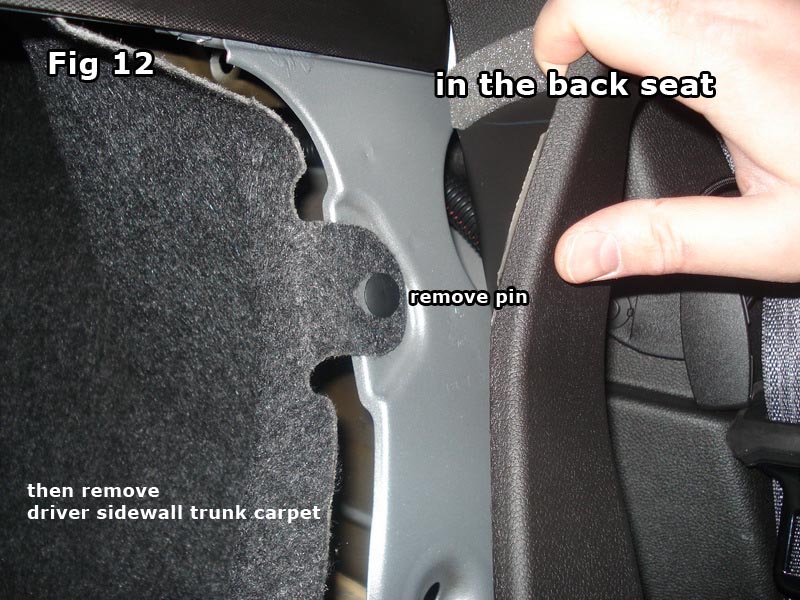

Attached Images

jimmyh is offline   Reply With Quote
Old 04-22-2011, 06:16 PM   #3
jimmyh

jimmyh's Avatar

Drives: 2011 1LT => 2010 2SS
Join Date: Mar 2010
Location: an I-294 traffic jam
Posts: 180
and more
Attached Images

jimmyh is offline   Reply With Quote
Old 04-22-2011, 06:17 PM   #4
jimmyh

jimmyh's Avatar

Drives: 2011 1LT => 2010 2SS
Join Date: Mar 2010
Location: an I-294 traffic jam
Posts: 180
and finally
Attached Images


Last edited by jimmyh; 04-23-2011 at 11:56 AM.
jimmyh is offline   Reply With Quote
Old 04-22-2011, 06:35 PM   #5
jimmyh

jimmyh's Avatar

Drives: 2011 1LT => 2010 2SS
Join Date: Mar 2010
Location: an I-294 traffic jam
Posts: 180
Just a few thoughts:
  • It is not entirely necessary to remove the back seat bottom. You could just tuck the wires away as you see fit. It might not even be necessary to remove the sidewall carpet in the trunk. You could try tucking there too. I removed everything because I don't like loose wires. As should be evident by the thousands of zip-ties I used.
  • Ofer did a great job on the cable length. Whenever I install aftermarket stuff, it seems like the wires are either pulled to the max because there is not enough, or there is 20 feet of extra wire stuffed somewhere. Not the case with this install. Kudos Ofer.
  • ALWAYS bench test. I had a spare cig lighter power plug on hand, so I hooked the camera up to that, and plugged it into the mirror before I began doing ANYTHING else to verify the camera and lcd worked and that my wiring was correct. You don't know how much it sucks to get wires run and mounted, everything in place, then when you turn on your device, it doesn't work.
  • Having some trim removal tools is worth the price. They make it easy to pull trim pieces off without damaging them. They are great for prying stuff like door sills and door panels off.
  • Be careful around the airbag. I didn't have any problems here, but in some other cars I have worked on, simply removing the A-pillar finisher made the airbag service light come on.
  • The green wire on Ofer's custom harness goes to the red wire on the power harness he provided. The black wire goes to ground. I used a little black screw next to the driver's door fuse panel (fig 32).
  • I was concerned about routing the video cable along the battery cable (the big red cable in fig 24) and that it would cause artifacts or distortion in the signal. But it did not. Picture is clear.
I am painting the camera silver, to match my car. Tomorrow when it was dry, I will post pictures of it mounted.
jimmyh is offline   Reply With Quote
Old 04-22-2011, 06:43 PM   #6
ihaveacamaro
I like teeth.

ihaveacamaro's Avatar

Drives: #198
Join Date: Oct 2009
Location: Ft. Lauderdale, Florida
Posts: 4,601
THANK YOU FOR THIS!!!

Because of your write-up (very detailed) I'm going to order the stuff to make this mod happen! Awesome!
ihaveacamaro is offline   Reply With Quote
Old 04-22-2011, 06:48 PM   #7
austinjames
Account Suspend...Right

austinjames's Avatar

Drives: Synergy LS & Vulcan 1600cc
Join Date: Apr 2011
Location: Lakeland, Florida
Posts: 3,564
great job, very helpfull
__________________
austinjames is offline   Reply With Quote
Old 04-22-2011, 07:48 PM   #8
jimmyh

jimmyh's Avatar

Drives: 2011 1LT => 2010 2SS
Join Date: Mar 2010
Location: an I-294 traffic jam
Posts: 180
Any questions ask away. I was afraid I went overboard with the pictures. It's really not as complicated as I made it look. This is a very simple install.
jimmyh is offline   Reply With Quote
Old 04-22-2011, 08:31 PM   #9
2SSRS@Gen5diy
Salt & Pepper 2014 Z/28


2SSRS@Gen5diy's Avatar

Drives: 2010 2SS IOM ,2014 Z/28, 66 Nova
Join Date: Oct 2008
Location: By the lake in AZ
Posts: 11,769
Nice job, if it O.K. i will add your DIY to the sale thread.
2SSRS@Gen5diy is offline   Reply With Quote
Old 04-22-2011, 08:43 PM   #10
larryt1026

larryt1026's Avatar

Drives: 2011 Camaro LT
Join Date: Jun 2010
Location: Jacksonville, FL
Posts: 576
how come this seems so complicated to me..
larryt1026 is offline   Reply With Quote
Old 04-22-2011, 08:44 PM   #11
Sleez


Sleez's Avatar

Drives: 2010, 2LT, RS, 6M, ABM (#1893) SOLD
Join Date: Mar 2011
Location: Willits, CA
Posts: 1,460
great write up, thank you.
Sleez is offline   Reply With Quote
Old 04-22-2011, 09:04 PM   #12
Jabs

Jabs's Avatar

Drives: 2010 Black Camaro SS Stage 2
Join Date: Nov 2010
Location: Mclean VA
Posts: 605
How Much did all the parts cost you?

Great Write up BTW Thank you!
__________________

Jabs is offline   Reply With Quote
Old 04-22-2011, 11:23 PM   #13
WCoolBreeze
2LT/RS RJT

WCoolBreeze's Avatar

Drives: 2010 2LT/RS RJT W/CGM Rally Stripes
Join Date: Nov 2008
Location: Imperial, CA
Posts: 1,226
Great Write Up. This Mod is on the list.

Walt B.
__________________
2010 2LT/RS (Vin - 7757)
2005 Dodge Magnum R/T (Yes it has a Hemi)
1987 Camaro RS (California Special)

Mods Done
CGM Gills, "RS" in both headrests, GMPP Exhaust w/Tips, RJT XM Antenna, RS Foglight/DRL Plug/Play Harness, Leather E-Brake Boot & Auto Boot, HUD Installed, Full ABL doors & Dash, RJT Heritage Grill, T-Rex Lower Grill, Roto-Fab CAI (RJT), W/W Reservoir, V-6 Radiator Cover (RJT), ADM Race Air Scoop, GM Cupholder & Footwell LEDs, Retrofit GM MyLink (w/Nav), Frameless Rearview Mirror, Backup Camera, T-5 Splitter, and Conv Spoiler.
WCoolBreeze is online now   Reply With Quote
Old 04-23-2011, 12:13 AM   #14
jimmyh

jimmyh's Avatar

Drives: 2011 1LT => 2010 2SS
Join Date: Mar 2010
Location: an I-294 traffic jam
Posts: 180
Quote:
Originally Posted by 2SSRS View Post
Nice job, if it O.K. i will add your DIY to the sale thread.
be my guest, if it weren't for you, I probably wouldn't have done this mod.
jimmyh is offline   Reply With Quote
Old 04-23-2011, 12:19 AM   #15
jimmyh

jimmyh's Avatar

Drives: 2011 1LT => 2010 2SS
Join Date: Mar 2010
Location: an I-294 traffic jam
Posts: 180
Quote:
Originally Posted by larryt1026 View Post
how come this seems so complicated to me..
It really isnt. It basically consists of:

1) ordering ofer's camera and harness, and getting an lcd mirror

2) removing the old mirror, a few trim pieces, and optionally the rear seat cushion

3) drilling a hole in the rear bumper between the license plate lights and screwing the camera there

4) putting up the new mirror, tucking the wiring into the headliner and down the a-pillar

5) running two wires from the license plate opening, into the trunk, into the back seat, and up to the driver's side fuse panel on the dash

6) splicing two 12v wires together, attaching one ground wire to a screw

7) tuck the wires out of sight

8) put the trim pieces (and rear seat cushion) back in place

If you have never done any interior/audio mods, it could be a little tricky, but not terribly so. If you have, it's a piece of cake.
jimmyh is offline   Reply With Quote
Old 04-23-2011, 01:30 AM   #16
sunsfan

sunsfan's Avatar

Drives: 1970 Camaro, 2010 Camaro
Join Date: Feb 2010
Location: Gilbert, Az
Posts: 77
Nice write up picture are great.Guess it is on my list too.
__________________
2010 Camaro & 1970 Camaro
sunsfan is offline   Reply With Quote
Old 04-23-2011, 10:54 AM   #17
boltfan1
Boltfan

boltfan1's Avatar

Drives: 2010 Black 2SS/RS M6
Join Date: Sep 2010
Location: Henderson, Nevada
Posts: 49
This is an outstanding write up. I appreciate the time and effort you spent to show all the details. I will be ordering my parts soon.
__________________
boltfan1 is offline   Reply With Quote
Old 04-23-2011, 11:57 AM   #18
jimmyh

jimmyh's Avatar

Drives: 2011 1LT => 2010 2SS
Join Date: Mar 2010
Location: an I-294 traffic jam
Posts: 180
Final pictures added.

Final thoughts:

I think this cost about $350, for everything. Maybe less. Most of that is the mirror. Audio shops want over $1000 to do this.

If you have kids like me, this new mirror is wide enough that you can see both of them in the back seat. Bonus. And the mounting arm allows the mirror to tilt up higher, I think. So even though this mirror is larger, it doesn't hang down as far as the other one.

Last edited by jimmyh; 04-23-2011 at 12:10 PM.
jimmyh is offline   Reply With Quote
Old 04-23-2011, 01:18 PM   #19
dragom
2G1FB1EV3A9121989

dragom's Avatar

Drives: Rally Yellow RS Coupe
Join Date: Jul 2009
Location: indianapolis
Posts: 827
I think Ofer is selling the whole thing for 300 but you need to look on his vendor sale and see to make sure. It is well worth the money it is a great mod.
dragom is offline   Reply With Quote
Old 04-23-2011, 02:23 PM   #20
Darth_Emma
Psssssssssshhhhhhhhhhhhh!

Darth_Emma's Avatar

Drives: under contruction
Join Date: Nov 2009
Location: Marysville, Ohio
Posts: 13,151
Did you have to remove the head unit above the mirror where the dome light is?
__________________
Darth_Emma is offline   Reply With Quote
Old 04-23-2011, 02:44 PM   #21
jimmyh

jimmyh's Avatar

Drives: 2011 1LT => 2010 2SS
Join Date: Mar 2010
Location: an I-294 traffic jam
Posts: 180
No. The plug for the mirror is underneath the plastic runner that goes from the mirror to the headliner. I just plugged Ofer's harness into that, plugged into the new mirror, and stuffed it all into the headliner. I am not sure why folks are removing the overhead console.
jimmyh is offline   Reply With Quote
Old 04-23-2011, 02:54 PM   #22
Darth_Emma
Psssssssssshhhhhhhhhhhhh!

Darth_Emma's Avatar

Drives: under contruction
Join Date: Nov 2009
Location: Marysville, Ohio
Posts: 13,151
Quote:
Originally Posted by jimmyh View Post
No. The plug for the mirror is underneath the plastic runner that goes from the mirror to the headliner. I just plugged Ofer's harness into that, plugged into the new mirror, and stuffed it all into the headliner. I am not sure why folks are removing the overhead console.
Thanks, that would simplify things. I have all the pieces to do this mod now, but I have to get my car back from the shop (cam install).
__________________
Darth_Emma is offline   Reply With Quote
Old 04-23-2011, 03:27 PM   #23
jimmyh

jimmyh's Avatar

Drives: 2011 1LT => 2010 2SS
Join Date: Mar 2010
Location: an I-294 traffic jam
Posts: 180
cam and headers maybe after my warranty expires...
jimmyh is offline   Reply With Quote
Old 04-23-2011, 03:34 PM   #24
Darth_Emma
Psssssssssshhhhhhhhhhhhh!

Darth_Emma's Avatar

Drives: under contruction
Join Date: Nov 2009
Location: Marysville, Ohio
Posts: 13,151
Quote:
Originally Posted by jimmyh View Post
cam and headers maybe after my warranty expires...
I liberated myself from the shackles of the warranty ages ago.
__________________
Darth_Emma is offline   Reply With Quote
Old 04-23-2011, 03:57 PM   #25
Inferno LSX
Supercharged LSX

Inferno LSX's Avatar

Drives: 2011 2SS/RS Black/Carbon Fiber
Join Date: Dec 2010
Location: City of Angels
Posts: 6,629
Ofer is a great guy! One question, does the LCD in the mirror stay on, or only when you put the car in reverse?
