Old 11-06-2011, 06:45 AM   #1
actireman

Drives: 2011 denali hd2500
Join Date: Sep 2011
Location: clarkston, mi
Posts: 187
ZL1 exhaust pipe diameter?

Starting to do some homework on headers and system. Does anyone know the diameter of the pipes going to the back? The other is, I really don't care about sound as much as performance. I would like to keep the OE mufflers if possible, but I don't know how restrictive they are, I'm hoping they are not, seeing how they open up. Thanks for any advice.
actireman is offline   Reply With Quote
Old 11-06-2011, 08:21 AM   #2
radz28
Petro-sexual

radz28's Avatar

Drives: Ultra-Grin
Join Date: Oct 2006
Location: Crapramento, Crapifornia
Posts: 13,040
I imagine they're going to be probably about 3-inches. Z06 and ZR1 are about that and have dual-mode exhaust, too.

As far as restriction, I think the muffler mod' for those cars will apply for ZL1, too. I plan on doing it because I like the OEM set-up and it will be less expensive than a catback. Because of the modest bolt-on power improvements above CTS-V (through the active exhaust, dual-inlet intake system, EPS, and more efficient upper plenum and intercooler) I really think improvements will be in headers and cats'. Removing any resonators and a good X-pipe will probably be a good idea, too, just like they are for SS and V6 models.
__________________
"...What IS true: We anticipated that this would happen - we are never finished - and yes, Ford DOES deserve to win now and then. To think that GM can come out with a car to make ford throw in the towel is simply foolhardy..." - fbodfather
radz28 is offline   Reply With Quote
Old 11-06-2011, 08:33 AM   #3
paul2010


paul2010's Avatar

Drives: 2012 ZL1 #1278
Join Date: Aug 2009
Location: Indiana
Posts: 1,218
Quote:
Originally Posted by radz28 View Post
I imagine they're going to be probably about 3-inches. Z06 and ZR1 are about that and have dual-mode exhaust, too.

As far as restriction, I think the muffler mod' for those cars will apply for ZL1, too. I plan on doing it because I like the OEM set-up and it will be less expensive than a catback. Because of the modest bolt-on power improvements above CTS-V (through the active exhaust, dual-inlet intake system, EPS, and more efficient upper plenum and intercooler) I really think improvements will be in headers and cats'. Removing any resonators and a good X-pipe will probably be a good idea, too, just like they are for SS and V6 models.
I was advised by Lingenfelter that headers were a bad idea for the ZL1. They said they can make 700+ with just a cam, heads... No headers.
__________________
2012 ZL1 #1278

2010 2nd Place Fastest 4 5th Gen LSX Shootout
2011 2nd Place Fastest 4 5th Gen LSX Shootout
paul2010 is offline   Reply With Quote
Old 11-06-2011, 08:52 AM   #4
cyrusthevirus

Drives: 2009 chevy cobalt ss, 1989 Iroc-z
Join Date: Oct 2011
Location: pa
Posts: 76
but u def need to get some high flow cats those factory ones r way to restricted
cyrusthevirus is offline   Reply With Quote
Old 11-06-2011, 09:10 AM   #5
Z_Rocks


Drives: a Jet :-)
Join Date: May 2009
Location: SW Florida
Posts: 1,850
Quote:
Originally Posted by radz28 View Post
I imagine they're going to be probably about 3-inches. Z06 and ZR1 are about that and have dual-mode exhaust, too.

As far as restriction, I think the muffler mod' for those cars will apply for ZL1, too. I plan on doing it because I like the OEM set-up and it will be less expensive than a catback. Because of the modest bolt-on power improvements above CTS-V (through the active exhaust, dual-inlet intake system, EPS, and more efficient upper plenum and intercooler) I really think improvements will be in headers and cats'. Removing any resonators and a good X-pipe will probably be a good idea, too, just like they are for SS and V6 models.
Chuck, are you getting a ZL1 for sure?
Z_Rocks is offline   Reply With Quote
Old 11-06-2011, 09:20 AM   #6
The Stig
knows 2 facts about ducks

The Stig's Avatar

Drives: ...and they're both wrong
Join Date: Aug 2009
Location: The HMS Invincible
Posts: 26,690
Quote:
Originally Posted by paul2010 View Post
I was advised by Lingenfelter that headers were a bad idea for the ZL1. They said they can make 700+ with just a cam, heads... No headers.
Hmm I wonder why they recommend not getting LT headers.
__________________
Click to view my build thread
The Stig is offline   Reply With Quote
Old 11-06-2011, 10:51 AM   #7
IOMZL1


IOMZL1's Avatar

Drives: 1991 Z28; 2008 SRT 10 Viper Coupe
Join Date: Aug 2011
Location: Indianapolis
Posts: 913
Probably because there are more cost effective HP gains to be had on a FI engine or the engine doesn't respond well to LT headers?
__________________


Quick to judge, quick to anger, slow to understand. Ignorance, prejudice, and fear walk hand in hand...

http://dougshelbyengineering.com/Viper.html
IOMZL1 is offline   Reply With Quote
Old 11-06-2011, 12:13 PM   #8
radz28
Petro-sexual

radz28's Avatar

Drives: Ultra-Grin
Join Date: Oct 2006
Location: Crapramento, Crapifornia
Posts: 13,040
Quote:
Originally Posted by Z_Rocks View Post
Chuck, are you getting a ZL1 for sure?
One way or another

You?

Quote:
Originally Posted by IOMZL1 View Post
Probably because there are more cost effective HP gains to be had on a FI engine or the engine doesn't respond well to LT headers?
It seems counter-intuitive, but I'm certainly no expert. I understand LS7/LA
S9 manifolds flow extremely well and it remains to be seen what improvements to ZL1 manifolds have been. I know they're stainless, but haven't seen photos up close. They look pretty srandard to me...
__________________
"...What IS true: We anticipated that this would happen - we are never finished - and yes, Ford DOES deserve to win now and then. To think that GM can come out with a car to make ford throw in the towel is simply foolhardy..." - fbodfather
radz28 is offline   Reply With Quote
Old 11-06-2011, 12:16 PM   #9
actireman

Drives: 2011 denali hd2500
Join Date: Sep 2011
Location: clarkston, mi
Posts: 187
RADZ28, what is muffler mod? Also my buddy at GM who works along side with Pratt and Miller said to me a couple of months ago that a CAI, pulley and exhaust would easily make another 75 hp. I assumed he meant LT's and cat. I was hoping to keep the mufflers because I think they are pretty neat how they open up. And besides I want to keep it sneeky fast.
actireman is offline   Reply With Quote
Old 11-06-2011, 12:20 PM   #10
Z_Rocks


Drives: a Jet :-)
Join Date: May 2009
Location: SW Florida
Posts: 1,850
Quote:
Originally Posted by radz28 View Post
One way or another

You?
I'm going to wait for 2013 for dust to settle. I'm also considering another car that is lighter (no, it's not GT500 )

I've had light & heavy cars, and for my taste, I want to stay around 3000lb or less. That's why I'm going to wait a bit longer for some new stuff showing up. Plus, I want to see how the Insurance companies are going to rate this monster (2 door, V8, Supercharged and over 500HP They're going to rape us ).
Z_Rocks is offline   Reply With Quote
Old 11-06-2011, 01:40 PM   #11
radz28
Petro-sexual

radz28's Avatar

Drives: Ultra-Grin
Join Date: Oct 2006
Location: Crapramento, Crapifornia
Posts: 13,040
Quote:
Originally Posted by actireman View Post
RADZ28, what is muffler mod? Also my buddy at GM who works along side with Pratt and Miller said to me a couple of months ago that a CAI, pulley and exhaust would easily make another 75 hp. I assumed he meant LT's and cat. I was hoping to keep the mufflers because I think they are pretty neat how they open up. And besides I want to keep it sneeky fast.
I don't have pics' at this PC, however, the NNP (or NPP - I forget which code it is...) is the same active exhaust ZL1 is getting. Unless it's different internally, there is obviously one inlet, and two outlets, one of which has the valve in it. Inside the mufflers, there is a perforated pipe that comes off the inlet pipe and there are baffles, chambers, and packing. That perforated pipe will allow sound and gas to either travel through it, or dissapate inside the chambers, baffles, and packing. When the valve is closed, the sound and gas is forced through those chambers and such, and when open, the gas is allowed through one end of the perforated pipe and then out the other and then through the exhaust valve in the tip. Some of that exhaust and sound is still disipated through the perforations, however, a fair amount goes straight through (I imagine).

What the 'Vette guys have been doing is, is either cut the perforated pipe out and replace it with a solid pipe, or, throwing a couple band clamps around the perforated pipe. Then they have the mufflers welded up, and have pretty much straight-through mufflers with the valves open. Some guys also do either a fuse pull to keep the valves open all the time or buy controllers that allow them to control them from inside the car.

I'll try to remember to post a few pics' of the mods' I've found. They aren't difficult to find on the 'net, but I also had some pics' in another thread in this Section. I don't recall the topic, though, but I imagine searching for NPP or NNP will probably get you into that thread.

As far as mods', there is a company that I'm not going to post that works on Cadillacs for Cadillac and they have many mods' for LSA in CTS-V, and they should work directly on ZL1. They're getting something near 800 horse, I believe, on LSA through the 1900; that's pushing 19 psi, a complete ported SC, heads, cam, and supporting I/C, fuel, and exhaust mods', too. It'd be nice if they would come over as a Sponsor so I could share, but, you can search, too I know I'll be looking at pullies and some other stealth mods' so I don't get The Man mad at me I think I have a target on my back, lol. You gotta' pay to play!!!

Quote:
Originally Posted by Z_Rocks View Post
I'm going to wait for 2013 for dust to settle. I'm also considering another car that is lighter (no, it's not GT500 )

I've had light & heavy cars, and for my taste, I want to stay around 3000lb or less. That's why I'm going to wait a bit longer for some new stuff showing up. Plus, I want to see how the Insurance companies are going to rate this monster (2 door, V8, Supercharged and over 500HP They're going to rape us ).
AH!!! Yeah - for me - it's not because of choice, however, I am hoping they'll send the 5th Generation chassis out with a bang That's a good point about insurance though. I'm going to be leaving mine for weekends and fun only - no DD'ing
__________________
"...What IS true: We anticipated that this would happen - we are never finished - and yes, Ford DOES deserve to win now and then. To think that GM can come out with a car to make ford throw in the towel is simply foolhardy..." - fbodfather
radz28 is offline   Reply With Quote
Old 11-07-2011, 09:23 AM   #12
radz28
Petro-sexual

radz28's Avatar

Drives: Ultra-Grin
Join Date: Oct 2006
Location: Crapramento, Crapifornia
Posts: 13,040

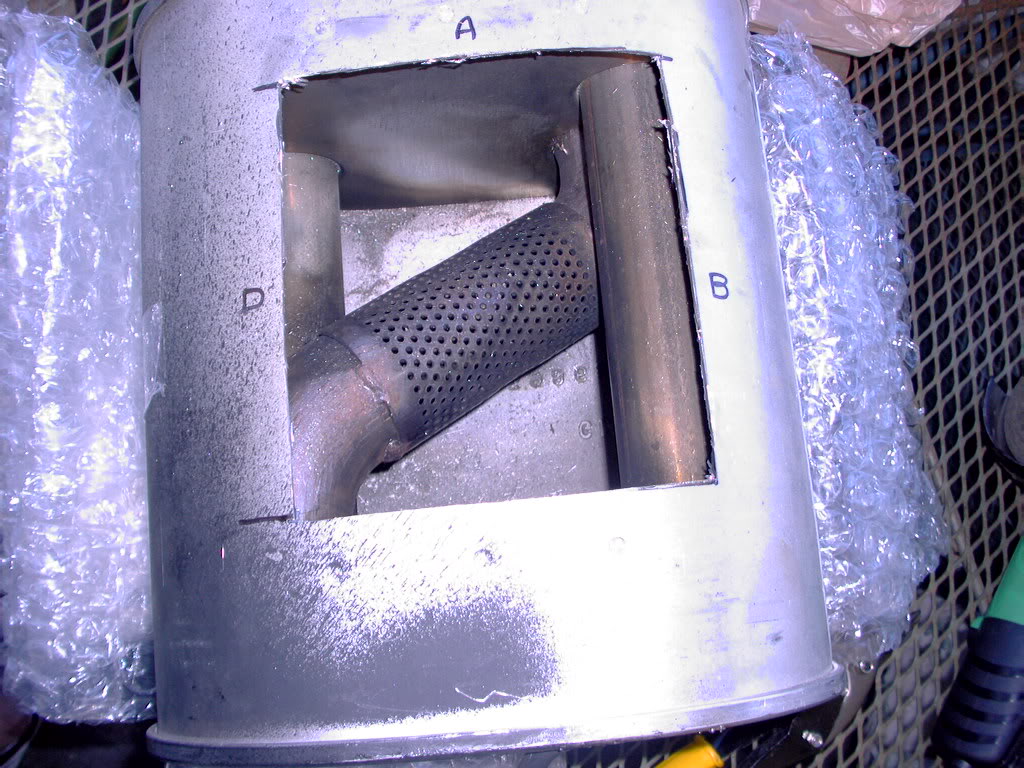

Here are a few, and "THANKS!!!" Dragoneye for some of these, too!!!
Attached Images

__________________
"...What IS true: We anticipated that this would happen - we are never finished - and yes, Ford DOES deserve to win now and then. To think that GM can come out with a car to make ford throw in the towel is simply foolhardy..." - fbodfather
radz28 is offline   Reply With Quote
Old 11-07-2011, 08:38 PM   #13
actireman

Drives: 2011 denali hd2500
Join Date: Sep 2011
Location: clarkston, mi
Posts: 187
Thanks guys, that was perfect, now I understand.
actireman is offline   Reply With Quote
Old 11-07-2011, 08:50 PM   #14
RocketCutlass
Property USMC

RocketCutlass's Avatar

Drives: 95 Caprice 9C1
Join Date: May 2009
Location: Camp Lejeune
Posts: 477
I personally wouldn't do the band clamp thing. If for some odd reason they loosened up you would get all kinds of rattling from the muffler. Weld the pipe in there, close it up, and forget about it.
RocketCutlass is offline   Reply With Quote
Old 11-07-2011, 08:56 PM   #15
Juiced1
JUICED MOTORSPORTS


Juiced1's Avatar

Drives: 2012 2SS CAMARO 45th
Join Date: Apr 2011
Location: IL
Posts: 10,688
Quote:
Originally Posted by stieger View Post
Hmm I wonder why they recommend not getting LT headers.
Probably so they can sell him a cam package they can make more money on. The LSA is a supercharged beast. Adding a set of headers will probably add 50rwhp
__________________
Get more Power per Dollar!!!! We carry all the hot new products for your 5th gen! CAI, Roto-Fab, Solo, Corsa, MBRP, ARH, Stainless Works, MRT, SLP, Procharger, Whipple, BMR, Diablosport, Superchips, Street Scene, VFN Fiberglass and much more. Contact us for your Camaro5 discount today!
Call us at 224-63-JUICE - 224-400-5793
Juiced1 is offline   Reply With Quote
Old 11-07-2011, 09:53 PM   #16
paul2010


paul2010's Avatar

Drives: 2012 ZL1 #1278
Join Date: Aug 2009
Location: Indiana
Posts: 1,218
Quote:
Originally Posted by Juiced1 View Post
Probably so they can sell him a cam package they can make more money on. The LSA is a supercharged beast. Adding a set of headers will probably add 50rwhp
I already have a camaro to race with built by them with every available extra power option. Actually the package that they offer for a very reasonable price with ported heads, cam, pulley and tuned right will make the ZL1 well over 700hp. At that level 50 more hp for around 2k for the headers and a little for labor is just not worth the added cost. The other thing is I really like my 2010 with headers but it is almost too loud. Not gonna be good for my ZL1.
__________________
2012 ZL1 #1278

2010 2nd Place Fastest 4 5th Gen LSX Shootout
2011 2nd Place Fastest 4 5th Gen LSX Shootout
paul2010 is offline   Reply With Quote
Old 03-05-2012, 03:56 PM   #17
Unobtainium
Fabricator

Unobtainium's Avatar

Drives: 2011 2SS Summit White
Join Date: Jun 2011
Location: Langdon, AB
Posts: 492
Headers on a s/c car are not great value. At or near stock power levels, the gains are minimal vs cost. A pulley change is way cheaper and easier. The GT500's have gone through the same thing for years. I've seen very little gain until they are wound-up pretty good, like 600whp good. Then, you see about 20-30whp over factory manifolds. The big benefit is that they lower boost for the same power, and sound better.
__________________
Roto-fab CAI
Unobtainium Welding Exhaust
ARH LT's
393whp L99
GPI VVT Turbo Cam-in
Twin Mini's...soon
Permagrin...Always
Unobtainium is offline   Reply With Quote
Old 03-05-2012, 09:27 PM   #18
ADM PERFORMANCE


Drives: 2013 ZL1 #138
Join Date: Oct 2008
Location: DfW - Texas
Posts: 3,822
Quote:
Originally Posted by Juiced1 View Post
Probably so they can sell him a cam package they can make more money on. The LSA is a supercharged beast. Adding a set of headers will probably add 50rwhp

NOPE
ADM PERFORMANCE is offline   Reply With Quote
Old 03-05-2012, 09:43 PM   #19
radz28
Petro-sexual

radz28's Avatar

Drives: Ultra-Grin
Join Date: Oct 2006
Location: Crapramento, Crapifornia
Posts: 13,040
They didn't on CTS-V...

I'll be pecking at low- hanging fruit, like shorties, X-pipe, and maybe those tight bends just fore of the mufflers. I have to appear smog-legal, FWIW...
__________________
"...What IS true: We anticipated that this would happen - we are never finished - and yes, Ford DOES deserve to win now and then. To think that GM can come out with a car to make ford throw in the towel is simply foolhardy..." - fbodfather
radz28 is offline   Reply With Quote
Old 03-24-2012, 10:59 PM   #20
2012ZL1
CaRaHoLiC

2012ZL1's Avatar

Drives: '12 ZL1,67 Cam,68 Biscayne 427 4 sp
Join Date: Aug 2011
Location: B.C. Canada
Posts: 1,701
Kinda wondering why people are saying headers don't make power on a supercharged engine.
Boost is made in the intake manifold not the exhaust. The scavenging affect of headers may draw some pressure out during overlap, but the backpressure that creates more boost costs hp.
Long tube headers will need a tune to optimize the benefits of better flow, but they are definately not going to lose power over a set of manifolds, that is just ridiculous.
LT's will make more power even if boost is dropped slightly by scavenging. This can be countered with a pully up, with even more hp without increasing boost from stock.
Add in a tune to richen up the leaner environment and there is more power at your disposal.
Headers are ALWAYS better than manifolds for more power, cooler temps, and better sound, there's just some extra stuff to do to realise the full impact of the gains possible.
__________________
2012 ZL1
2.55 upper, 10" lower pullies, Innovators west billet hub and sfi balancer, solid blower drive isolator, 50 mm idler kit, full length S/S headers no cats, comp cams custom grind cam, comp roller rocker trunion kit, comp push rods,dual valve springs retainers and locks, Injector dynamics ID850 inectors, Rotofab ZL1 cold air kit, Lingenfelter 160 thermostat, Rotofab intercooler reservoir, stock plugs, LS7 90mm throttle body, GTO clutch reservoir mod, my own custom catch can, Tuning by Jannetty, install by me.
2012ZL1 is offline   Reply With Quote
Old 03-26-2012, 09:11 AM   #21
radz28
Petro-sexual

radz28's Avatar

Drives: Ultra-Grin
Join Date: Oct 2006
Location: Crapramento, Crapifornia
Posts: 13,040
Quote:
Originally Posted by 2012ZL1 View Post
Kinda wondering why people are saying headers don't make power on a supercharged engine.
Boost is made in the intake manifold not the exhaust. The scavenging affect of headers may draw some pressure out during overlap, but the backpressure that creates more boost costs hp.
Long tube headers will need a tune to optimize the benefits of better flow, but they are definately not going to lose power over a set of manifolds, that is just ridiculous.
LT's will make more power even if boost is dropped slightly by scavenging. This can be countered with a pully up, with even more hp without increasing boost from stock.
Add in a tune to richen up the leaner environment and there is more power at your disposal.
Headers are ALWAYS better than manifolds for more power, cooler temps, and better sound, there's just some extra stuff to do to realise the full impact of the gains possible.

I've noticed comments that LTs don't help on SC'd motors more than just our Community. I've seen similar comments on last generation Cobras and ZR1s. That is obviously up to a certain power-level, but it seems up to around where the majority of these might be turned up to, that the power-to-dollar ratio is not quite as high with some of these motors.

I'd like to know, too...
__________________
"...What IS true: We anticipated that this would happen - we are never finished - and yes, Ford DOES deserve to win now and then. To think that GM can come out with a car to make ford throw in the towel is simply foolhardy..." - fbodfather
radz28 is offline   Reply With Quote
Old 03-29-2012, 12:19 PM   #22
2012ZL1
CaRaHoLiC

2012ZL1's Avatar

Drives: '12 ZL1,67 Cam,68 Biscayne 427 4 sp
Join Date: Aug 2011
Location: B.C. Canada
Posts: 1,701
Another clue to the fact that with proper application headers are better choice than other upgrades is that cam timing for blown motors generally have designed in less intake duration than exhaust duration respective to NA cams.
This is because blown motors do not need to rely on inertia to fill cylinders. The intake charge is under pressure, waiting to burst into the cylinder. The exhaust timing is generally longer duration to allow the engine to pump out the larger volume of exhaust created by the higher pressure relative to an naturally asperated exhaust charge. Some help is afforded by the overlap, but this method of gaining exh flow is at a cost to cylinder pressure and only logical purpose would be to cool the exhaust valve.
Headers have the bonus of cooler running generally speaking than manifolds, so in turn headers help with keeping temps down on the exhaust side.
Generally speaking and within reason, headers with the proper cam and more boost and fuel will help produce more power on a blown motor than a set of heads unless said original heads are extremely restricted.

Blower motors are more immune to head mods at least on the intake side, because if you are forcing the charge in under pressure, port design has little effect on volume within a reasonable range.

If you want to do anything to heads, port the exhaust as big as possible and as straight as possible with as large a valve as possible, with springs to match the cam.

I would spend the money on these other mods WELL in advance of spending money on heads.
__________________
2012 ZL1
2.55 upper, 10" lower pullies, Innovators west billet hub and sfi balancer, solid blower drive isolator, 50 mm idler kit, full length S/S headers no cats, comp cams custom grind cam, comp roller rocker trunion kit, comp push rods,dual valve springs retainers and locks, Injector dynamics ID850 inectors, Rotofab ZL1 cold air kit, Lingenfelter 160 thermostat, Rotofab intercooler reservoir, stock plugs, LS7 90mm throttle body, GTO clutch reservoir mod, my own custom catch can, Tuning by Jannetty, install by me.
2012ZL1 is offline   Reply With Quote
Old 04-01-2012, 03:48 PM   #23
Gene Culley



Gene Culley's Avatar

Drives: 2010 Inferno Orange Metallic 2SS/RS
Join Date: Dec 2009
Location: Boyertown, PA
Posts: 1,386
Smile

FYI the cat-back is the 2 1/2". I have one at the shop and am going to install it in my SS shortly.
__________________
Founder Of GM Parts House

Home Of The Camaro Parts And GM Parts Specialist
Please Visit GM Parts House Online or Call 484.949.2099.
Gene Culley is offline   Reply With Quote
Old 04-08-2012, 10:42 AM   #24
radz28
Petro-sexual

radz28's Avatar

Drives: Ultra-Grin
Join Date: Oct 2006
Location: Crapramento, Crapifornia
Posts: 13,040
It's 2.5" stock?

Thanks
__________________
"...What IS true: We anticipated that this would happen - we are never finished - and yes, Ford DOES deserve to win now and then. To think that GM can come out with a car to make ford throw in the towel is simply foolhardy..." - fbodfather
radz28 is offline   Reply With Quote
Old 04-14-2012, 11:33 AM   #25
Unobtainium
Fabricator

Unobtainium's Avatar

Drives: 2011 2SS Summit White
Join Date: Jun 2011
Location: Langdon, AB
Posts: 492
Well 3" is an easy upgrade. Won't give much power, but most cat backs don't.
Just was involved with a GTR build that made 650whp. Changing the cat back from factory was worth 8whp on one run, but couldn't be repeated. All others showed 0-2 whp better. Exhaust is mostly for sound and weight on these FI cars.
The factory dual-mode is cool, but heavy.
__________________
Roto-fab CAI
Unobtainium Welding Exhaust
ARH LT's
393whp L99
GPI VVT Turbo Cam-in
Twin Mini's...soon
Permagrin...Always
Unobtainium is offline   Reply With Quote

Reply

Thread Tools

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off

Forum Jump

Similar Threads
Thread Thread Starter Forum Replies Last Post
Back pressure and the camaro... SS>GT Camaro V8 LS3 / L99 Engine, Exhaust, and Bolt-Ons 80 12-03-2012 03:39 PM
RATING HEADERS??? SAUCE Camaro V8 LS3 / L99 Engine, Exhaust, and Bolt-Ons 20 12-02-2011 08:21 PM
NEW Official Details on Camaro ZL1 -- 580hp / 556 lb-ft torque!! DarthNacho08 Camaro ZL1 Forum - ZL1 Specific Topics 421 09-27-2011 04:17 PM
Thinking about going 2.5" the entire System mike.nite Camaro V6 LLT Engine, Exhaust, and Bolt-Ons 12 01-11-2011 03:57 PM
EXHAUST Milk 1027 Wiki 2 03-07-2010 09:20 PM


All times are GMT -5. The time now is 08:35 AM.


Powered by vBulletin® Version 3.8.7
Copyright ©2000 - 2014, vBulletin Solutions, Inc.
