How to make the Fogs come on with headlights

On a non-RS Camaro, does anyone know how to make it so that the Fog Lights will come on everytime the headlights come on? I know you can push the fog light button but then when you turn off the car the fog lights don't come back on with the headlights. I would like it so that the they come on everytime and don't get reset when you turn the car off.
__________________
-2010 Camaro 2SS | M6 | VR w/White Stripes | 1 3/4" KOOKS - 3" Magnaflow | LPE 3.91 gears | ADM tuned | Halltech w/ADM Scoop | Spohn/BMR Trailing Arm/Toe Rod | BC Coilovers| Pedders FE4 ZL1 swaybars | Cradle/Diff/Radius Rod bushings | VMax TB | Morimoto Projectors | MGW shifter | Red Calipers
Build Journal
caverman is offline   Reply With Quote
Old 09-15-2009, 02:09 PM   #2
zebra
just can't seem to leave

zebra's Avatar

Drives: your mom wild!!
Join Date: Oct 2008
Location: cold & windy
Posts: 11,589
i reckon you could put a diode between the two in the wiring under the dash
__________________
zebra is offline   Reply With Quote
Old 09-25-2009, 04:03 PM   #3
matteo

Drives: '10 IBM 2SS, '01 Black SS
Join Date: Jun 2009
Location: AZ
Posts: 75
I'm wondering the same thing. Is there a mode you can put the fog lights in so that they come on automatically with the headlights?
matteo is offline   Reply With Quote
Old 07-31-2010, 10:42 PM   #4
jroc7

Drives: *
Join Date: May 2010
Location: *
Posts: 93
Can I make a request that people NOT run their fog lights with their headlights. I'm tired of being blinded at night for no reason. It doesn't look cool, it just looks like you don't know the difference between a fog light and a headlight.
jroc7 is offline   Reply With Quote
Old 08-06-2010, 01:32 AM   #5
SILVER BULLITT


SILVER BULLITT's Avatar

Drives: 2010 SIM 2SS/RS MONSTER
Join Date: Aug 2009
Location: LOS ANGELES
Posts: 1,513
not too sure what a diodes gonna do
__________________
HP MONSTER' SOUTHERN CALIFORNIA BUILT, LMR CAI, CUSTOM GRIND CAM, CUSTOM BUILT CNC PORTED AND POLISHED HEADS, FAST 102MM INTAKE MANIFOLD,ARH LONG TUBES AND HIGH FLOW CATS, BIGGER INJECTORS, VALVES SPRINGS RETAINERS, MGW SHORT SHIFTER, EIBACH SPRINGS, FACTORY CHROMED WHEELS, BLACKED OUT EMBLEMS, BLACKED OUT ROOF,BLACKED OUT MARKERS, 3.5 INCH ELECTRONIC CUTOUTS, FLOWMASTERS, ZEX WET 150 SHOT, FOR A GRAND TOTAL OF =630 REAR WHEEL TORQUE ,AND 600 REAR WHEEL HORSEPOWER
MY JOURNALhttp://www.camaro5.com/forums/showth...02#post2023802 SOON TWIN TURBO SETUP
SILVER BULLITT is offline   Reply With Quote
Old 09-29-2010, 06:24 PM   #6
calbert1999
Camaro SS Lover

calbert1999's Avatar

Drives: 2010 Camaro 2SS/RS Black IOM
Join Date: Jun 2010
Location: Toronto, Ontario (Canada)
Posts: 2,852
I'm still looking for the button that turns on the fog lights while your headlights are on. I'd be happy with that. Where's this fog light button everybody keeps talking about?
calbert1999 is offline   Reply With Quote
Old 09-29-2010, 06:48 PM   #7
Primus
2G1FF1EV0A9113319

Primus's Avatar

Drives: 2010 1LT/RS 6MT
Join Date: Oct 2008
Location: St. Louis, MO
Posts: 1,139
non-RS
__________________
2010 Camaro 1LT/RS M6 Black
1100: 10/13/2008
2000: 4/02/2009
3000: 4/08/2009
3300: 5/14/2009
3400: 5/21/2009
3800: 5/28/2009 VIN: 2G1FF1EV0A9113319
4000: 5/28/2009
4150: 5/28/2009
4B00: 5/28/2009

Delivered: 6/10/2009
Primus is offline   Reply With Quote
Old 09-29-2010, 07:56 PM   #8
winston2ss
YDLYLB

winston2ss's Avatar

Drives: Cgm 2ssrs
Join Date: May 2010
Location: bossier city la.
Posts: 1,166
Quote:
Originally Posted by calbert1999 View Post
I'm still looking for the button that turns on the fog lights while your headlights are on. I'd be happy with that. Where's this fog light button everybody keeps talking about?
You can't do it with an RS.
__________________
winston2ss is offline   Reply With Quote
Old 09-29-2010, 10:27 PM   #9
zebra
just can't seem to leave

zebra's Avatar

Drives: your mom wild!!
Join Date: Oct 2008
Location: cold & windy
Posts: 11,589
Quote:
Originally Posted by SILVER BULLITT View Post
not too sure what a diodes gonna do
the easy explanation is that it would let the DRL circuit keep power even with the headlights on
__________________
zebra is offline   Reply With Quote
Old 10-14-2010, 08:19 PM   #10
destroyerofu2
xbox360 tag

destroyerofu2's Avatar

Drives: 2010 inferno orange 2SS
Join Date: Apr 2010
Location: elkhart indiana
Posts: 778
i did something simulare on my avalanch and will do this on my camaro. im sure i have some leftover dioeds from that

but the basic part of it is to take a dioed and heat shrink it thin in the fuse box under the hood connect the headlight fuse and the foglight fuse together with the heatshrinked dioed make sure the line on the dioed is toward the headlight fuse(this prevents feedback to the headlights)

i will do a diy on this cause i am wanting to do this myself
__________________
Quote:
Originally Posted by babytiger
And like destoryerofu2 said, WOT should be a moment of silence...
It's mine, like it or not. http://www.camaro5.com/forums/showthread.php?t=108079
destroyerofu2 is offline   Reply With Quote
Old 10-14-2010, 08:27 PM   #11
zebra
just can't seem to leave

zebra's Avatar

Drives: your mom wild!!
Join Date: Oct 2008
Location: cold & windy
Posts: 11,589
Quote:
Originally Posted by destroyerofu2 View Post
i did something simulare on my avalanch and will do this on my camaro. im sure i have some leftover dioeds from that

but the basic part of it is to take a dioed and heat shrink it thin in the fuse box under the hood connect the headlight fuse and the foglight fuse together with the heatshrinked dioed make sure the line on the dioed is toward the headlight fuse(this prevents feedback to the headlights)

i will do a diy on this cause i am wanting to do this myself
i ain't been in the fuse box of a Camaro to see what actually works, but if you can do it like on the trucks, you'll want to jump the relays instead of fuses
__________________
zebra is offline   Reply With Quote
Old 10-15-2010, 08:39 AM   #12
destroyerofu2
xbox360 tag

destroyerofu2's Avatar

Drives: 2010 inferno orange 2SS
Join Date: Apr 2010
Location: elkhart indiana
Posts: 778
Quote:
Originally Posted by zebra View Post
i ain't been in the fuse box of a Camaro to see what actually works, but if you can do it like on the trucks, you'll want to jump the relays instead of fuses

after firther review you are correct sir, under the relays

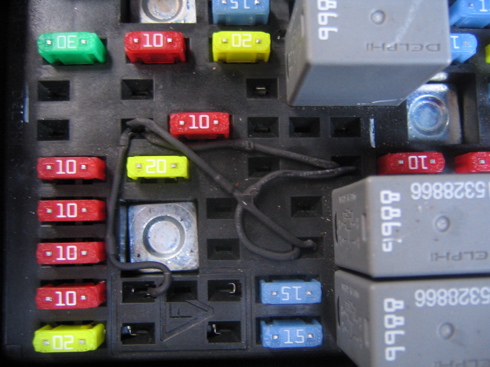

this is my avalanche fuse box without the relays installed
Name:  diode 3.jpg
Views: 2085
Size:  93.8 KB

this pick also has the all on high mod and constant day time running lights the camaro will only need one dioed in there

i will do this this weekend and post a diy on it because it drives me nuts to have to always hit that damm button at night it should only take about five min once i get under there
__________________
Quote:
Originally Posted by babytiger
And like destoryerofu2 said, WOT should be a moment of silence...
It's mine, like it or not. http://www.camaro5.com/forums/showthread.php?t=108079
destroyerofu2 is offline   Reply With Quote
Old 10-15-2010, 10:32 AM   #13
Sir Nuke
Master of All Things

Sir Nuke's Avatar

Drives: '10 2LT/RS,'14 Caddy CTS Coupe
Join Date: Jul 2009
Location: Southeast of Houston, Texas
Posts: 16,099
For those of you that chimed in that have RS's, and want something similar...you can. check out this thread. Fieldgoal00 has been making these harnesses for a while and they work flawlessly. http://www.camaro5.com/forums/showthread.php?t=95274

for you Non-RS guys.....send him a PM and ask him if he has a harness to do what you ask.
__________________

Last edited by Sir Nuke; 10-17-2010 at 01:47 AM.
Sir Nuke is offline   Reply With Quote
Old 10-17-2010, 12:23 AM   #14
Unit453

Unit453's Avatar

Drives: 2011 2SS RS
Join Date: Oct 2010
Location: Bradenton, FL
Posts: 81
Quote:
Originally Posted by destroyerofu2 View Post
after firther review you are correct sir, under the relays
this is my avalanche fuse box without the relays installed
Attachment 172944

this pick also has the all on high mod and constant day time running lights the camaro will only need one dioed in there

i will do this this weekend and post a diy on it because it drives me nuts to have to always hit that damm button at night it should only take about five min once i get under there

Coming from a Silverado Duramax, I was fishing under the hood today using diodes. Back in the day, the 85 pin to the low beam would be connected with the 85 pin of the high beams, and on to the fog lights. We'd have everything on which was bad ass.

Now, I tried a couple different configurations for this. I'd like to have full control of my fog lights #1, but two, to be able to use them when my low beams are on. Spending a hundred bucks on a harness is kind of a lot when a whole package of diodes can do the same thing for $2.

For those of us with the RS packages, there's a small fuse box with numbered pins, just like on our trucks that I used. The fog light is numbered at 50 and I used those to connect together. So far, nothing, nada.

I'm also not done with this yet. Just ran out of daylight.

This is what we've used before and worked flawlessly for years.

http://www.thetruckstop.us/forum/sho...-Headlight-Mod


The concept has gotta be the same.
__________________
2011 2SS RS - Hypertech Tuned, Vararam
Unit453 is offline   Reply With Quote
Old 10-17-2010, 04:09 PM   #15
Unit453

Unit453's Avatar

Drives: 2011 2SS RS
Join Date: Oct 2010
Location: Bradenton, FL
Posts: 81
Actually, it's not the same but the concept is telling me that it should work fine.

I tried to connect a diode from the low beam fuse to the fog light fuse and no go. In theory, it should work fine. I should try to connect a wire to give them both constant power but I'm really not a fan of DRL's to begin with.

What I'd really like to do is to disable the auto headlight sensor, just like I did on all my trucks.

I think a hundred dollar harness is kinda ridiculous when the same thing can be achieved through use of a diode.
__________________
2011 2SS RS - Hypertech Tuned, Vararam
Unit453 is offline   Reply With Quote
Old 10-17-2010, 04:31 PM   #16
orangeonwhite

orangeonwhite's Avatar

Drives: 2010 2SS/RS M6
Join Date: Jun 2010
Location: PC Socialist WA
Posts: 247
Keep working on it, all RS owners hope you get it.
__________________
------------------------------------------------
orangeonwhite is offline   Reply With Quote
Old 10-19-2010, 10:07 AM   #17
destroyerofu2
xbox360 tag

destroyerofu2's Avatar

Drives: 2010 inferno orange 2SS
Join Date: Apr 2010
Location: elkhart indiana
Posts: 778
i have it figured out but the dioeds i was using last night were wrong and were over heating going to get a new pack on way home and try

i think they are the 4001 and up dioeds
will let you know once i get them
but yes it is possable i had it hooked up last night just with the wrong dioeds
here is a drawn up picture will post actual picture when i get home and hook up
Name:  fuse wired.jpg
Views: 1599
Size:  150.2 KB
__________________
Quote:
Originally Posted by babytiger
And like destoryerofu2 said, WOT should be a moment of silence...
It's mine, like it or not. http://www.camaro5.com/forums/showthread.php?t=108079
destroyerofu2 is offline   Reply With Quote
Old 10-19-2010, 09:28 PM   #18
Jayhawk500


Jayhawk500's Avatar

Drives: 2010 Camaro SS/RS
Join Date: Apr 2009
Location: Warrenton, Or.
Posts: 955
DRL Adapter

This is what I used. Love it it's hands off.

http://www.adaptiveperformance.com/camarodrl.htm
__________________
Jayhawk500

2010 2SS/RS, Six speed, Rally Yellow w/ Black Painted Stripes, Boston Acoustic Stereo, Polished 20" wheels, Solo Mach X Catback Exhaust, Solo HF Cats, Halltech CAI, Full Dash & Door ABL, ABL Lit Homelink Buttons, HUD Installed, Ride Tunes, Fbodfather signed, VIN # 4492, PAID OFF!!!
2010 Yellow 2SS/RS with black painted Stripes...$37,000.00; Ride Tones sound system and remote...$ 40.00; Seeing the kids faces light up and almost wet their pants....Priceless!!!
Jayhawk500 is offline   Reply With Quote
Old 10-20-2010, 02:49 PM   #19
fieldgoal00
Account Suspended

Drives: 2010 Chevy Camaro 2SS/RS
Join Date: Dec 2008
Location: New Orleans
Posts: 772
My harness will do everything you want, read more about it here

http://www.camaro5.com/forums/showthread.php?t=109050

Last edited by fieldgoal00; 10-20-2010 at 03:02 PM.
fieldgoal00 is offline   Reply With Quote
Old 10-20-2010, 03:00 PM   #20
Unit453

Unit453's Avatar

Drives: 2011 2SS RS
Join Date: Oct 2010
Location: Bradenton, FL
Posts: 81
Destroyer, I tried that as well. On the HID fuse, there's 4 pins. On our old trucks, the 85 pin was the ticket to jumping it with a diode.

Which pin did you use?

I tried all the pins but none of them retained the DRL's with the low beams. Maybe the diodes were too short, I dont know.
__________________
2011 2SS RS - Hypertech Tuned, Vararam
Unit453 is offline   Reply With Quote
Old 10-27-2010, 01:29 PM   #21
destroyerofu2
xbox360 tag

destroyerofu2's Avatar

Drives: 2010 inferno orange 2SS
Join Date: Apr 2010
Location: elkhart indiana
Posts: 778
Quote:
Originally Posted by Unit453 View Post
Destroyer, I tried that as well. On the HID fuse, there's 4 pins. On our old trucks, the 85 pin was the ticket to jumping it with a diode.

Which pin did you use?

I tried all the pins but none of them retained the DRL's with the low beams. Maybe the diodes were too short, I dont know.

i did it just like my picture above same pins make sure you have a good connection at both ends
but extended use is making my dioeds over heat
I am trying to track down a good dioed to use safely
as soon as i do i'll let you guys know what to use
__________________
Quote:
Originally Posted by babytiger
And like destoryerofu2 said, WOT should be a moment of silence...
It's mine, like it or not. http://www.camaro5.com/forums/showthread.php?t=108079
destroyerofu2 is offline   Reply With Quote
Old 10-27-2010, 06:42 PM   #22
BLACK10


BLACK10's Avatar

Drives: 2010 CAMARO. 10.04@133mph, 1.4 60'
Join Date: Jul 2009
Location: Lafayette, Louisiana
Posts: 5,015
Quote:
Originally Posted by fieldgoal00 View Post
My harness will do everything you want, read more about it here

http://www.camaro5.com/forums/showthread.php?t=109050
great product
BLACK10 is offline   Reply With Quote
Old 10-27-2010, 06:45 PM   #23
weenie25banini

weenie25banini's Avatar

Drives: 2011 2LT/RS
Join Date: Sep 2010
Location: Laguna hills/Bakersfield
Posts: 245
How about an rs how do you make the fog light turn on at the same time as the headlight?
__________________
WeeniePoopie
2011 summit white 2LT/RS automatic with sun roof. Painted matte black taillight bezel. Black out tail light&revers lights. Paint to match engine cover and fuse box.
weenie25banini is offline   Reply With Quote

Reply

Thread Tools

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off

Forum Jump

Similar Threads
Thread Thread Starter Forum Replies Last Post
AAC and I finished the development of a complete turn key Halo solution for Non-RS ca CustomCarWorx Cosmetics and Lighting Modification Discussions 14 09-03-2009 07:04 PM
Does this make any sense to you Thrillz Camaro Price | Ordering | Tracking | Dealers Discussions 3 09-02-2009 06:23 AM
High Intensity headlights question(new guy) jagreb 5th Gen Camaro SS LS LT General Discussions 16 03-20-2009 04:07 PM
Toyota plant workers make case for unionization KILLER74Z28 General Automotive + Other Cars Discussion 46 03-20-2009 10:36 AM
Condensation in late 4th gen headlights? MAC 4th Generation Camaros 27 06-30-2008 01:53 PM


All times are GMT -5. The time now is 04:30 PM.


Powered by vBulletin® Version 3.8.7
Copyright ©2000 - 2014, vBulletin Solutions, Inc.
